5'15" NARDINI "FRN-60" RADIAL DRILL w/TAPPING & THREADING - PLAIN BASE - 10 HP SPINDLE - COOLANT IN BASE

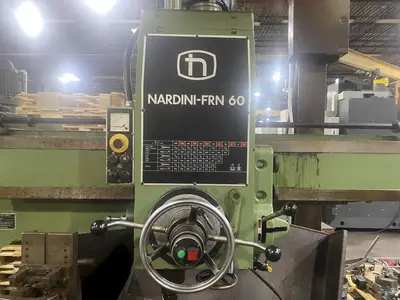

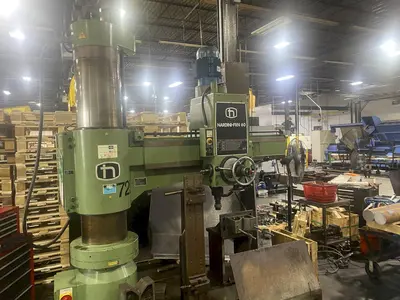

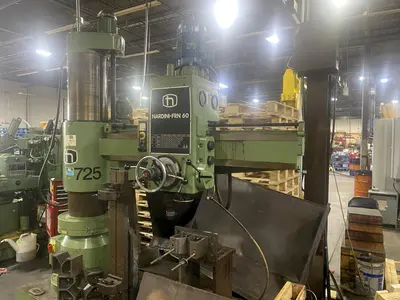

5'15" NARDINI RADIAL DRILL
Model FRN-60

EQUIPPED WITH:
Tapping/Threading Capabilities
Plain-Type Base
Power Arm Elevation
Power Clamping

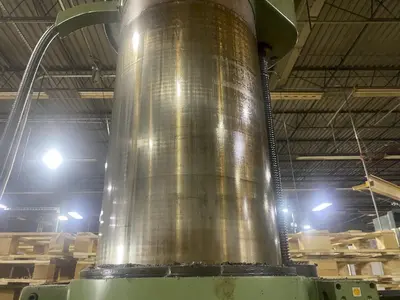

Hardened Column
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
INCH METRIC

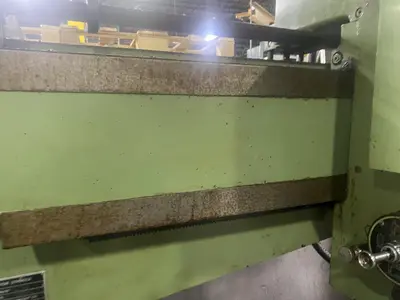

Arm Length 5'
Column Diameter 15" 380MM
Drilling Capacity, Solid Steel 2.36" 60MM
Drilling Capacity, Cast Iron 3.15" 80MM
Boring Capacity, Steel 3.94" 100MM
Boring Capacity, Cast Iron 4.72" 120MM
Tapping Capacity, Mild Steel 1.97" 50MM
Tapping Capacity. Cast Iron 2.75" 70MM
Spindle-Radius, Maximum 63" 1600MM
(12) Spindle Speeds, Range 29 to 1450 RPM
Main Motor, Horsepower 10 HP
Arm Elevating Motor, Horsepower 2 HP

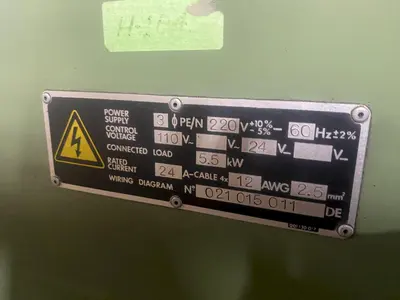

Electrical System 220/3/60
F.O.B. OUR WAREHOUSE
