42" BLANCHARD "18-42" EXTRA-HIGH VERTICAL SPINDLE ROTARY SURFACE GRINDER w/SEGMENTED WHEEL - 40 HP MOTOR -
Have one to sell?
$17,500.00 USD
ConditionUsed
1 available

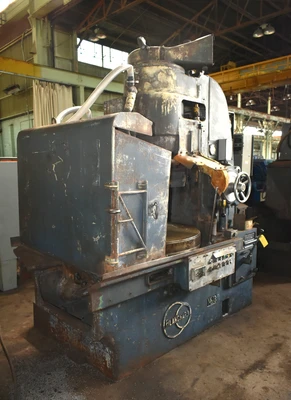

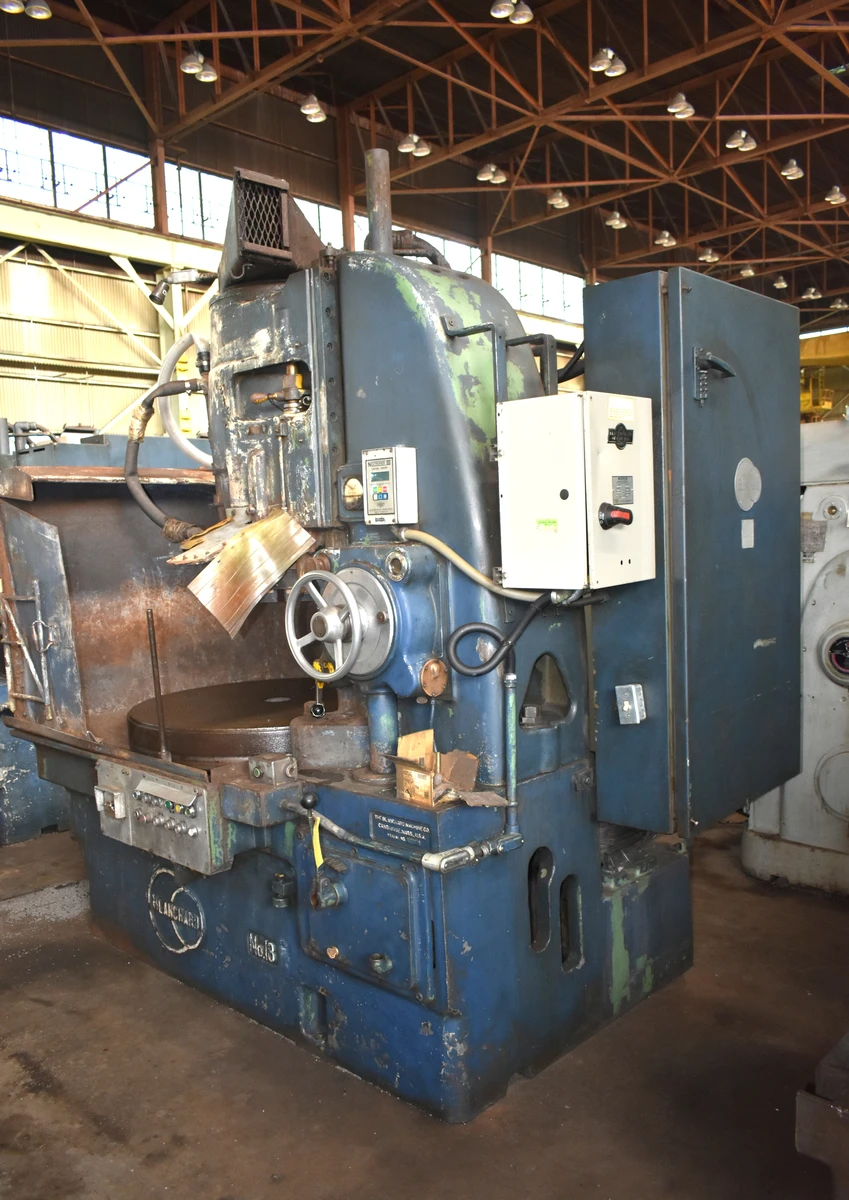

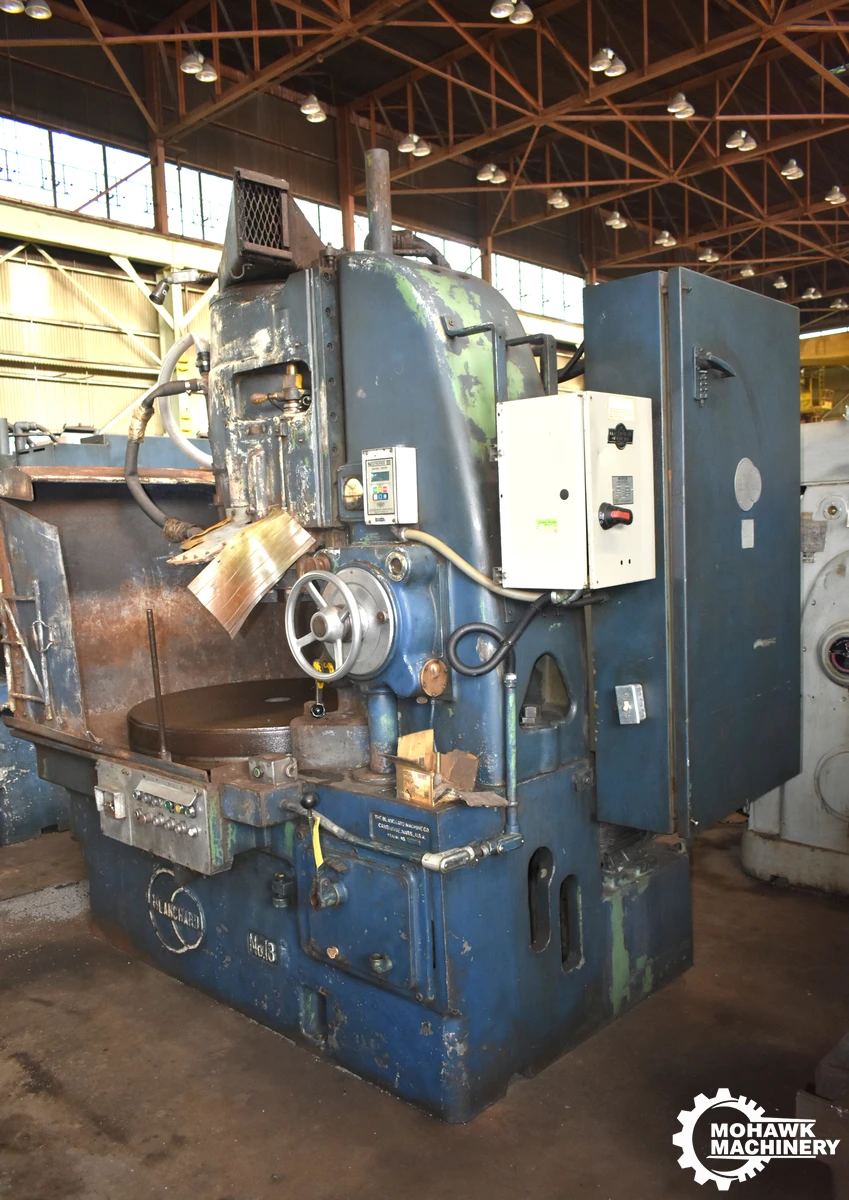

42" BLANCHARD EXTRA-HIGH
VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 103140, Model 18-42
15" Height Under Wheel
Vertical Spindle Machine Design
42" Diameter Magnetic Chuck w/Electro-Matic
Neutrofier III Magnetic Control
Segmented Grinding Wheel
40 HP Spindle Motor - Load Meter
Coolant System (Built-In)
Magnetic Chuck, Diameter 42"
Magnetic Chuck Face, Diameter 42"
Swing Between Coolant-Guards 48"
Magnetic Chuck Work Load Capacity 2000 LBS
Height Under Grinding Wheel, Maximum 15"
(6) Chuck Speeds, Range 6 to 33 RPM
(20) Power Down Feeds, Range .004 to .080 IPM
Motor Horsepower 40 HP
Chuck Rotation Motor Horsepower 3 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 9'9" x 5'5"
Overall Height 8'2"
Weight, Approximately 13900 LBS
F.O.B. OUR WAREHOUSE
