205-12 CINCINNATI-MILACRON "CINOVA 80" VERTICAL MILL w/TURRET DEPTH STOPS - HOUR METER - COOLANT SYSTEM - 5 HP SPINDLE
Have one to sell?
$7,950.00 USD
ConditionUsed
1 available

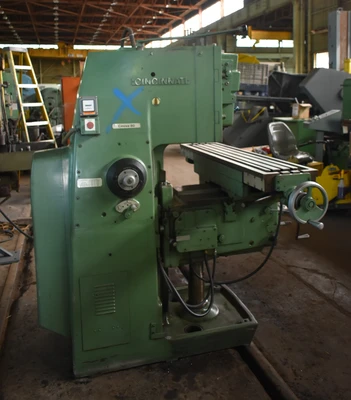

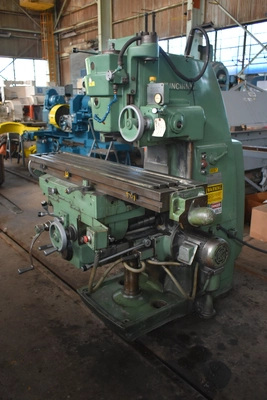

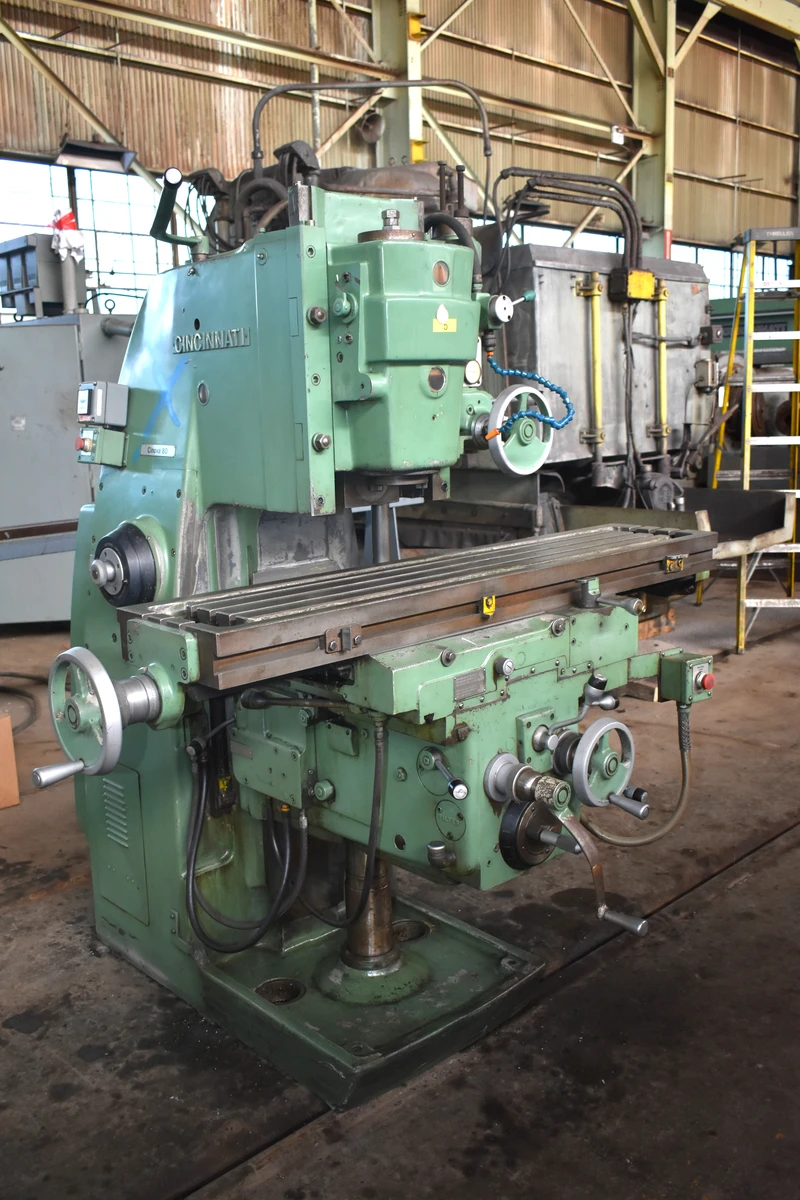

205-12 CINCINNATI-MILACRON "CINOVA 80" VERTICAL MILL
Serial No 31422P74-0001, Model 205-12, Series Cinova 80, Ltr DH
Knee Motor - Hour Meter
Power Down-Feed to Head
Vertical Turret Stops (4-Position) w/Starrett Gauging
Coolant System (Built-In)
Table Dimensions, L x W 56.5" x 12"
Table Longitudinal Travel (X-Axis) 28"
Saddle Cross Travel (Y-Axis) 10"
Knee Vertical Travel (Z-Axis) 14"
Spindle-Head Vertical Travel (Z-Axis) 4"
Spindle-Nose to Table, Maximum 18"
Spindle-Nose, Diameter 5.06"
Spindle Taper #50 NSTD
(24) Spindle Speeds, Range 25 to 2000 RPM
(24) Longitudinal and Cross Feeds 1/4 to 30 IPM
(24) Vertical Head Feeds, Range 1/8 to 15 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 75 IPM
Spindle Motor, Horsepower/RPM 5 HP
Feed Motor, Horsepower 1.25 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 8'1" x 7'4"
Overall Height 7'2"
Weight, Approximately 5600 LBS
F.O.B. OUR WAREHOUSE
