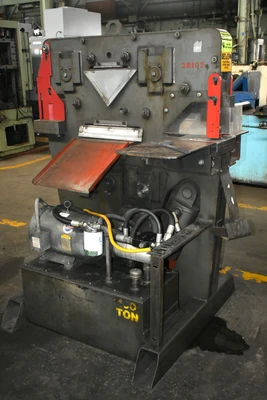

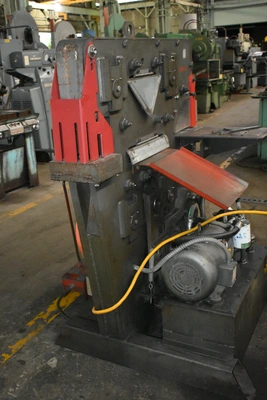

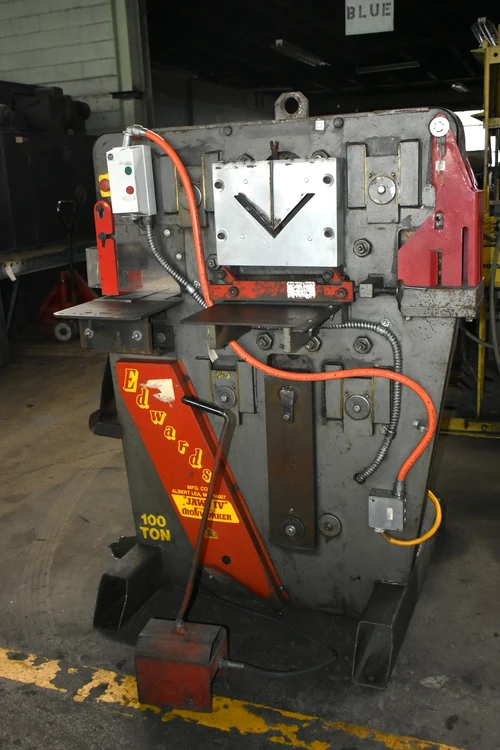

100 TON EDWARDS "IW-100” JAWS IV HYDRAULIC IRONWORKER w/PUNCH - BAR SHEAR - ANGLE SHEAR - COPER NOTCHER - FOOT PEDAL - 7.5 HP MOTOR

100 TON EDWARDS "JAW IV" HYDRAULIC IRONWORKER
Serial No 031410094, Model IW-100, Series JAWS IV

EQUIPPED WITH:
Punch - Bar Shear - Angle Shear - Coper Notcher
Full Control Foot Pedal

CATALOG SPECIFICATIONS:

PUNCHING:
Tonnage Capacity, Punch End 100 TON
Throat Depth 10"
Stroke Length 1-1/2"
Open Height 8-1/4"
Shut Height 6-3/4"
Punching Capacity thru 1" Plate 1-1/4"

FLAT BAR SHEARING:
Shearing Capacity thru 1" Plate, Flat Bars 10"
Shearing Capacity thru 3/4" Plate, Flat Bars 14"

ANGLE SHEARING:
Shearing Capacity, 90-Degrees 6" x 6" x 1/2"

BAR SHEARING:
Shearing Capacity, Round Bars 1-1/2"
Shearing Capacity, Square Bars 1-1/2" x 1-1/2"

COPER NOTCHER:
Cope Notch Capacity 2-1/2" x 5" x 1/2"
Motor Horsepower 7.5 HP
Electrical System 208-230/460/3/60
Overall Dimensions, L x W 44" x 48"
Overall Height 67"
Weight, Approximately 3250 LBS
REPLACEMENT PRICE: Is Approximately $32,600.00
F.O.B. OUR WAREHOUSE
