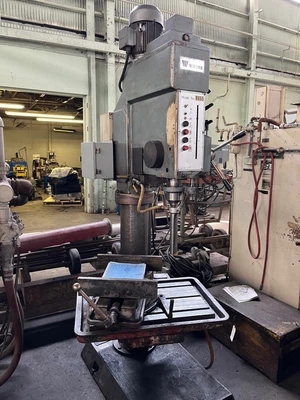

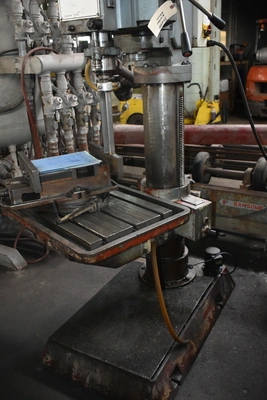

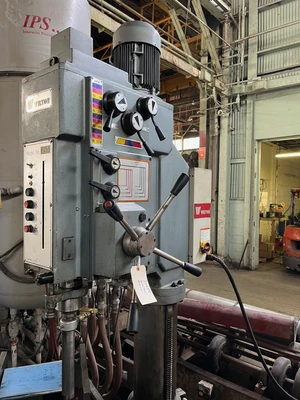

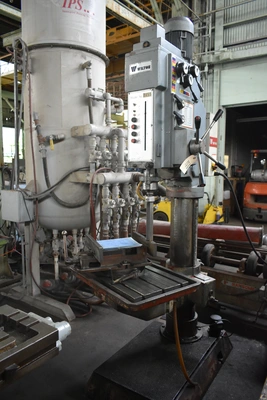

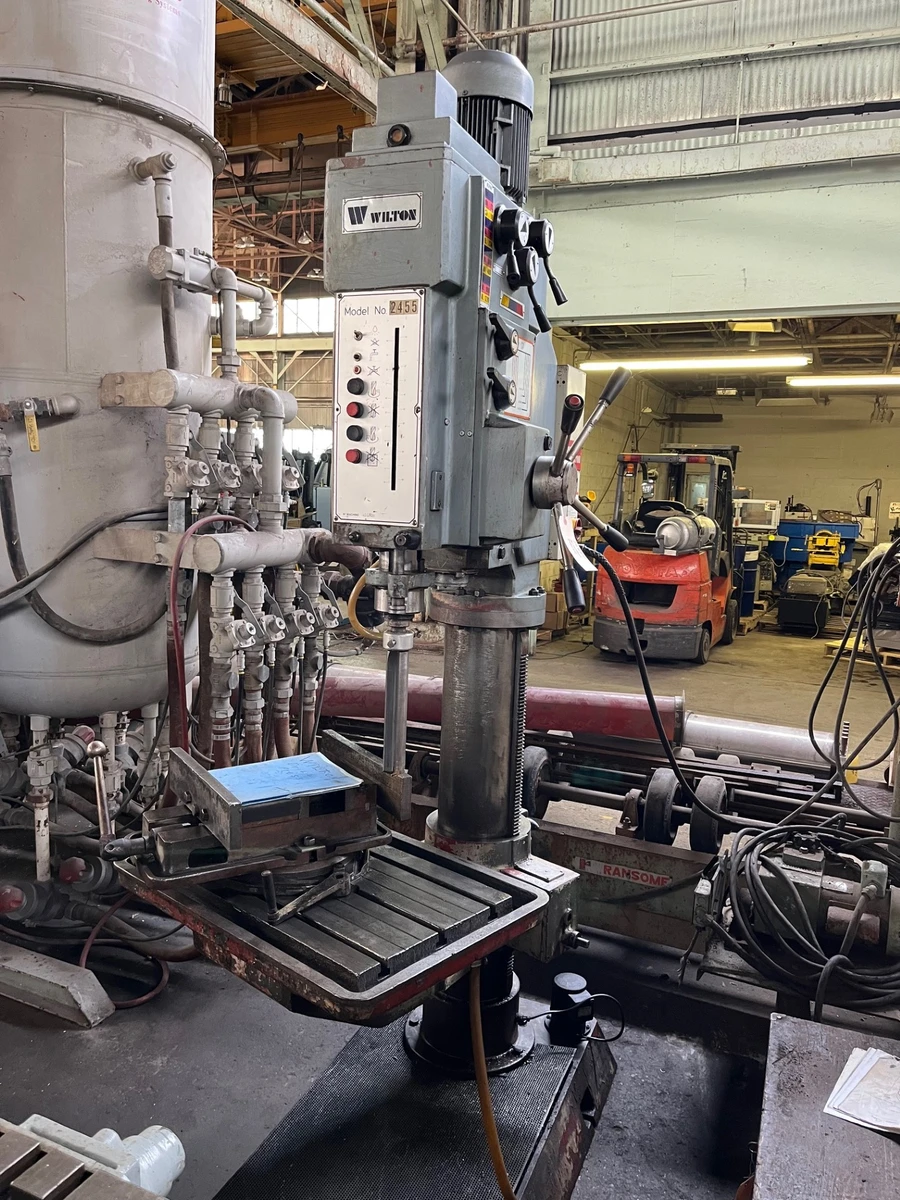

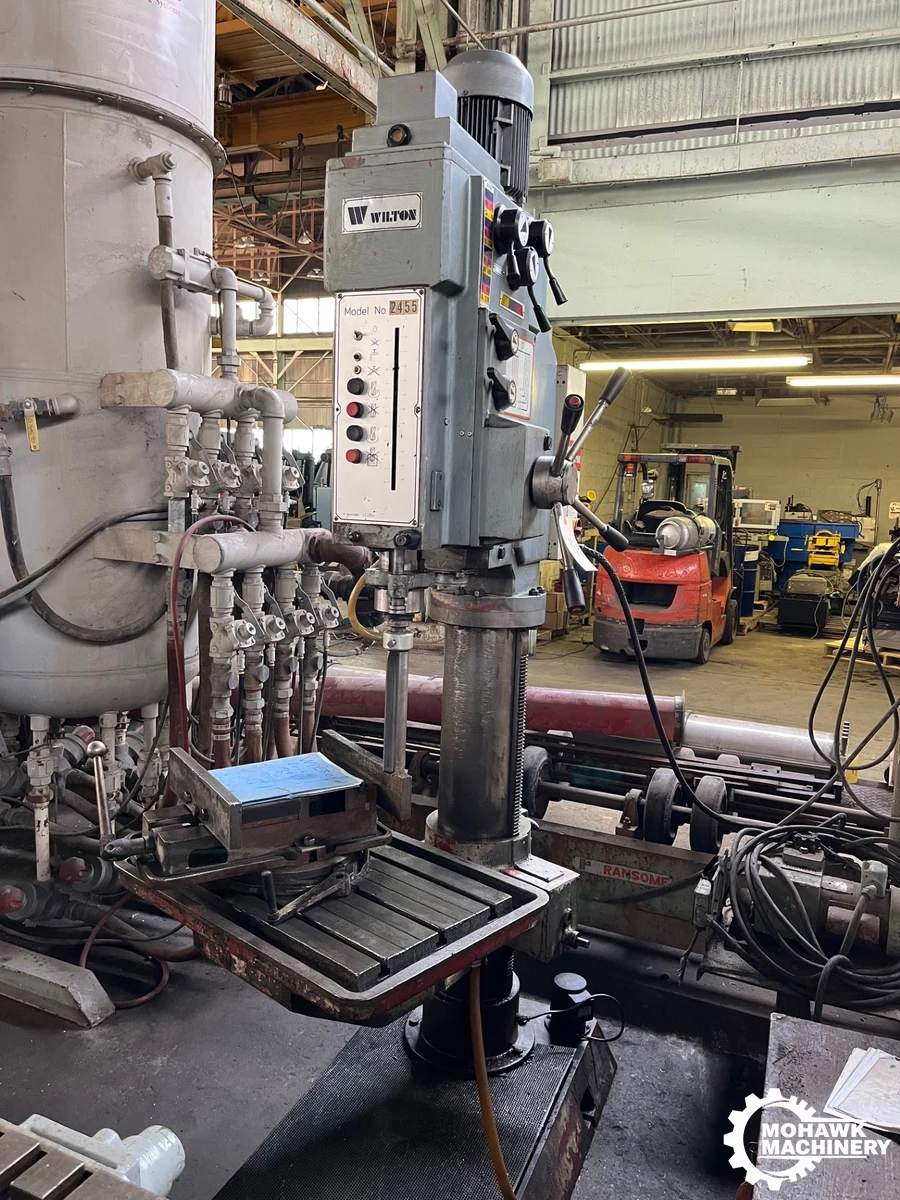

33" WILTON "2455" HEAVY-DUTY DIRECT-DRIVE DRILL PRESS w/ELECTRO-MAGNETIC CLUTCH - HEAVY-DUTY VISE - 5 MT - 5.5 HP

33" WILTON DIRECT DRIVE SINGLE-SPINDLE
DRILL PRESS w/ELECTRO-MAGNETIC CLUTCH - VISE
Serial No 498/456, Model 2445

EQUIPPED WITH:
Power Feed Gear Box w/Electro-Magnetic Clutch
Direct Drive - Round Column
Power Feed Gear Box to Spindle
T-Slotted Work Table
Hand Wheel For Fine Feed
Heavy-Duty Vise

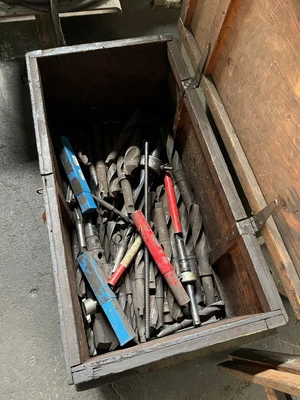

Box Of Tooling
Coolant System (Built-In Base)

CATALOG SPECIFICATIONS:
Swing Diameter 33"
Drilling Capacity, Steel 2.375"
Tapping Capacity, Steel 2"
Table Load Capacity 750 LBS
Spindle Travel, Power 10"
Spindle-Nose to Table, Maximum 30.5"
Spindle-Nose to Table, Minimum 2.95"
Spindle-Nose to Base, Maximum 51"
Spindle-Center to Column 16.5"
Work Table Dimensions, L x W 33.5" x 23.5"
Spindle Taper #5 MT
(12) Spindle Speeds, Range 48 to 1278 RPM
(4) Spindle Feeds, Range .0039 to .0196 IPR
Spindle Motor Horsepower 5.5 HP
Overall Dimensions, L x W 3'11" x 2'5"
Overall Height 101"
Weight, Approximately 2293 LBS
F.O.B. OUR WAREHOUSE
