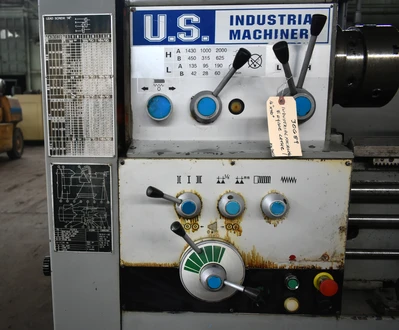

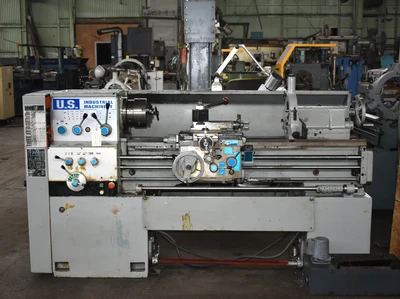

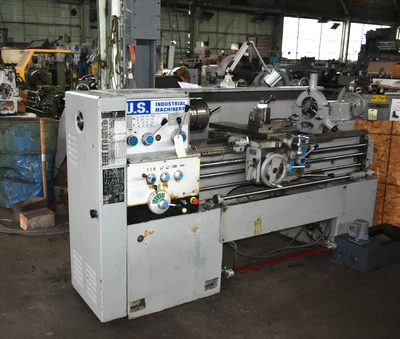

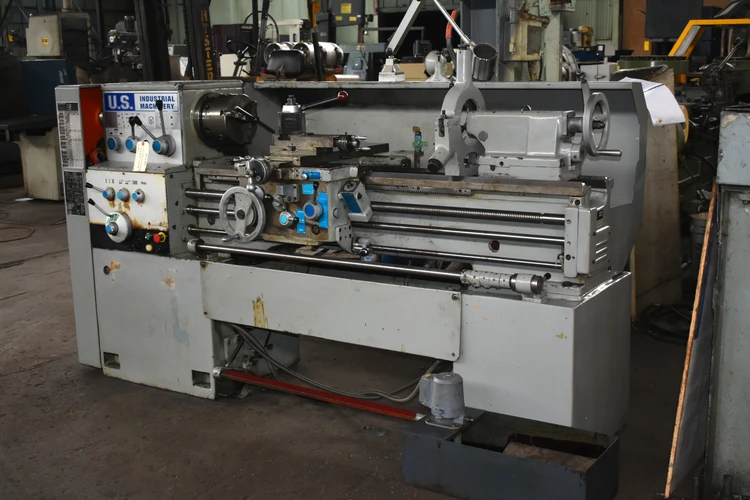

14/21" X 40" U.S. INDUSTRIAL MACHINERY "C6236" GEARED-HEAD GAP-TYPE ENGINE LATHE w/INCH/METRIC THREADING - 3-JAW CHUCK - STEADY REST - FOLLOW REST

Hole Thru Spindle 2" 52MM

Swing Over Bed Ways 14" 360MM

Swing Thru Gap 21" 540MM

Swing Over Cross-Slide 7.5" 190MM

Distance Between Centers 40" 1000MM

(12) Spindle Speeds, Range 28 to 2000 RPM

Longitudinal Feeds, Range .0015 to .0267 MMPR

Longitudinal Feeds, Range .0038 to .499 IPR

Cross Feeds, Range .006 to .0155 MMPR

Cross Feeds, Range .017 to .225 IPR

Metric Threads, Range .5 to 6.5 MMPR

(27) Thread Changes, Range 4 to 48 TPI

(11) Module Threads, Range .5 to 3.25 MP

(18) Pitch, Range 8 to 52 DP

Tailstock Quill Diameter 2.5" 65MM

Tailstock Quill Travel 5.1" 130MM

Tailstock Quill Taper #4 MT

Overall Dimensions, L x W 92.5" x 38"

Overall Height 49"

Weight Approximately 2900 LBS

F.O.B. OUR WAREHOUSE
