16" SWISHER/UVT "AUTO-CYCLE" PRECISION VERTICAL SPINDLE ROTARY SURFACE GRINDER w/ALLEN BRADLEY PLC CONTROL - VARIABLE SPEED SPINDLE - COOLANT SYSTEM
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available

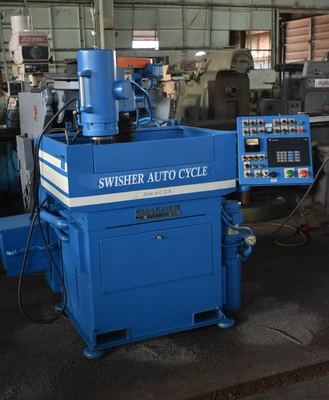

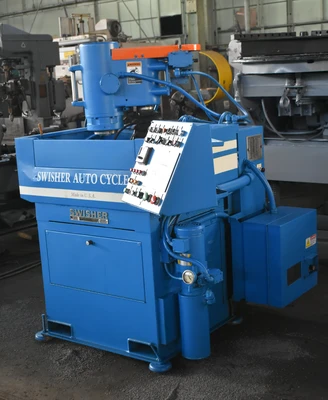

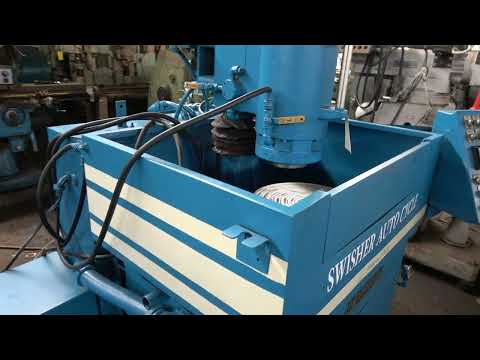

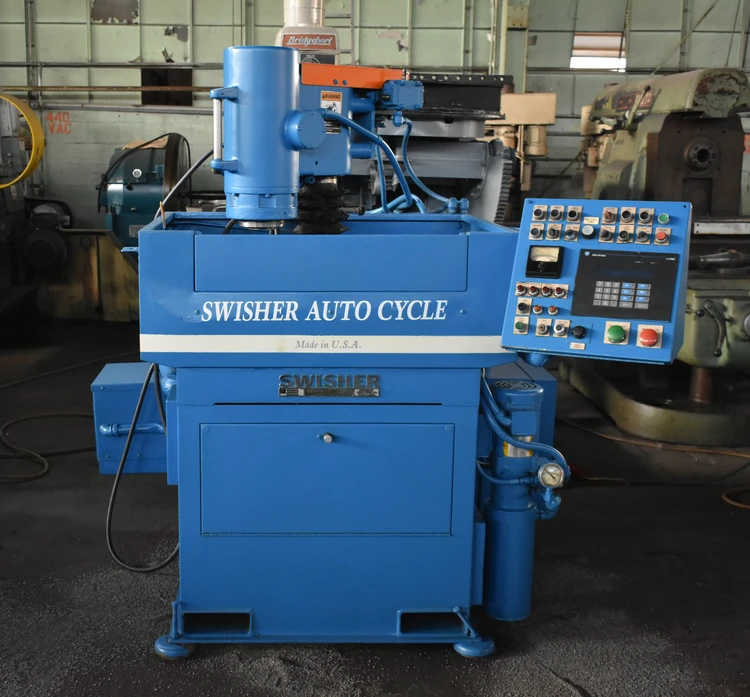

16" SWISHER/UVT "AUTO-CYCLE" PRECISION AUTOMATIC
VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 0509-R435, Model A/C Rotary, Series Auto-Cycle

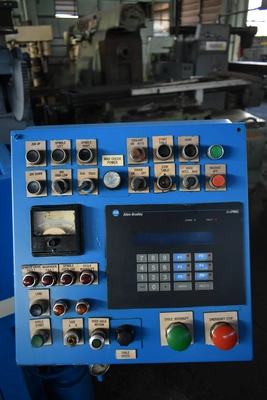

Allen Bradley "RediPanel" PLC Control

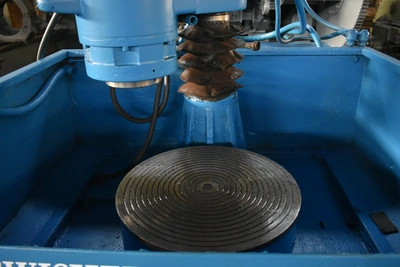

15.75" Diameter Electro-Magnetic Chuck
Variable Spindle Speed To 3600 RPM
Closed Loop Servo-Motor Fed Grinding Spindle
Dual Velocity Distance Dwell And Wheel Compensation
A/B Programming Switch Holds Two Sets Of Parameters Allowing
Two-Sided Grinding
Coolant System (Tank & Gusher Pump)
Magnetic Chuck Surface, Diameter 15.75"
Height Grinder Base To New Wheel, Maximum 9.5"
Height Under New Wheel To Chuck, Maximum 7.25"
Grinding Wheel Diameter, Maximum 8"
Grinding Wheel Height, Maximum 3"
Grinding Wheel Wall, Maximum 0.5"
Grinding Wheel Back .75"
Grinding Wheel Hole Diameter 3.3"
Grinding Wheel Speed, Variable 0 to 3600 RPM
Grinding Spindle Resolutions .0001"
Spindle Motor, Horsepower 7.5 HP
Coolant Motor, Horsepower 1/6 HP
Overall Dimensions, W x D 56" x 46"
Overall Height 72"
Weight, Approximately 2400 LBS
F.O.B. OUR WAREHOUSE
