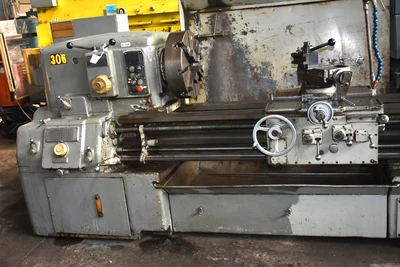

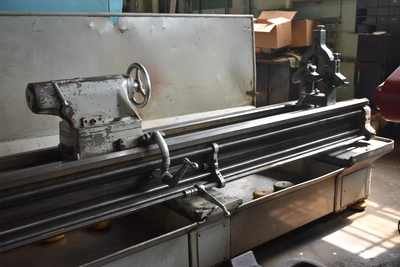

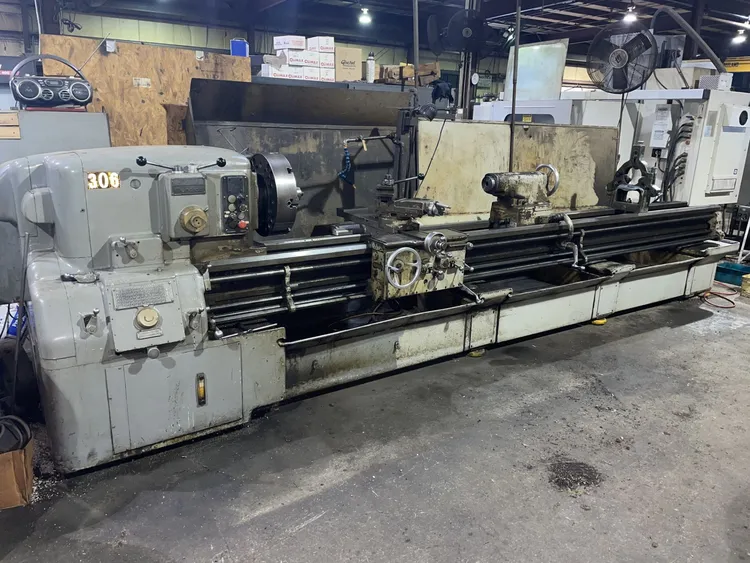

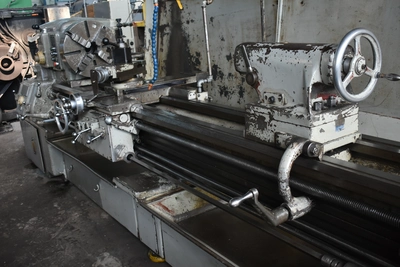

24" x 150" MONARCH "2516X150" SERIES 610 ENGINE LATHE w/4-JAW CHUCK - POWER RAPID TRAVERSE - STEADY REST

Have one to sell?

sales@mohawkmachinery.com

$14,500.00 USD

ConditionUsed

Quantity

1 available

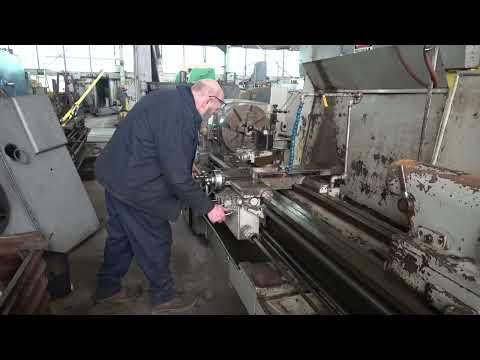

MONARCH 2516X150 Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (1)

MONARCH 2516X150 Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (2)

MONARCH 2516X150 Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (3)

MONARCH 2516X150 Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (4)

MONARCH 2516X150 Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (5)

MONARCH 2516X150 Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery (6)

MONARCH 2516X150 Engine Lathes (Gap Bed, Hollow-Spindle, Tracer) | Mohawk Machinery

Have one to sell?

Overview

Type:

Engine Lathes (Gap Bed, Hollow-Spindle, Tracer)

Manufacturer:

Model:

2516X150

Stock #:

30693

Status:

For Sale

Description

24" x 150" MONARCH "2516X150" SERIES 610 ENGINE LATHE

Serial No.48097, Model 2516x150, Series 610

Equipped With

18" 4-Jaw Chuck

6" D-1 ASA Cam Lock Spindle Nose

Power Rapid Traverse

Hard Ways - Steady Rest

Full Length Coolant-Chip Pan

Specifications

ImperialMetric

Swing	24"	609.6 mm
Centers	150"	3,810 mm
Spindle Bore	2.0625"	52.388 mm
RPM	1,500 RPM	1,500 RPM
Swing Over Cross Slide	16"	406.4 mm
Dimensions	235 x 57	235 x 57
Weight	13500	13500

Hole Thru Spindle 2-1/16"

Swing Over Bed Ways, Rated 24"

Swing Over Carriage Wings 24"

Swing Over Cross-Slide 16"

Distance Between Centers 150"

(36) Spindle Speeds, Range 12 to 1500 RPM

(66) Longitudinal Carriage Feeds .001 to .068 IPR

(66) Thread Changes, Range 1 to 120 TPI

Cross-Slide Cross Feed Travel 5"

Width Of Bed 17"

Tailstock, Spindle Taper #4 MT

Tailstock, Spindle Diameter 4-1/2"

Tailstock, Spindle Travel 7"

Overall Dimensions, L x D 235" x 57"

Weight, Approximately 13,500 LBS

F.O.B OUR WAREHOUSE
