98.4" AMADA "FBD 8025NT" 88 TON CNC UPACTING HYDRAULIC PRESS BRAKE w/AMNC-PC 8-AXIS CONTROL - 5-AXIS BACK GAUGE - HYDRAULIC CROWING - ONE TOUCH PUNCH HOLDERS
Have one to sell?
$34,500.00 USD
ConditionUsed
1 available

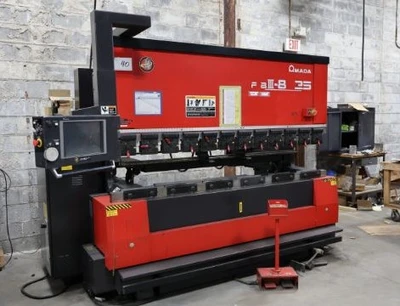

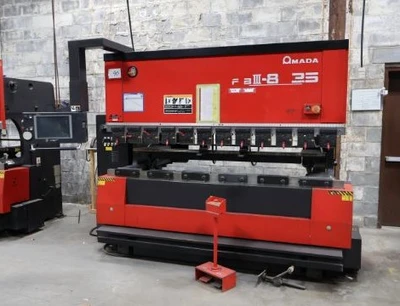

98" AMADA 88-TON 8-AXIS CNC UP-ACTING HYDRAULIC PRESS BRAKE

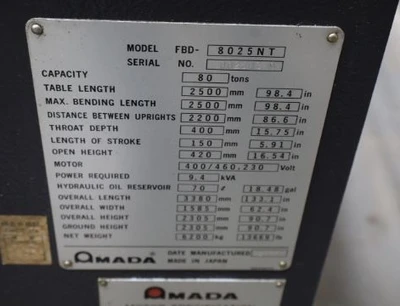

New 2000, Serial No 80250378, Model FBD 8025NT

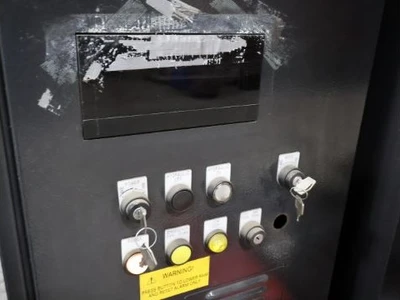

Amada AMNC - PC 8-Axis Control
w/Programmable Ram Tilt D1 & D2 - Hydraulic Crowning
& 5-Axis Back Gauge
AC Electric Servo Drives w/Dual Hydraulic Cylinders

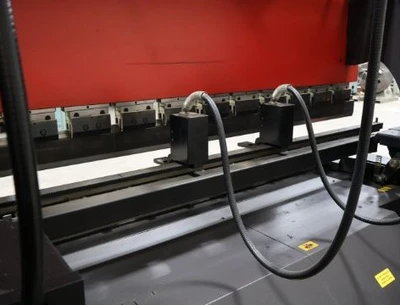

One Touch Punch Holders
Tonnage Capacity, US 88 TON
Tonnage Capacity, Metric 80 TON
Overall Bed 98.4" 2500MM
Distance Between Housings 86.6" 2200MM
Maximum Bending Length 98.4" 2500MM
Stroke Length 5.91" 150MM
Open Height 16.54" 420MM
Throat Depth 15.75" 400MM
Table Height 37" 940MM
Ram Speed, Approach 212 IPM
Ram Speed, Pressing 2.4 to 21 IPM
Ram Speed, Return 212 IPM

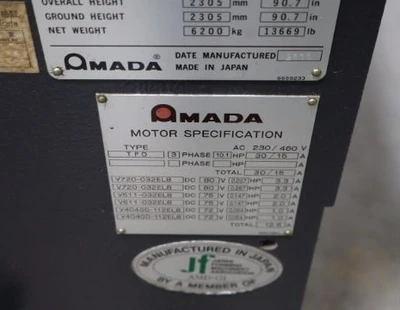

Hydraulic Motor, Horsepower 10 HP
Overall Length 132.1" 3360MM
Overall Width 62.4" 1585MM
Overall Height 90.7" 2305MM
Approximate Weight 13669 LBS 6200KG
F.O.B.OUR WAREHOUSE
