450-20 CINCINNATI-MILACRON "LA" DUAL-POWER DIAL-TYPE VERTICAL MILL w/FRONT & REAR CONTROLS - H.D. VISE - 50 HP MOTOR - AUTOMATIC BACKLASH ELIMINATOR
Have one to sell?
$24,500.00 USD
ConditionUsed
1 available

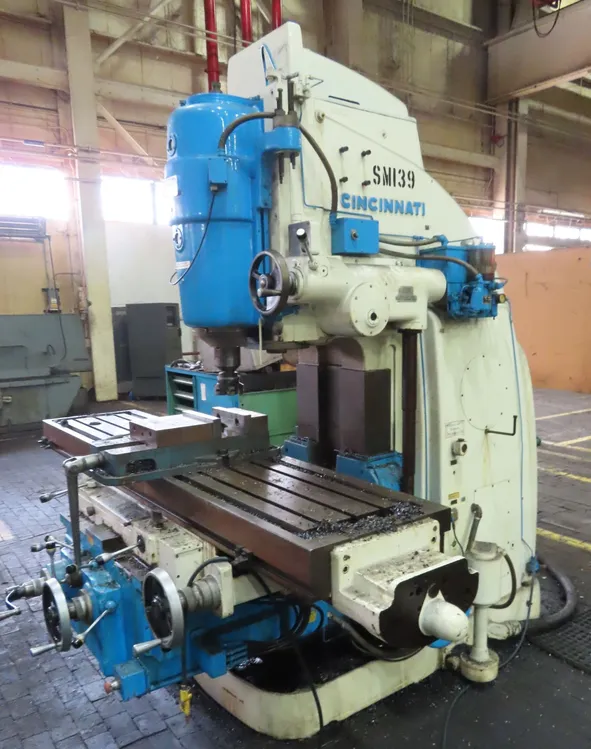

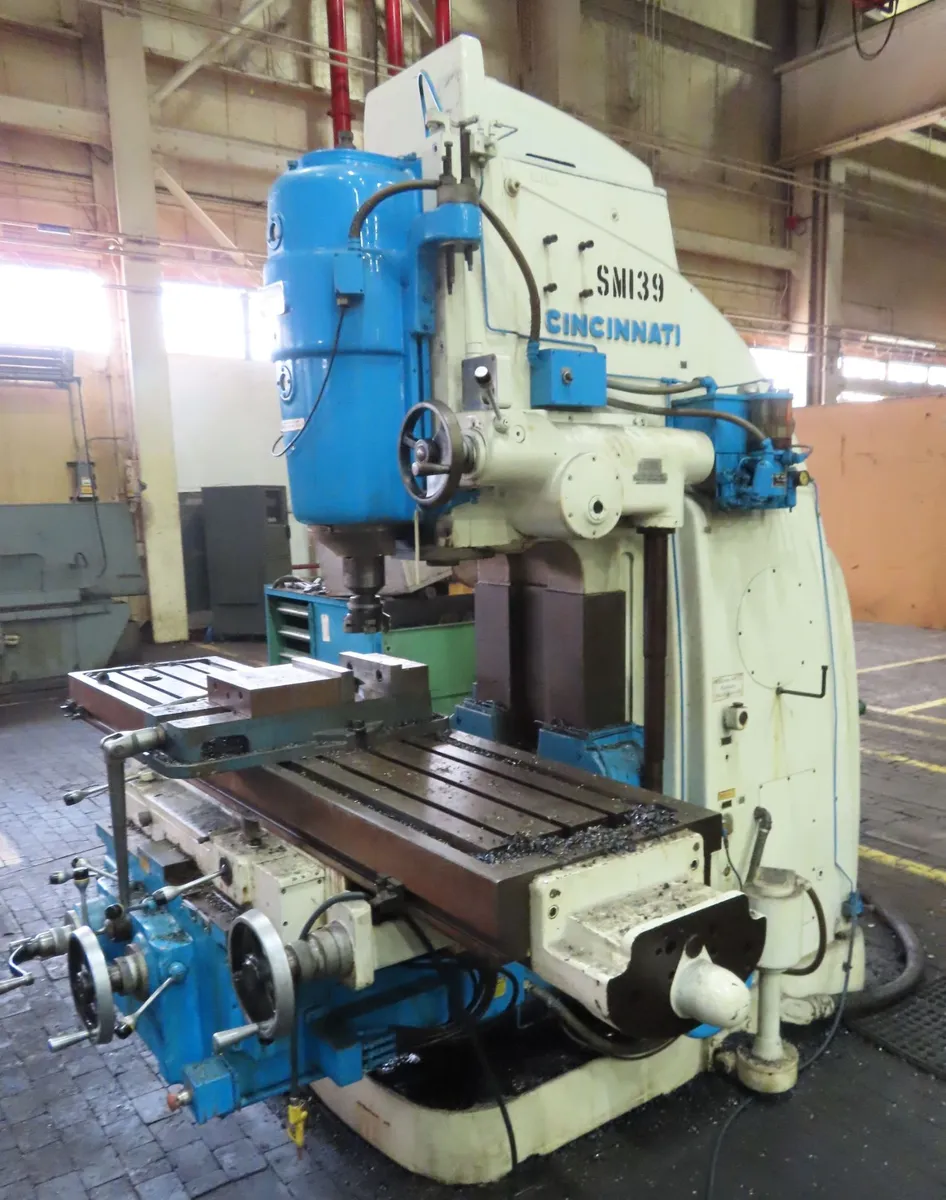

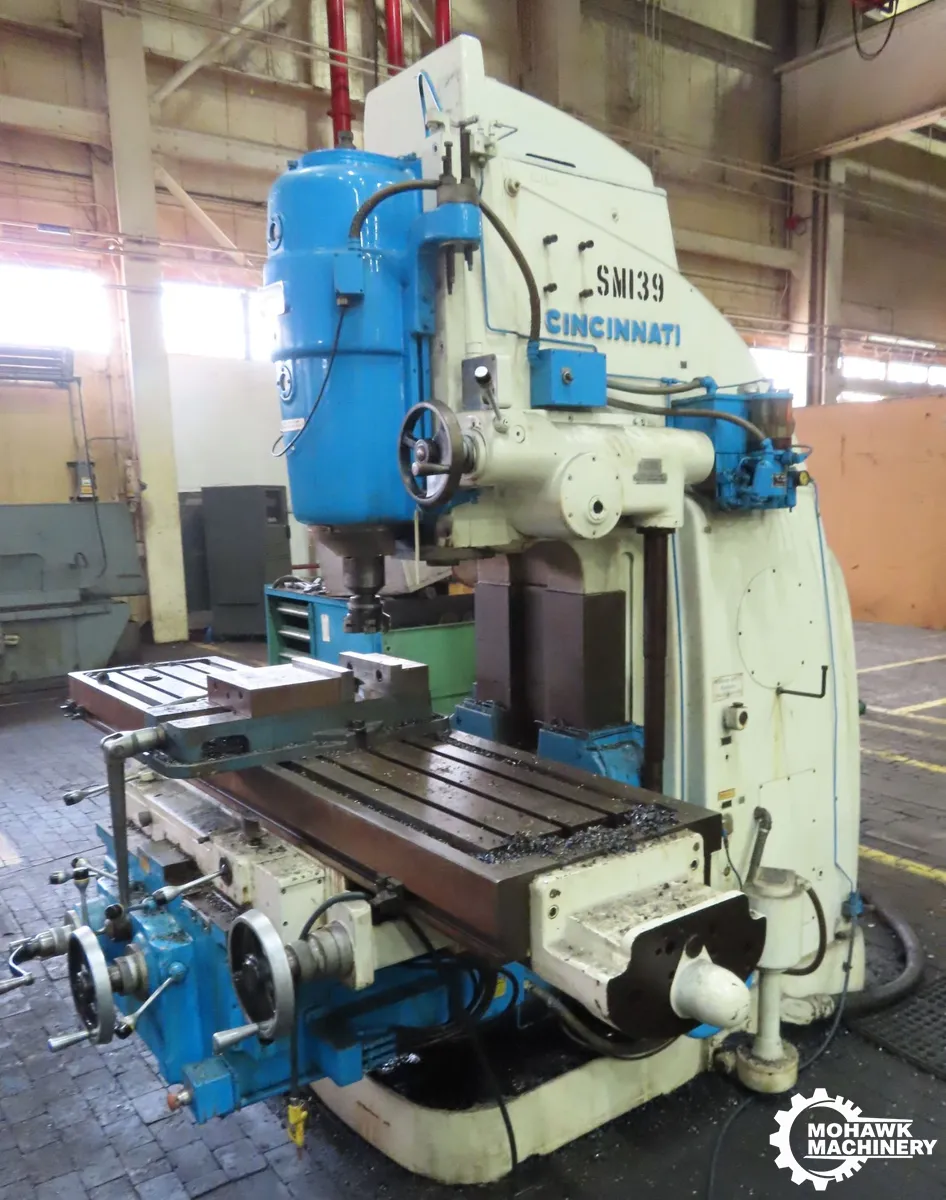

450-20 CINCINNATI-MILACRON "DUAL- POWER" DIAL-TYPE VERTICAL MILL

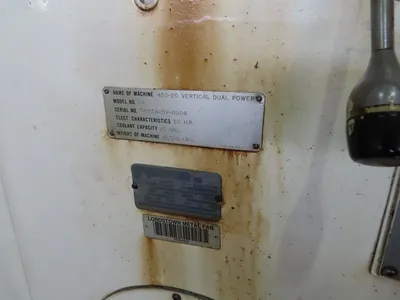

Serial No 310554V5V-0004, Model 450-20, Series, Dual-Power Dial Type, Ltr LA
Motor On Knee --- Automatic Table Feed Cycle
Power Rapid Traverse --- Front & Rear Controls
Automatic Backlash Eliminator - Heavy-Duty Vise
Vertical Turret Depth Stops (4-Position)
Coolant System (Built-In)
Table Dimensions (Overall), W x L 20" x 86-1/2"
Table Working Surface, W x L 20" x 86-1/2"
Table Longitudinal Travel (X-Axis) 42"
Saddle Cross Travel (Y-Axis) 18"
Knee Vertical Travel (Z-Axis) 16"
Spindle-Head Vertical Travel (Z-Axis) 8"
Spindle-Nose to Table, Minimum 0"
Spindle-Nose to Table, Maximum 22"
(24) Spindle Speeds, Range 14 to 1400 RPM
(32) Longitudinal and Cross Feeds 3/8 to 90 IPM
(32) Vertical Head Feeds, Range 3/16 to 45 IPM
(32) Vertical Knee Feeds, Range 3/32 to 22.5 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 37-1/2 IPM
Power Rapid Traverse, Spindle Head 75 IPM
Spindle Motor, Horsepower 50 HP
Feed Motor, Horsepower 5 HP
Floor Space Required, W x D 12'3" x 11'3"
Overall Height 8'11"
Weight, Approximately 17,700 LBS
F.O.B. OUR WAREHOUSE
