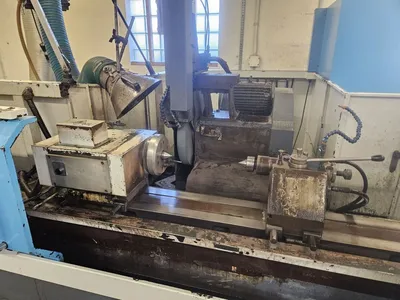

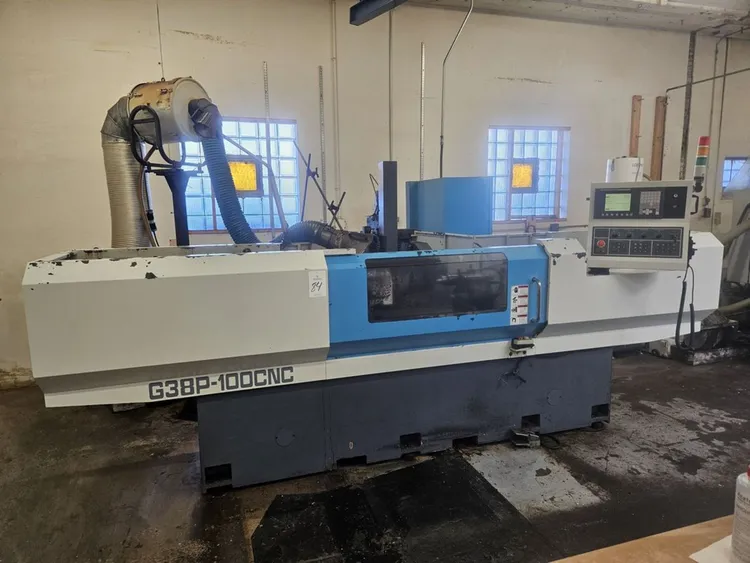

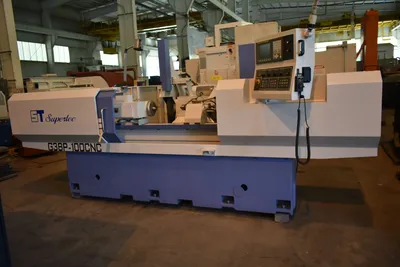

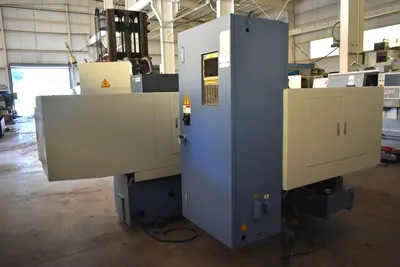

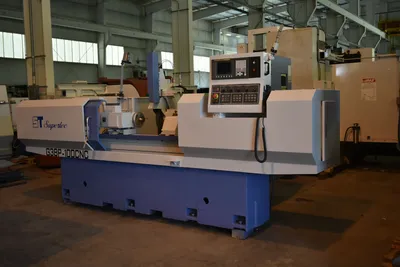

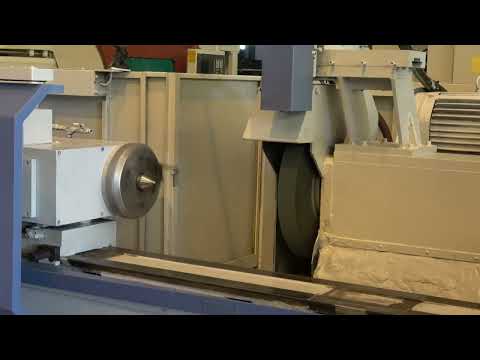

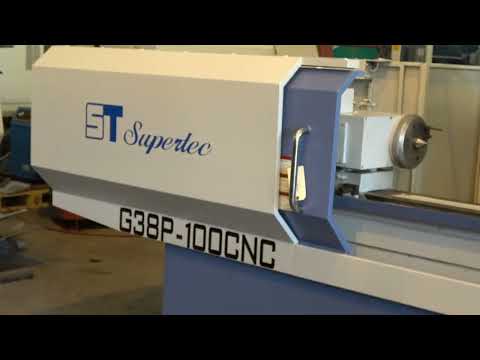

15” x 40” SUPERTEC “G38P-100CNC” CNC HIGH-PRECISION PLUNGE TYPE CYLINDRICAL GRINDER w/FANUC Oi-MATE TC CNC CONTROL - COOLANT SYSTEM - 10 HP SPINDLE MOTOR
Have one to sell?
$29,500.00 USD
ConditionUsed
1 available
15" X 40" SUPERTEC UNIVERSAL CYLINDRICAL GRINDER

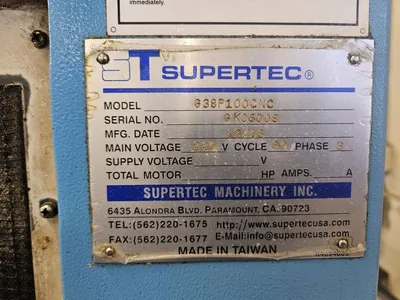

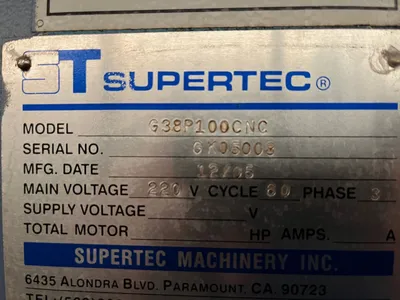

New 2006, Serial No. GK05008, Model G38P-100CNC

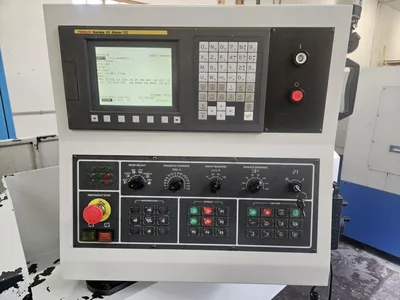

FANUC Series Oi-Mate TC CNC Control
Automatic Incremental Wheelhead Infeed

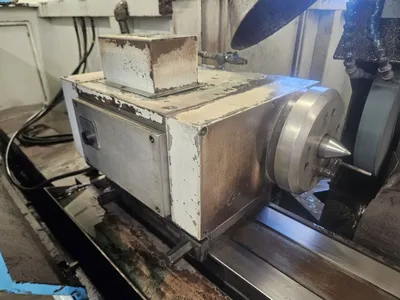

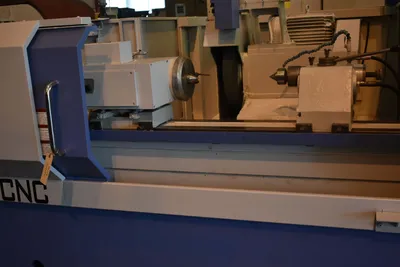

Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Meehanite Caste Base
Automatic Lubrication System

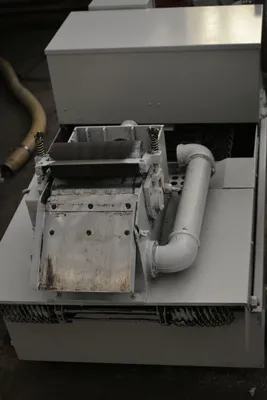

Coolant System (Tank & Pump)
Swing Over Table, Maximum 15"
Grinding Diameter, Maximum 14"
Distance Between Centers, Maximum 40"
Weight Capacity Between Centers 330 LBS
Wheelhead X-Axis, Travel 11”
Table Z-Axis,Travel 51”
Grinding Wheel, Standard Diameter 20"
Grinding Wheel, Width 2" to 4”
Grinding Wheel, Hole Diameter 6"
Grinding Wheel Speeds 1250 RPM
Workhead Spindle Speeds 10 to 600 RPM
Longitudinal Table Feeds, Infinite to 236 IPM
Longitudinal Rapid Feedrate, Maximum 394 IPM
Table Swivel Angle Range +/- 7 DEGREES
Workhead Swivel Angle, Range 90-DEGREES
Workhead & Tailstock Spindle Taper 4 MT
Wheelhead Motor, Horsepower 10 HP
Workhead Motor, Horsepower 2 HP

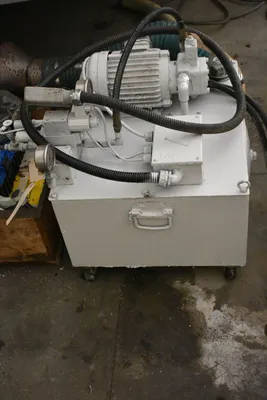

Hydraulic Motor, Horsepower .38 HP
Electrical System 230/3/60
Overall Dimensions, L x W 169" x 109"
Overall Height 71"
Weight, Approximately 13230 LBS
F.O.B ON WAY IN
