Quick Panel View PLC Control
Bundling Attachment
0 to 60 Degree Mitering Capabilities
40" Single Stroke Automatic Indexing
999" Multiple Indexing
Full-Stroke Hydraulic Vises
Counterbalanced Saw Head
Coolant System w/Chip Collection
| Rect-Cap (H) | 14" | 355.6 mm |
| Rect-Cap (W) | 20" | 508 mm |
| Rounds-Cap | 14" | 355.6 mm |
| Square-Cap | 14" | 355.6 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 197" | 5,003.8 mm |
| Control | CNC (Panel View PLC) | CNC (Panel View PLC) |
| Weight | 3300 LBS | 3300 LBS |

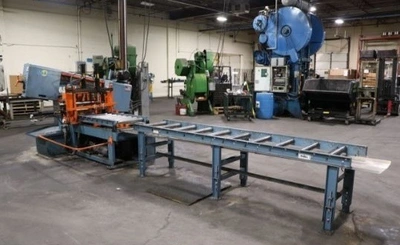

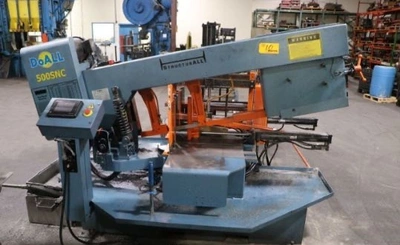

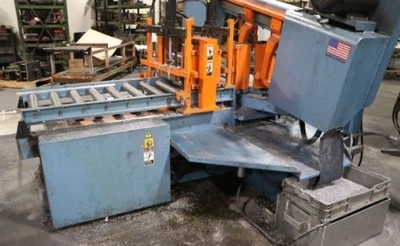

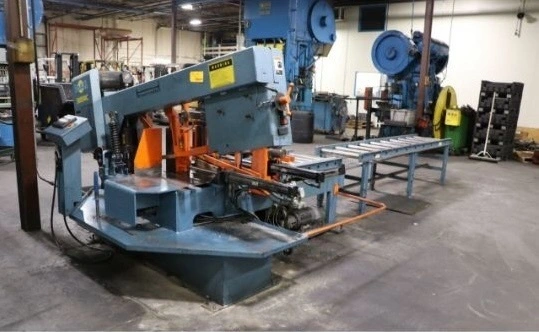

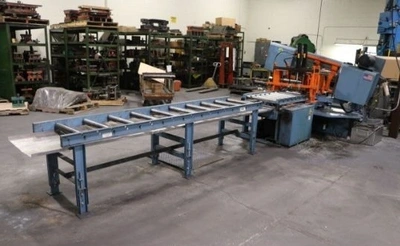

14" x 20" DOALL "STRUCTURALL" MITER CUTTING AUTOMATIC
HORIZONTAL BAND SAW w/PLC CONTROL & BUNDLING ATTACHMENT

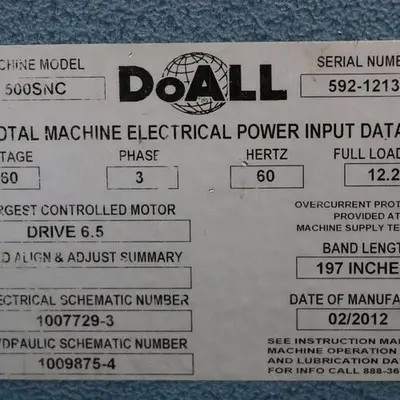

New 2012, Serial No 592-12134, Model 500SNC, Series Structurall
EQUIPPED WITH:

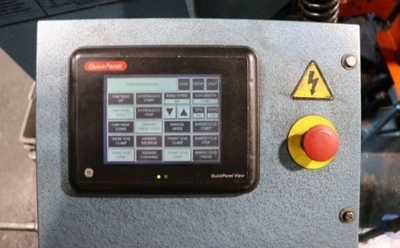

Quick Panel View PLC Control

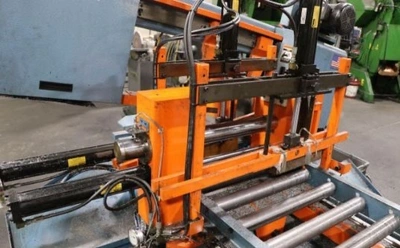

Bundling Attachment
0 to 60 Degree Mitering Capabilities
40" Single Stroke Automatic Indexing
999" Multiple Indexing

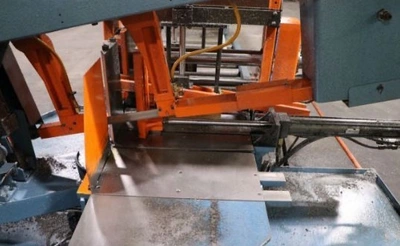

Full-Stroke Hydraulic Vises
Counterbalanced Saw Head
Coolant System w/Chip Collection
CATALOG SPECIFICATIONS:
Round Stock Capacity, 90-Degrees 14""
Flat Stock Capacity, 90-Degrees 14" x 20"
Round Stock Capacity, 45-Degrees 14"
Flat Stock Capacity, 45-Degrees 14" x 14"
Round Stock Capacity, 60-Degrees 10"
Flat Stock Capacity, 60-Degrees 14" x 8"
Single Index Feed Length, Maximum 40"
Multiple Index Feed Length, Maximum 999"
Band Length 197"
Band Width 1-1/4"
Band Thickness .042"
Band Carrier Wheels, Diameter 20"
Band Speeds, Variable 50 to 400 FPM
Band Drive Motor, HP 5 HP
Hydraulic Motor, HP 2 HP
Weight Approximately 3300 LBS
F.O.B. OUR WAREHOUSE
