19" x 54" LEBLOND MAKINO "19 REGAL" SERVO-SHIFT ENGINE LATHE w/INCH-METRIC - 12” 3-JAW & 4-JAW CHUCKS - H.D. 2-SPEED TAILSTOCK

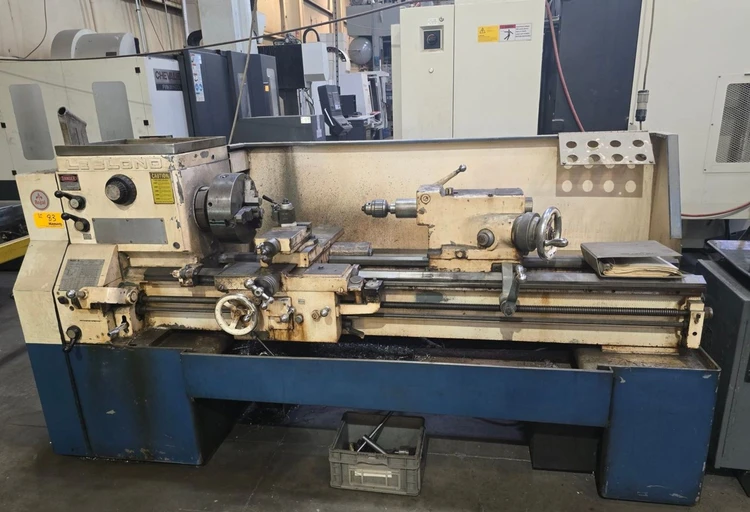

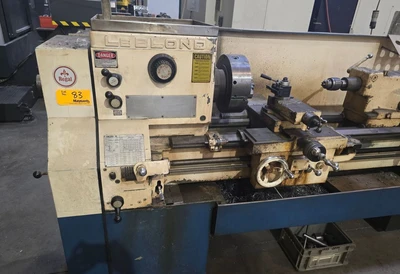

19" x 54" LEBLOND-MAKINO "REGAL" SERVO-SHIFT ENGINE LATHE

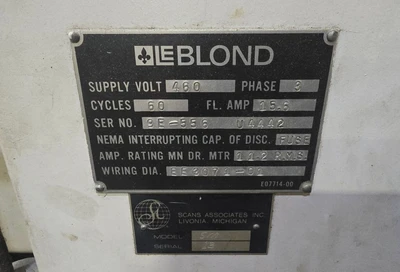

Serial No. 9E-556, Model 19" REGAL

EQUIPPED WITH:

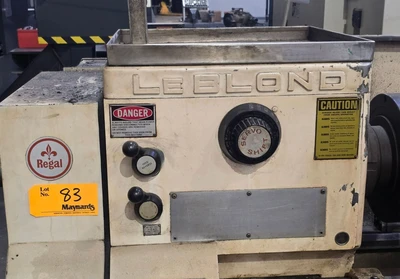

Servo Shift Hydraulic Shifting
Inch-Metric Threading

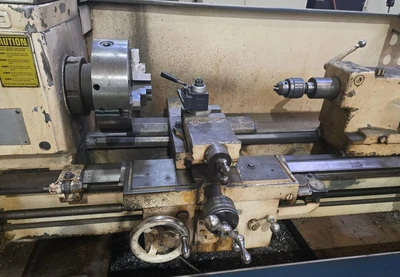

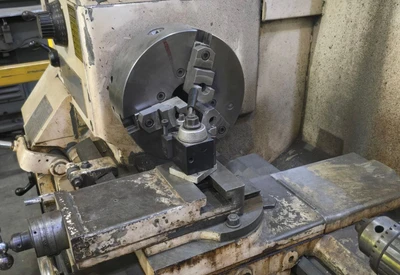

12" 4-Jaw Chuck w/Jaws - 12" 3-Jaw Chuck w/Jaws

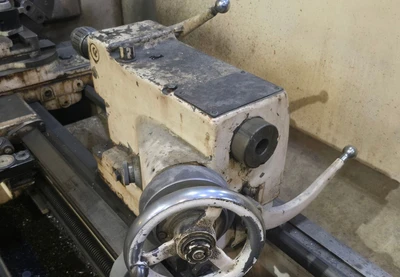

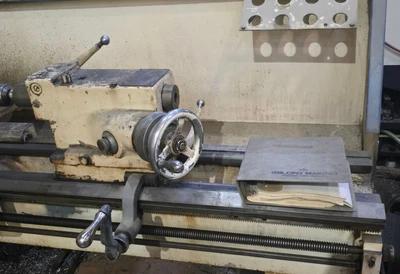

Heavy-Duty 2-Speed Tailstock
Hard Ways - Threading Dial w/Gauging
Turret Depth Stop
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Hole Thru Spindle 3-1/16"
Swing Over Bed Ways, Rated 19"
Swing Over Bed Ways, Actual 19-1/4"
Swing Over Cross-Slide 12-1/4"
Distance Between Centers 54"
(12) Spindle Speeds, Range 40 to 1600 RPM
(48) Longitudinal Carriage Feeds .0018 to .104 IPR
(48) Thread Changes, Range 2 to 112 TPI
(48) Metric Thread Changes, Range .05 to 2.6 MMPR
Cross-Slide Cross Feed 11-1/4"
Tailstock, Spindle Taper #4 MT
Tailstock, Spindle Diameter 2-7/16"
Tailstock, Spindle Travel 7"
Motor, Horsepower/RPM 7.5 HP/1800 RPM
Overall Dimensions, L x D 113" x 50"
Weight, Approximately 4440 LBS
F.O.B. OUR WAREHOUSE
