3 HP SHARP "LMV" VERTICAL TURRET MILL w/NEWALL 2-AXIS DIGITAL READOUTS - 9" x 42" TABLE
Have one to sell?
$3,450.00 USD
ConditionUsed
1 available

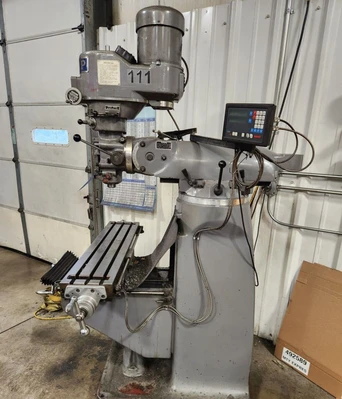

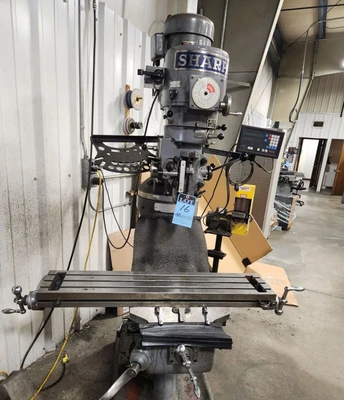

3 HP SHARP"LMV" VERTICAL TURRET MILL
Serial No 50121983, Model LMV

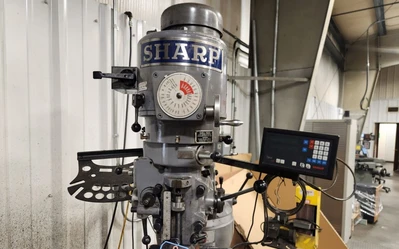

Newall 2-Axis Digital Readouts
3 HP Spindle Motor (Infinitely Variable Speeds)
Power Quill Feed
One-Shot Lubrication System

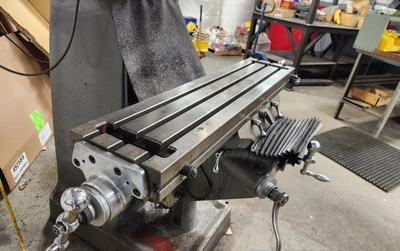

Table Dimensions (Overall), W x L 9" x 42"
Table Longitudinal Travel (X-Axis) 30"
Saddle Cross Travel (Y-Axis) 12"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel (Z-Axis) 5"
Ram Travel 12"
Spindle to Column, Range 6.75" to 18.5"
Spindle to Table, Minimum 6.75"
Spindle to Table, Maximum 18"
Spindle Taper #R8

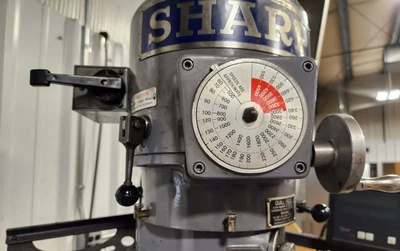

Spindle Speeds Range, Variable 60 to 4500 RPM
(3) Vertical Feeds, Range .0015 to .006 IPR

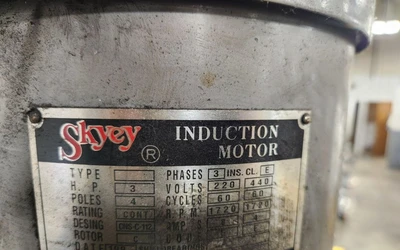

Spindle Motor, Horsepower/RPM 3 HP/1730 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 5'1" x 5'3"
Overall Height 7'9"
Weight, Approximately 2400 LBS
F.O.B. OUR WAREHOUSE
