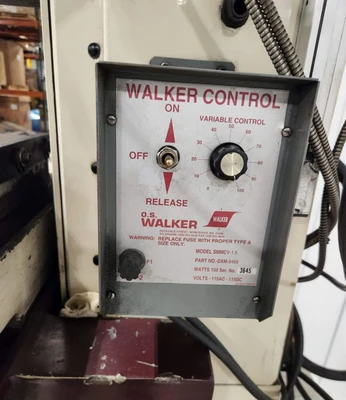

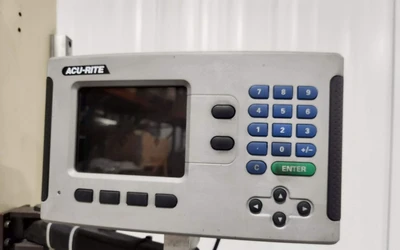

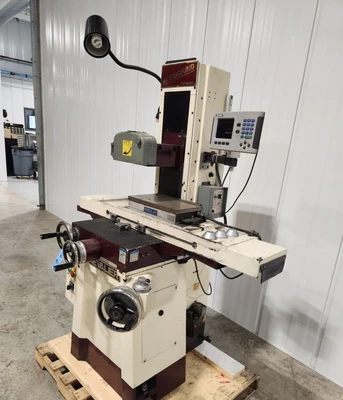

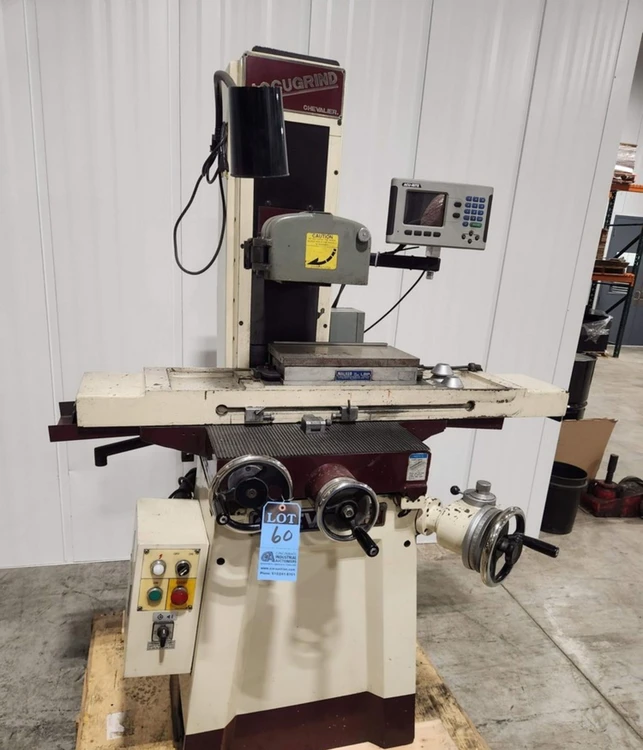

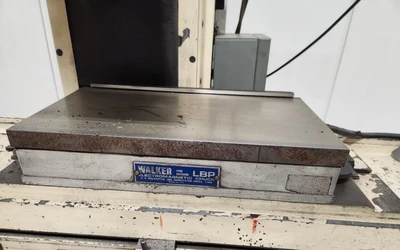

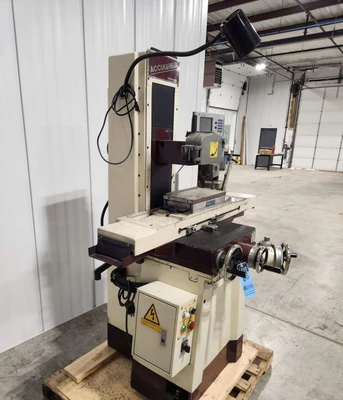

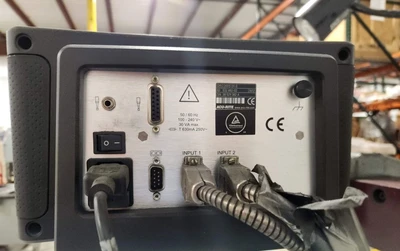

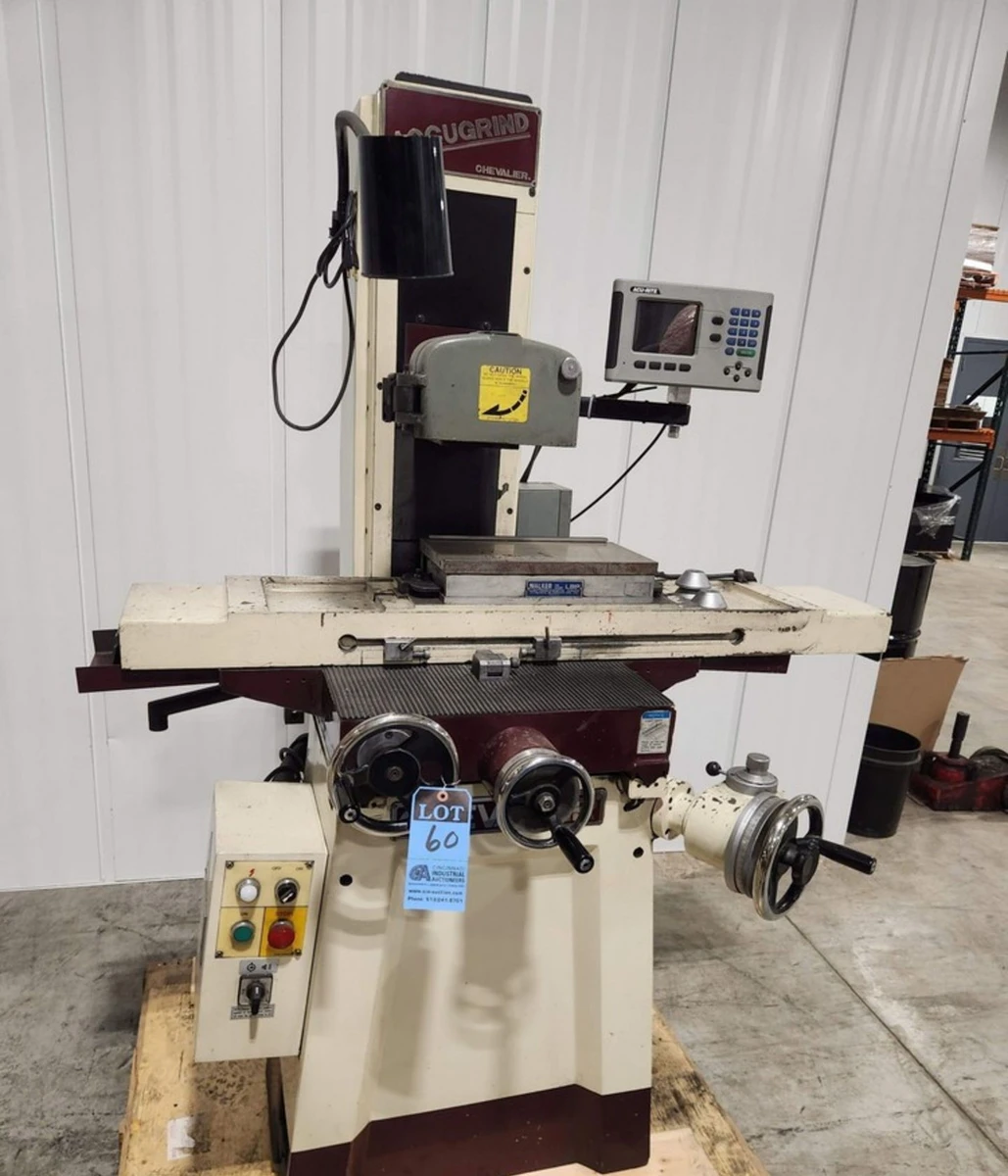

8" x 18" CHEVALIER "ACCUGRIND 818" HORIZONTAL-SPINDLE SURFACE GRINDER w/WALKER ELECTRO-MAGNETIC CHUCK - ACU-RITE DIGITAL READOUTS - MANUAL FEED

Table Working Surface, W x L 8" x 19"

Grinding Width Capacity, Maximum 9"

Grinding Length Capacity, Maximum 20"

Height Table to Spindle Center, Maximum 20"

Longitudinal Table Travel, Maximum 20"

Crossfeed Table Travel, Maximum 9"

Grinding Spindle Speed 3450 RPM

Grinding Wheel Diameter, Standard 8"

Grinding Wheel Width 0.5"

Grinding Wheel Hole Diameter 1.25"

Grinding Wheel Spindle Motor 2 HP

Electrical Requirements 220/440/3/60

Floor Space Required, L x W 69" x 54"

Overall Height 74"

Weight, Approximately 2310 LBS

NOTE: Replacement Price On This Grinder Is Over $24,000.00 With A

Chuck And Digital Readouts.

F.O.B. OUR WAREHOUSE
