| Table-W | 6.2" | 157.48 mm |
| Table-L | 14" | 355.6 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 0.75" | 19.05 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Weight | 1650 LBS | 1650 LBS |

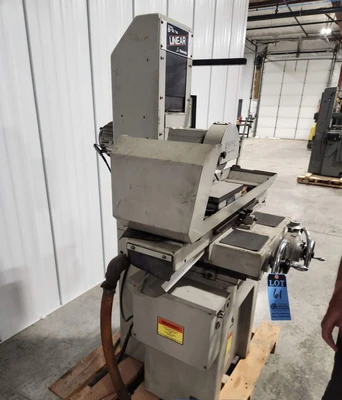

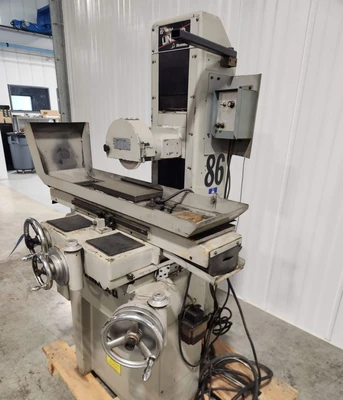

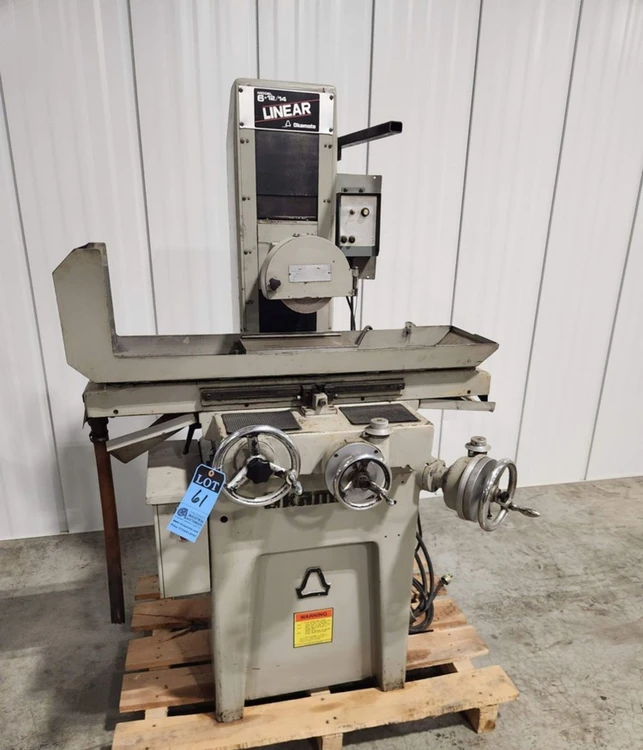

6" x 12" OKAMOTO "6-12/14 LINEAR" HAND-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER

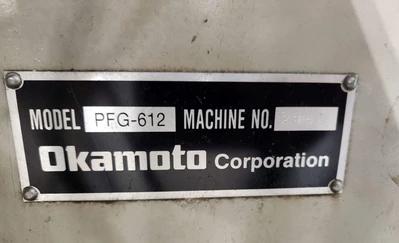

Serial No 2386U, Model PFG612, Series Linear 6-12/14
EQUIPPED WITH:
6" x 12" Walker Electro-Magnetic Chuck w/Controls
One Shot Lubrication System
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 6.2" x 14"
Grinding Width Capacity, Maximum 7.5"
Grinding Length Capacity, Maximum 14"
Height Table to Standard Wheel 14"
Table Load Capacity 108 LBS
Table Longitudinal, Manual 15"
Table Cross Travel 8"
Grinding Wheel Diameter, Standard 8"
Grinding Wheel Width, Standard 0.75"
Grinding Wheel Hole Diameter 1.25"
Grinding Spindle Speed 8000 SFPM
Grinding Wheel Spindle Motor 2 HP
Weight, Approximately 1650 LBS
F.O.B. OUR WAREHOUSE
