| X | 21.63" | 549.4 mm |
| Y | 12.63" | 320.8 mm |
| Z | 13.75" | 349.25 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| Taper | 40 | 40 |
| Table-W | 14.76" | 374.9 mm |
| Table-L | 31.5" | 800.1 mm |
| Control | CNC (Makino Professional J) | CNC (Makino Professional J) |
| Weight | 6600lbs | 6600lbs |

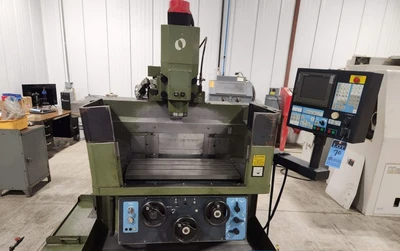

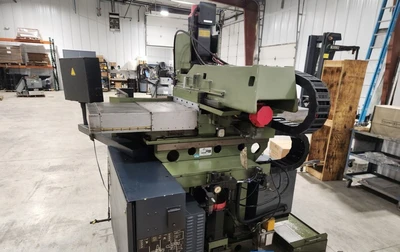

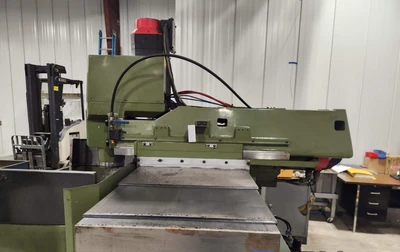

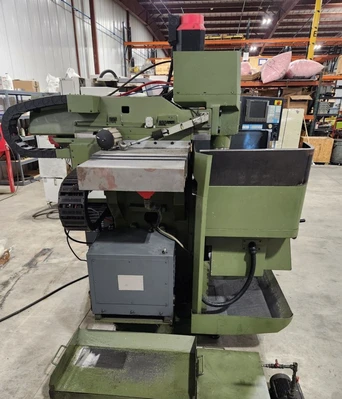

KE-55 LEBLOND MAKINO "SKILL MASTER" CNC VERTICAL MILL MACHINING CENTER

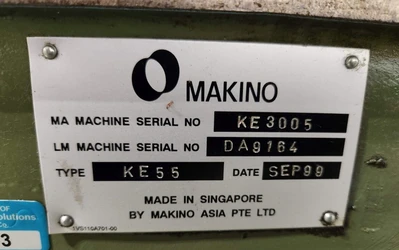

Serial Nos. MA KE3005 & LM DA9164, Model KE-55, Series Skill Master
EQUIPPED WITH:

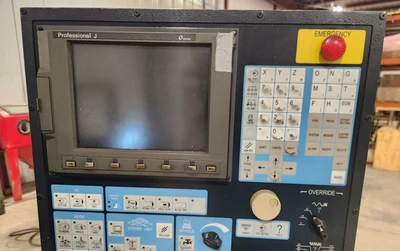

Makino "Professional J" CNC Control

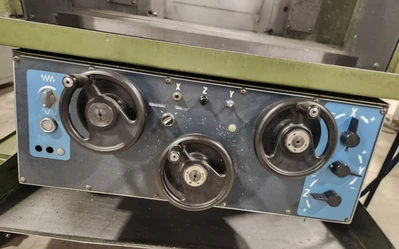

Manual Hand Wheel Controls
Power Draw Bar
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:

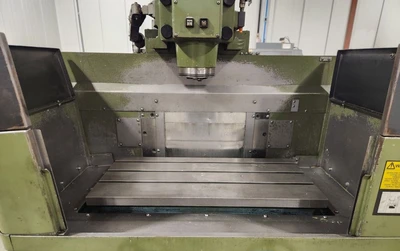

Table Dimensions (Overall), W x L 14.76" x 31.5"
Table Longitudinal Travel (X-Axis) 21.63"
Saddle Cross Travel (Y-Axis) 12.63"
Knee Vertical Travel (Z-Axis) 13.75"
Table Load Capacity 550 LBS

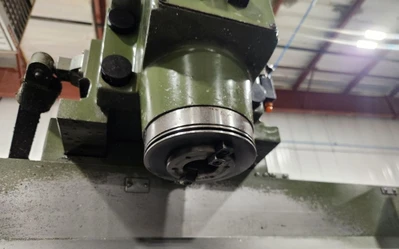

Spindle Taper #40
Distance Spindle To Table, Max. 17.7"
Spindle Speeds Range, Variable 40 To 4000 RPM
Feed Rate, Range 0 to 315 IPM
Rapid Traverse Rate, X-Axis 472 IPM
Rapid Traverse Rate, Y & Z-Axis 197 IPM
Spindle Horsepower 7.5 HP
Weight, Approximately 6600 LBS
F.O.B. OUR WAREHOUSE
