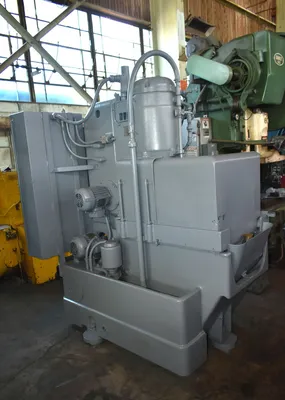

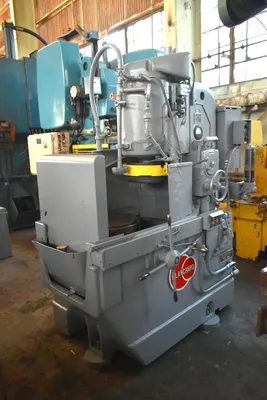

16" BLANCHARD "11-16" VERTICAL-SPINDLE ROTARY SURFACE GRINDER w/CYLINDRICAL GRINDING WHEEL - 15 HP SPINDLE - COOLANT SYSTEM
Have one to sell?
$12,500.00 USD
ConditionUsed
1 available

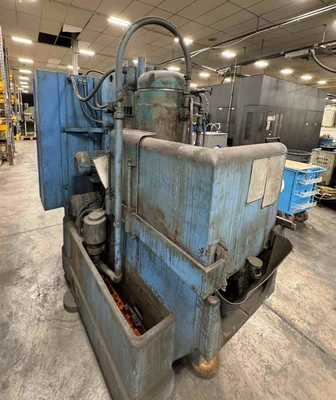

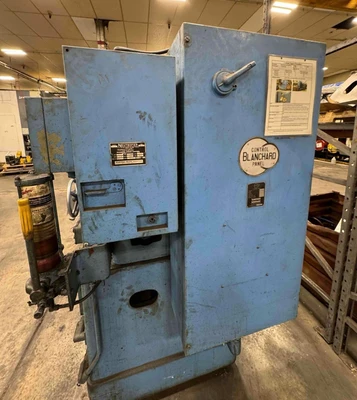

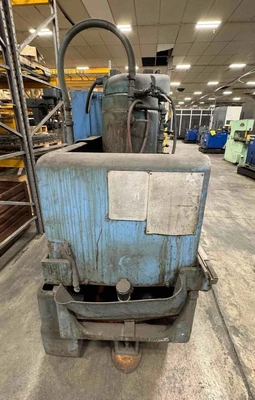

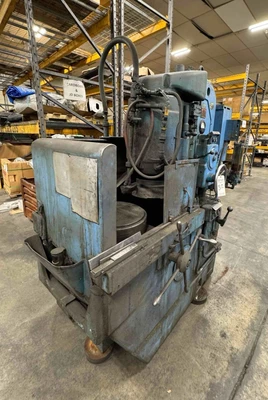

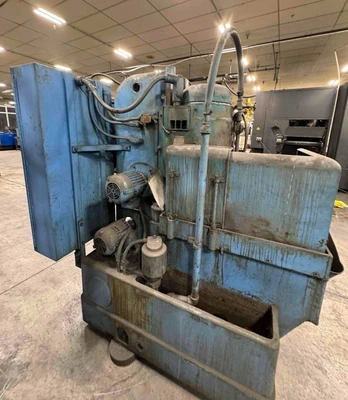

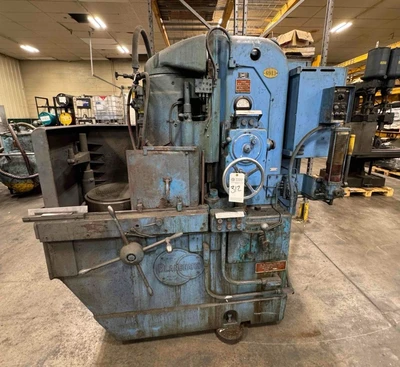

16" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER

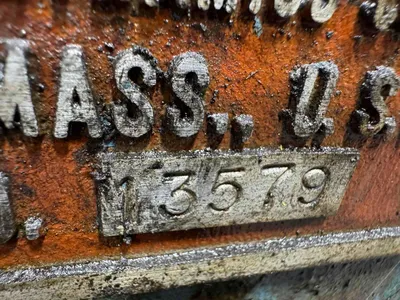

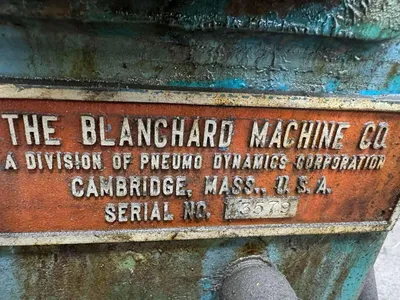

Serial No 13579, Model 11-16
Vertical-Spindle Machine Design

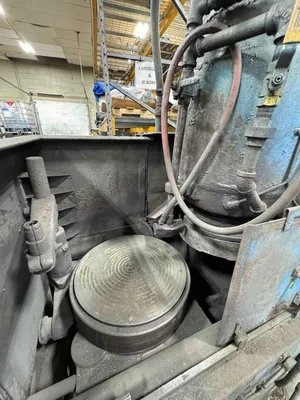

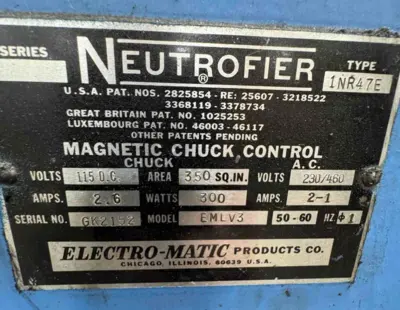

16" Diameter Magnetic Chuck w/Neutoifier

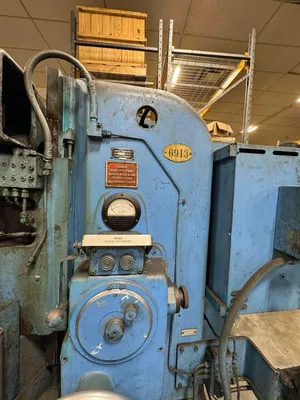

Cylinder Grinding Wheel Hub - Load Meter
Trabon One-Shot Lubricator
Swing-Away Wheel Dresser
Coolant System (Built-In)

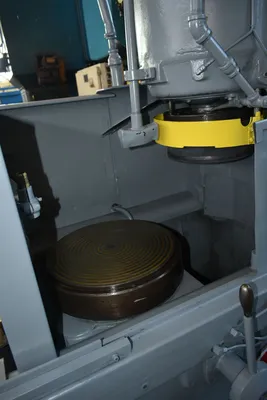

Magnetic Chuck, Diameter 16"
Swing Between Coolant-Guards 20"
Height Under Grinding Wheel, Maximum 8"
Grinding Wheel Diameter, Standard 11"
Grinding Wheel Width, Standard 5"
Grinding Wheel Hole Diameter 9"
Grinding Wheel Speed, Maximum 1200 RPM
(4) Chuck Speeds, Range 15 to 64 RPM
Power Down Feeds, Range .003 to .070 IPM

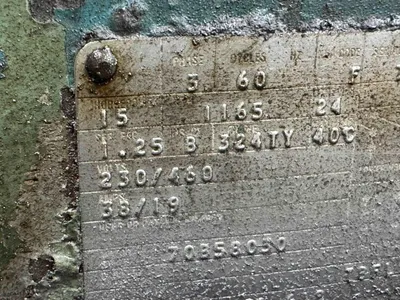

Spindle Motor, Horsepower/RPM 15 HP/1165 RPM

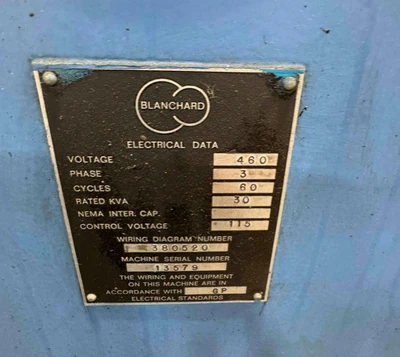

Electrical System 230-460/3/60
Floor Space Required, W x D 5'3" x 3'6"
Overall Height 6'9"
Weight, Approximately 5475 LBS
F.O.B. OUR WAREHOUSE
