EC-3000 HAAS CNC HORIZONTAL MACHINING CENTER - 30 HP 2-SPEED GEAR DRIVE - THU-SPINDLE COOLANT - 120" X-AXIS - 40" Y-AXIS - 32" Z-AXIS - 120" x 28" TABLE
Have one to sell?
ConditionUsed
1 available
2005 HAAS EC-3000 CNC Horizontal Machining Center, 30 HP 2-speed gear drive, and thru-spindle coolant. 120" x 28" table, max load 10000 lbs. X/Y/Z travel: 120"/40"/32". Spindle speeds up to 6000 RPM. Located in Cincinnati, OH.

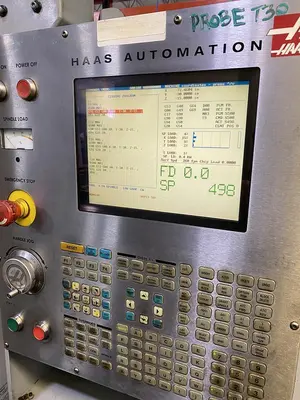

Haas CNC Control
30-Position Side-Mounted Automatic Tool Changer
30 HP 2-Speed Geared Head Drive System
Thru-Spindle Coolant System
Table Dimensions, L x W 120" x 28"
Table Load Capacity, Maximum 10000 LBS
X-Axis Longitudinal Travel 120"
Y-Axis Head Vertical Travel 40"
Z-Axis Table Cross Travel 32"
Spindle Taper #50
Tool Diameter Full, Maximum 4"
Tool Diameter Adjacent Empty, Maximum 10"
Spindle Speeds, Range 0 to 6000 RPM
Cutting Feedrate Range 360 IPM
Rapid Traverse Rate 540 IPM
Motor Horsepower 30 HP
Overall Dimensions, W x D 266" x 143"
Overall Height 119"
Weight Approximately 40000 LBS
CINCINNATI, OHIO LOCATION
