| Tonnage | 90 T | 81.647 t |
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 8' | 2.4 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 5 | 5 |
| Control | CNC (Cincinnati Proform CNC Control) | CNC (Cincinnati Proform CNC Control) |
| Dimensions | 12'7" x 5'6" | 12'7" x 5'6" |
| Weight | 16000 LBS | 16000 LBS |

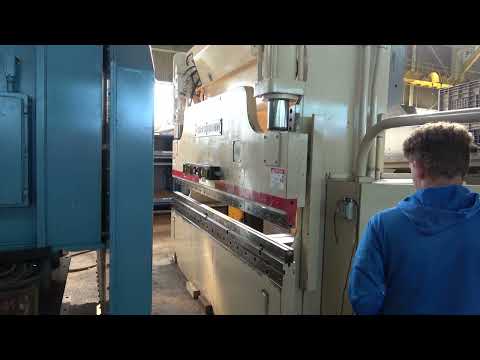

10' CINCINNATI-INC 90-TON PROFORM 5-AXIS
CNC HYDRAULIC PRESS BRAKE
New 2011, Serial No. 54651, Model 90PFX8FT
Series Proform
EQUIPPED WITH:
5-Axis Pendant Mounted Programmable CNC Back Gauge
Pedestal Mounted Palm Button Operator Station
3-Position Footswitch
CATALOG SPECIFICATIONS:
Tonnage Capacity 90 TON
Overall Length of Bed and Ram 10'
Distance Between Housings 8'6.5"
Bending Capacity 9' x 10 GA
Bending Capacity 5' x 1/4"
Stroke Length, Maximum 8"
Open Height 15"
Closed Height 7"
Throat Depth 7"
Ram Speed, Approach/High 260 IPM
Ram Speed, Forming/Variable 1 to 80 IPM
Ram Speed, Returne 280 IPM
Motor, Horsepower 15 HP
Overall Dimensions, W x D 12'7" x 5'6"
Overall Height 117"
Weight, Approximately 16000 Lbs.
F.O.B. OUR WAREHOUSE
