550-DEGREE GRIEVE "CAH550" ELECTRIC FLOOR LEVEL CABINET OVEN

550-DEGREE GRIEVE FLOOR LEVEL ELECTRIC
CABINET TYPE OVEN
Serial No 108084A0113, Model CAH550

EQUIPPED WITH:

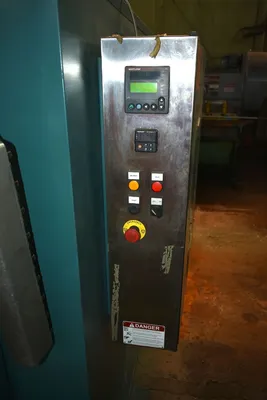

Watlow PLC Control - Temperature Gauge

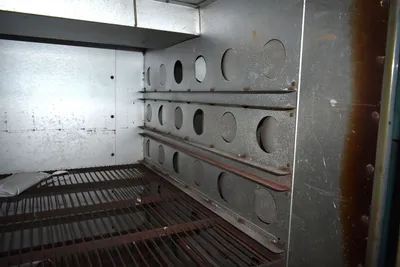

(3) Shelves
Electric Operation
Horizontal Air Flow

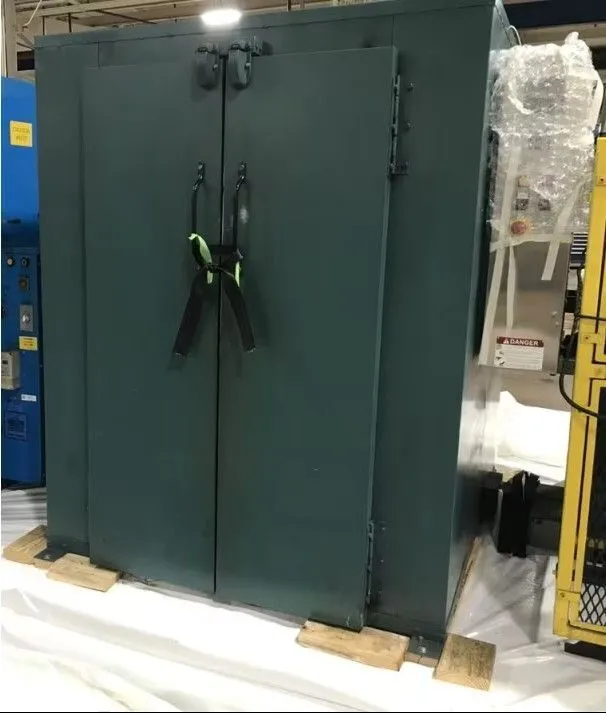

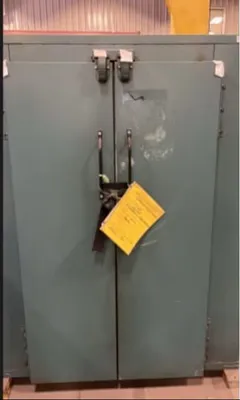

Double Doors

CATALOG SPECIFICATIONS
Temperature Rating Maximum, Fahrenheit 500-DEGREES
Work Space Dimensions, (W x D x H) 36" x 36" x 60"
Work Space Volume 45 CU FT
Shelf Load Capacity, Each 100 LBS
Heat Input 18 KW
Blower CFM Rate 1600 CFM

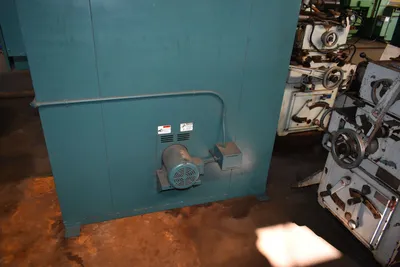

Blower Motor 1.5 HP
Outside Dimensions, (W x D x H) 53" x 63" x 70"
Electrical System 460/3/60
Weight Approximately 2160 LBS

NOTE: This Oven Is Equipped With Horizontal Air Flow
With Adjustable Louvers. They Are Commonly
Used Work Is Shelf Loaded And Least Restriciton
Of Free Air Passage Is In The Horizontal
Direction.

F.O.B. OUR WAREHOUSE
