| Tonnage | 30 T | 27.216 t |
| Stroke | 3.54" | 89.916 mm |
| Dimensions | 40 x 41 | 40 x 41 |
| Weight | 2445 | 2445 |

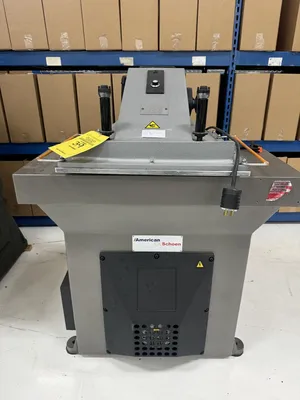

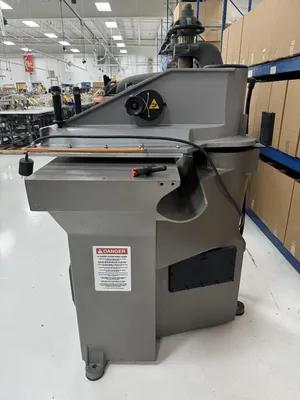

30 TON AMERICAN & SCHOEN SWING-ARM DIE CUTTING CLICKER PRESS

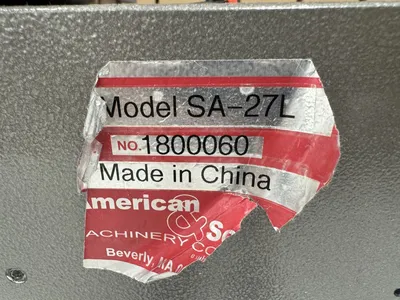

Serial No 180060, Model SA27L
EQUIPPED WITH:
Two Hand Push Button Controls
CATALOG SPECIFICATIONS:
Tonnage Capacity 30 TONS
Tonnage Capacity, Metric Tons 27 TONS
Stroke Length, Maximum 3.54” 90MM
Cutting Table Dimensions, W x D 40” x 20”
Cutting Table Dimensions, W x D 1000MM x 500MM
Beam Width 24” 610MM
Overall Dimensions, W x D 40” x 41”
Overall Dimensions, W x D 1000MM x 1050MM
Overall Height 59” 1457MM
Weight, Approximately 2445LBS 1110KG
F.O.B. OUR WAREHOUSE
