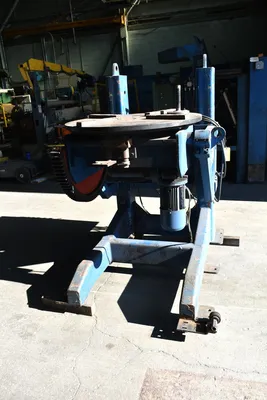

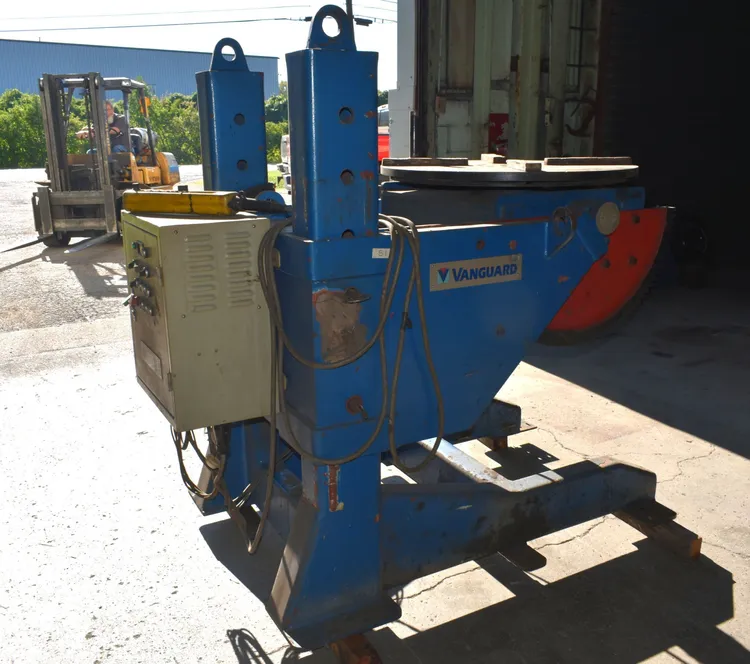

2200 LB VANGUARD "SB10" ADJUSTABLE HEIGHT WELDING POSITIONER

2200 LB VANGUARD WELDING POSITIONER (ROTATING TABLE ONLY)
New 2007, Serial No 4507190, Model SB10

EQUIPPED WITH:
360-Degree Variable-Speed Power Rotation
35.43" Diameter Table
Manual Table Elevation

CATALOGUE SPECIFICATIONS:
Table Diameter 35"
Table Weight at 6" Eccentricity 2200 LBS
Table Rotation, Degrees 360-DEGREES
Rotation Torque, Inch Pounds 11280 LBS
Table Rotation Speed, Variable .012 to 1.2 RPM
Table Rotation Motor, HP 1.1 KW
Overall Dimensions, W x D 44" x 61"
Overall Height 65.7"
Weight Approximately 2500 LBS

NOTE: This Machine Has Had The Tilt Motor & Drive
Removed. The Machine Will NOT Tilt And Is
Being Sold As Rotating Table ONLY.

F.O.B. OUR WAREHOUSE
