14' CINCINNATI INC 230-TON "230AFX10FT" AUTOFORM CNC HYDRAULIC PRESS BRAKE - 6-Axis Back Gauge -Auto Crown - Front Gage - Power Clamping -

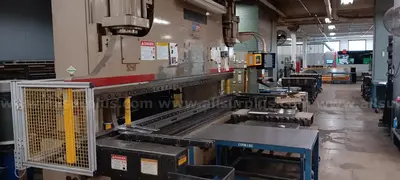

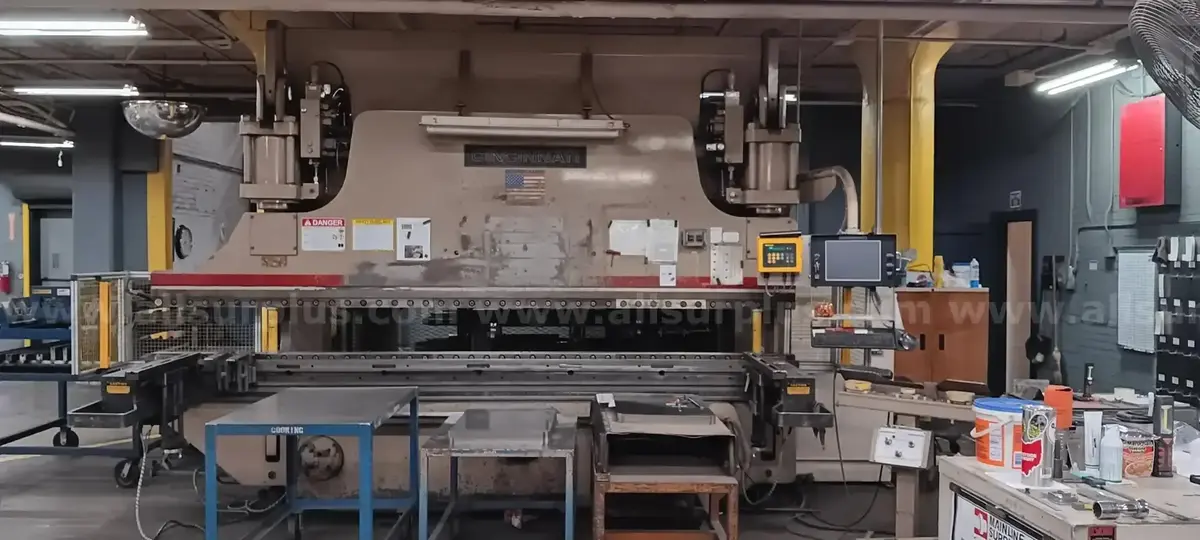

14' CINCINNATI INC 230-TON "AUTOFORM" CNC
HYDRAULIC PRESS BRAKE w/6-Axis Back Gauge & Autocrowning

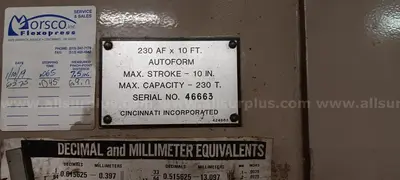

Retrofit 2012, Serial No 46663, Model 230AFX10FT

EQUIPPED WITH:

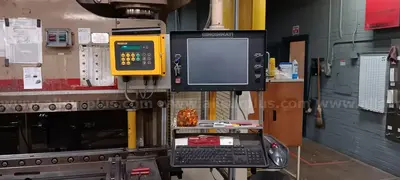

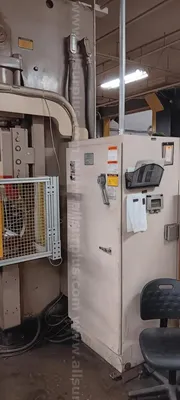

Cincinnati Inc Gen 4 Autoform CNC Control (2012 Retrofit)

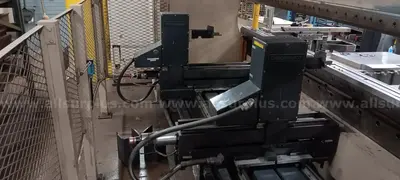

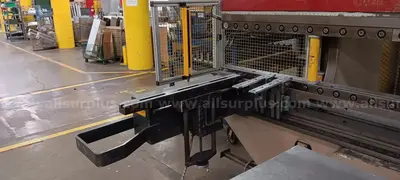

w/6-Axis Cincinnati CNC Back Gauge - Front Gage
"Auto Crown" Automatic Crowning Attachment

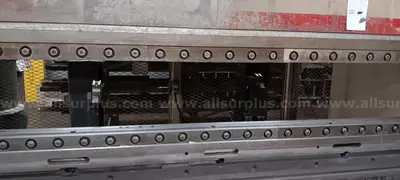

Power Clamp Hydraulic Die Holding Attachment
2' Horn Extension On Left Hand Side
No Pit Required

CATALOG SPECIFICATIONS:
Tonnage Capacity, Medium Or Low Speed 230 TON
Tonnage Capacity, Full Forming Speed 190 TON
Overall Length of Bed and Ram 14'
Distance Between Housings 10'6.5"
Bending Capacity 12'9" x 1/4"
Bending Capacity 8'3 x 3/8"
Stroke Length 10"
Open Height 17"
Closed Height 7"
Throat Depth 8"
Ram Speed, High Approach 230 IPM
Ram Speed, Variable Forming 1 to 45 IPM
Ram Speed, Variable Return 1 to 250 IPM
Hydraulic Motor, Horsepower 25 HP
Weight, Approximately 41000 LBS

F.O.B. ON WAY IN
