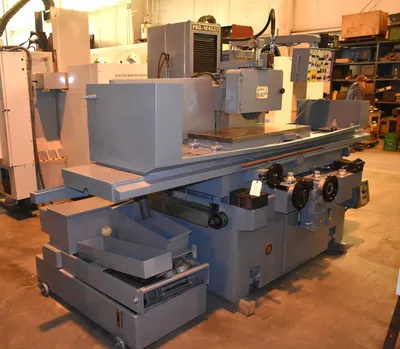

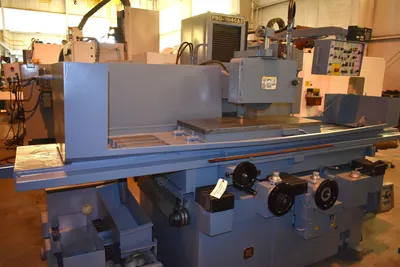

16" x 40" CHEVALIER "FSG-1640AD" 3-AXIS FULLY AUTOMATIC HORIZONTAL-SPINDLE SURFACE GRINDER

16" x 40" CHEVALIER FULLY-AUTOMATIC HYDRAULIC-FEED
3-AXIS HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No G4858002, Model FSG1640AD,

EQUIPPED WITH:

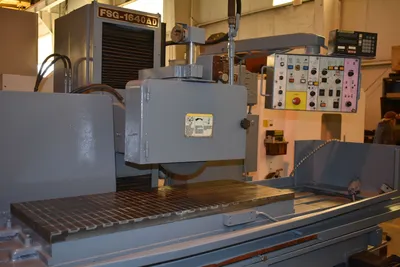

16" x 40" Walker Electro-Magnetic Chuck w/Controls

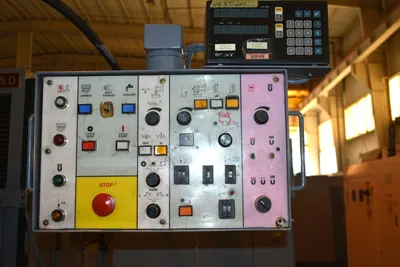

Sony 2-Axis Digital Readouts
Surface & Plunge Grinding Capabilities
Incremental Power Down Feed
Overhead Wheel Dresser
Box Type Linear Guideway Roller System
Coolant System w/Paper Filter

CATALOG SPECIFICATIONS:
Table Clamping Surface, W x L 15.75" x 39"
Grinding Width Capacity, Maximum 16"
Grinding Length Capacity, Maximum 40"
Height Table to Spindle Center, Maximum 24.375"
Table Longitudinal, Power 41.31"
Table Longitudinal, Manual 43.25"
Cross Travel Automatic, Maximum 16"
Cross Travel Manual, Maximum 18"
Grinding Wheel Diameter, Maximum 14"
Grinding Wheel Width, Maximum 2"
Grinding Wheel Hole Diameter 5"
Table Longitudinal Feeds, Range 16 to 82 FPM
Automatic Transverse Increments, Range .125" to 2"
Automatic Vertical Infeed, Range .00005" to .002"
Floor Space Required, L x W 158" x 68"
Overall Height 76"
Weight Approximately 8000 LBS

F.O.B. ON WAY IN
