VF-1 HAAS CNC VERTICAL MACHINING CENTER - 2020 - 20-position automatic tool changer - #40 taper

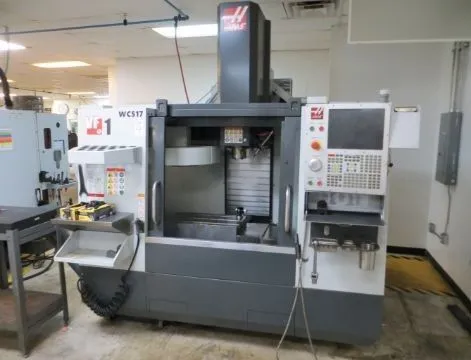

VF-1 HAAS HIGH POWER CNC VERTICAL MACHINING CENTER
New 2020, Serial No 1172570, Model VF-1

EQUIPPED WITH:
Haas CNC Control
20-Position Automatic Tool Changer (Carousel Type)
30 HP Direct-Drive Spindle
Rigid Tapping
Automatic Air Gun
Coolant System - Chip Auger

CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 14" x 26"
Table Load Capacity 3000 LBS
Table Longitudinal Travel (X-Axis) 20"
Saddle Cross Travel (Y-Axis) 16"
Quill Vertical Travel (Z-Axis) 20"
Spindle Nose to Table, Maximum 24"
Spindle Nose to Table, Minimum 4"
Tool Diameter Full, Maximum 3.5"
Tool Weight, Maximum 12 LBS
Spindle Taper #40
Spindle Speeds, Range 0 to 8100 RPM
Cutting Feedrate, Maximum 650 IPM
Rapid Traverse 1000 IPM
Spindle Motor, Horsepower Rating 30 HP
Electrical System 440/3/60
Weight, Approximately 8000 LBS

F.O.B. ON WAY IN
