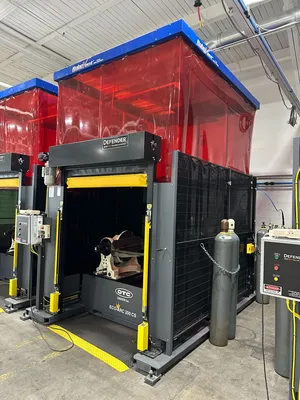

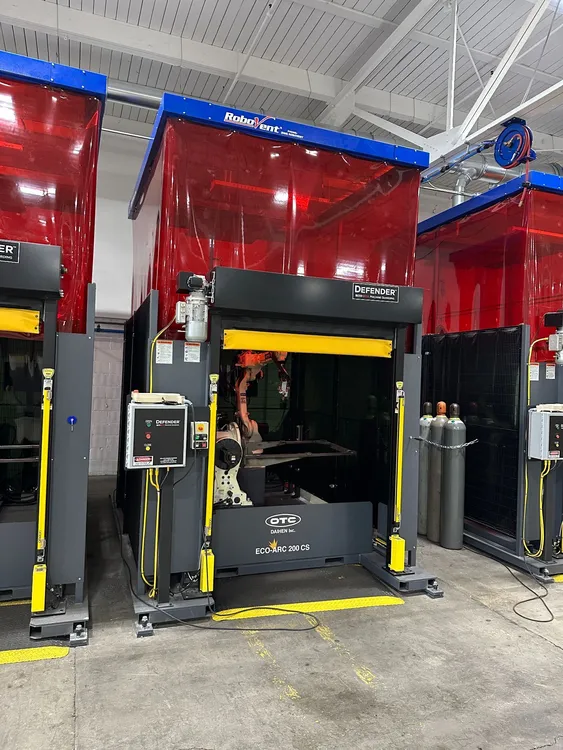

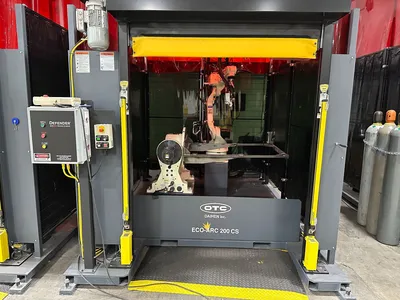

ECO-ARC 200 CS OTC DAIHEN 8-AXIS CNC ROBOTIC WELDING CELL

ECO-ARC 200 CS OTC DAIHEN 8-AXIS CNC ROBOTIC WELDING CELL

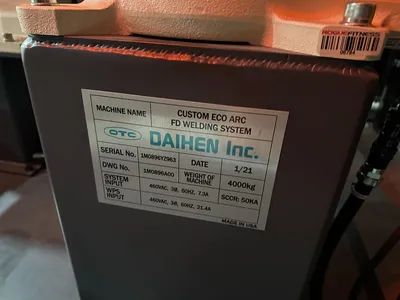

New 2022, Serial No 1MO896YZ963, Model ECO-ARC 200 CS

EQUIPPED WITH:

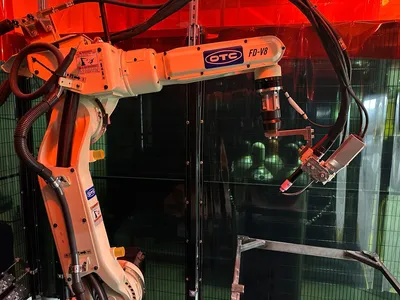

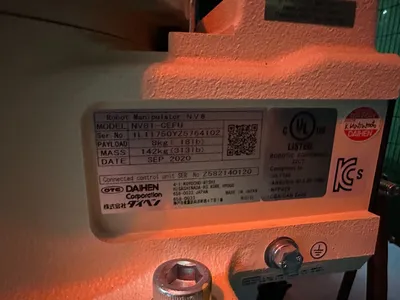

17.6LB (8KG) OTC DAIHEN "FD-V8" 6-AXIS Vertical Articulating
Robotic Arm w/AC Servo Motor

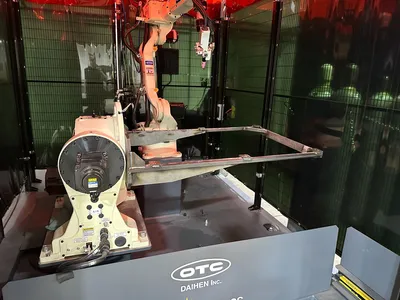

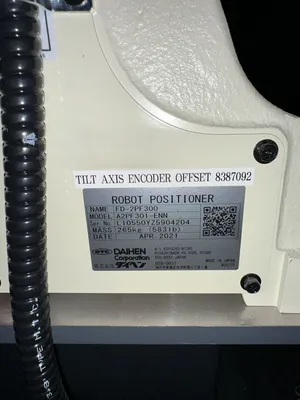

660 LB (300KG) OTC DAIHEN "A2PF301-ENN" Tilting
Rotating Welding Positioner w/2-Axis External
Tilt Kit

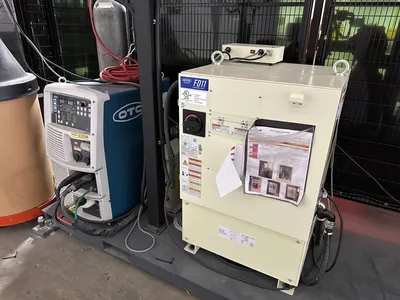

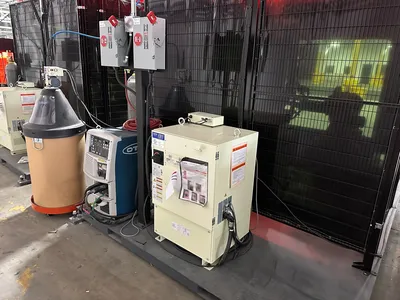

OTC DAIHEN "FD11-UV0000" Robotic Controller w/FD
Teach Pendant

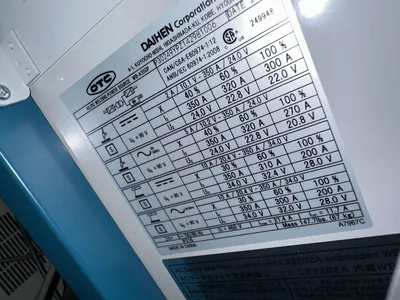

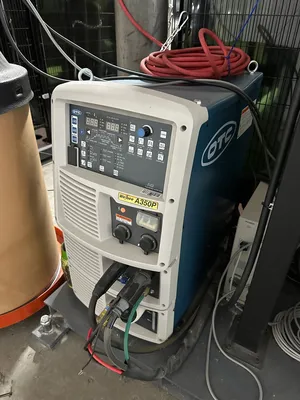

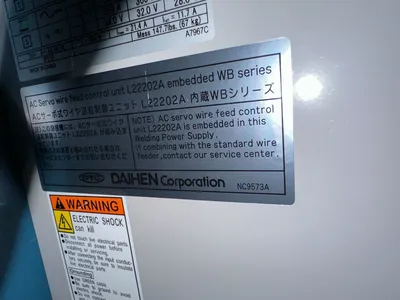

OTC DAIHEN "WB-A350P" Webee AC/DC Tig Inverter
Welding Power Supply

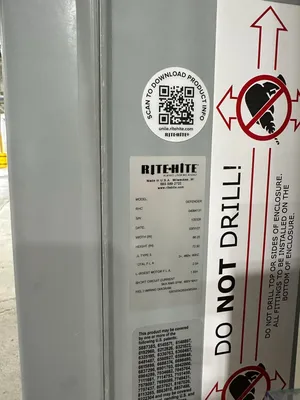

Rite-Hite Automated Roller Door

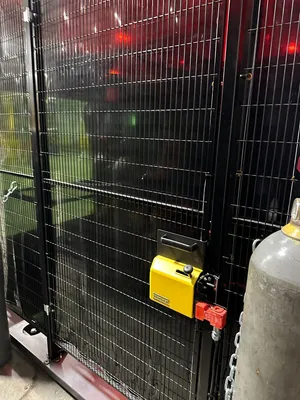

Omron Light Curtains - Tromax Safety Fencing
Common Base w/Integrated Trailer
Robot Pedestal - Positioner Riser
Welding Kit

CATALOG SPECIFICATIONS:
Arm Payload Capacity, Maximum 17.6 LBS 8KG
Arm Working Range, Rotation J1 Axis +/-170-DEGREES
Arm Working Range, Lower Arm J2 Axis -155 to +90-DEGREES
Arm Working Range, Upper Arm J3 Axis -170 to +190-DEGREES
Wrist Working Range, Swing J4 Axis +/-180-DEGREES
Wrist Working Range, Bending J5 Axis -50 to +230-DEGREES
Wrist Working Range, Twist J6 Axis +/-360-DEGREES
Positioner Payload, Maximum 660 LBS 300KG
Positioner Tilt Range -135 to +135-DEGREES
Positioner Rotation Range 400-DEGREES

NOTE: This Welding Cell Was Purchased Brand New
In 2021 And Never Put Into Production.

F.O.B. OHIO LOCATION
