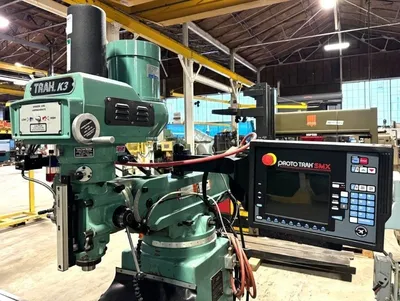

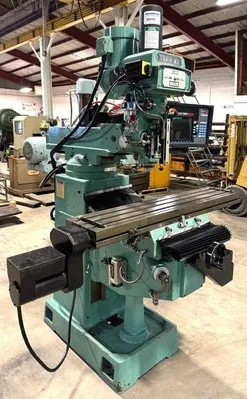

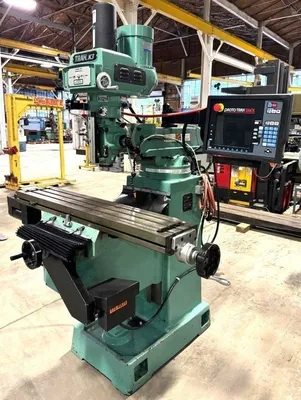

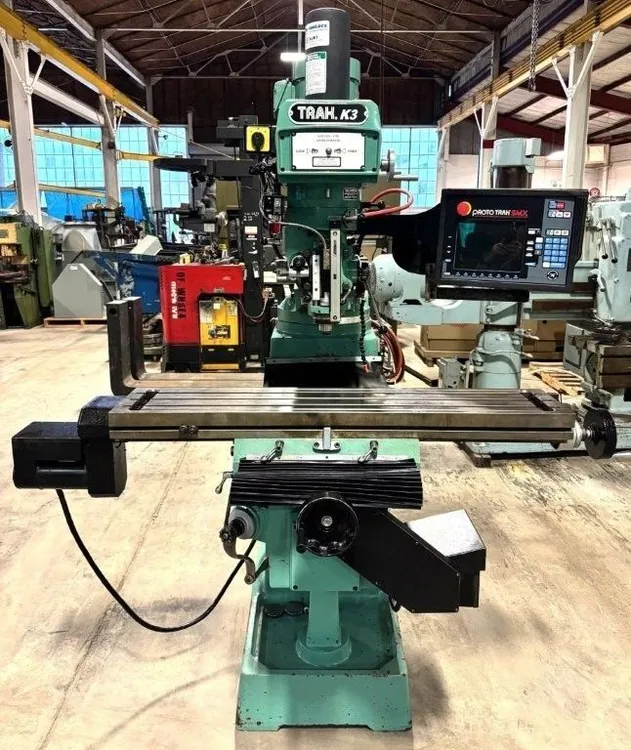

TRAK K3SX CNC VERTICAL MILL

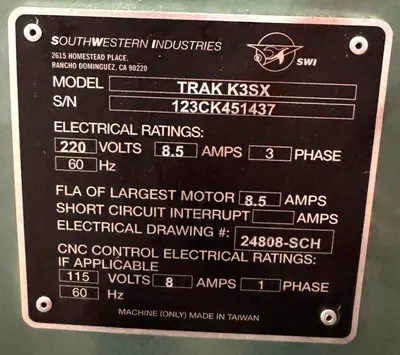

New 2012, serial No 1213CK451437, Model TRAK K3SX
EQUIPPED WITH:

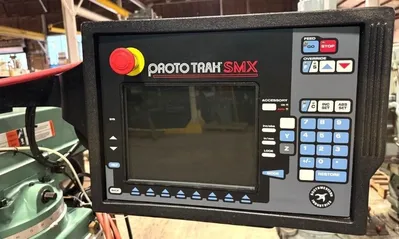

PROTO TRAK SMX CNC Control w/3-Axis Digital Readouts

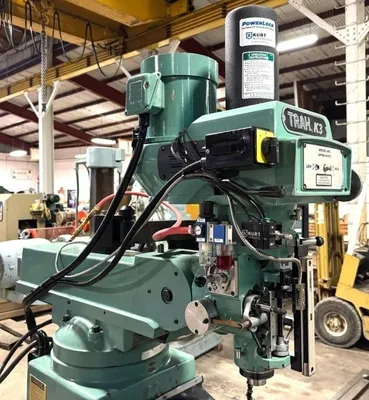

Kurt PowerLock Automatic Power Draw Bar
One Shot Lubrication System
3 HP Spindle Motor
CATALOG SPECIFICATIONS:

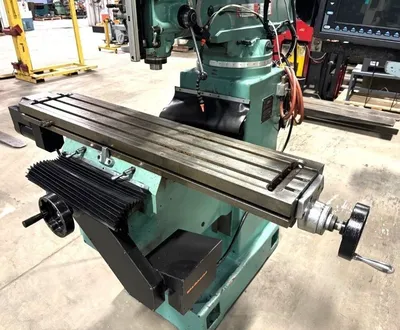

Table Overall Dimensions, L x W 50” x 10”
Table Working Surface, L x W 50” x 10”
Table Longitudinal Travel, (X-Axis) 32”
Saddle Cross Travel, (Y-Axis) 16”
Knee Verical Travel, (Z-Axis) 16”
Ram Travel 15”
Quill Travel 5”
Quill Diameter 3-3/8”
Spindle Taper R-8
Spindle Speeds Variable, Range 60 to 4200 RPM
Motor Horsepower 3 HP
Weight Approximately 3000 LBS
F.O.B. CINCINNATI, OHIO
