78" (6'6") x 1" GRENEN/BRANCH "HPV 24-2" FULLY-HYDRAULIC INITIAL PINCH PLATE BENDING ROLL w/ANGLE BENDING ATTACHMENT
Sold

78" (6'6") x 1" GRENEN/BRANCH "HPV 24-2" FULLY-HYDRAULIC INITIAL PINCH PLATE BENDING ROLL w/ANGLE BENDING ATTACHMENT

Plate Bending Rolls
Manufacturer:
GRENEN
Model:
HPV 24-2
Stock #:
30748

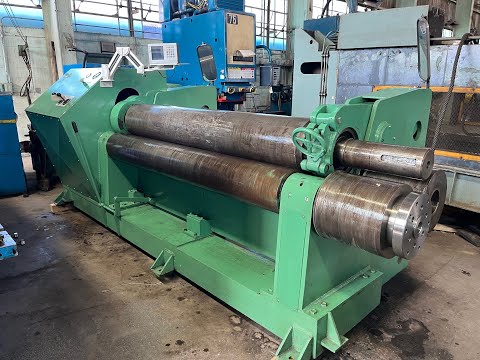

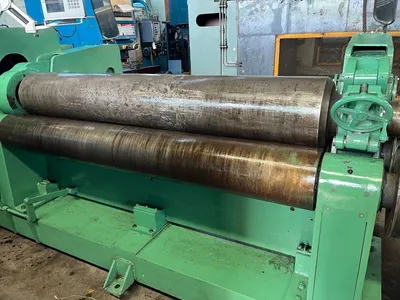

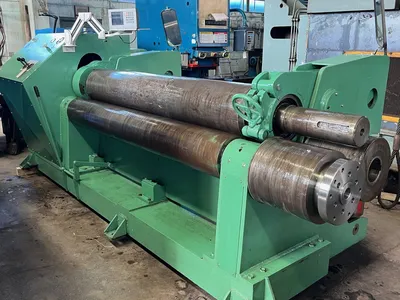

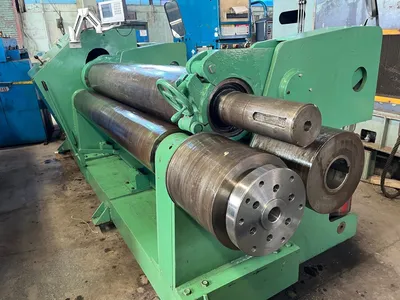

6'6" (2M) x 1" (24MM) GRENEN/BRANCH "HPV 24-2" FULLY-HYDRAULIC INITIAL PINCH PLATE BENDING ROLL w/ANGLE BENDING ROLL ATTACHMENT - Swing Away Top Roll Loading - 13-3/4" top roll diameter - 11" bottom rolls diameter - Heidenhan Digital Readouts
Length of Rolls7'2.1 m
(Init/Dbl Pinch or Pyramid)'INIT PINCH''INIT PINCH'
Max Thickness1"25.4 mm
# Rolls33
Hyd/Mech'Hyd''Hyd'
Power Rear Roll (Yes/No)YESYES
Roll Diameter11"279.4 mm
Dimensions14' x 5'8" x 6'14' x 5'8" x 6'

6'6" (2M) x 1" (24MM) GRENEN BRANCH
FULLY-HYDRAULIC INITIAL PINCH PLATE BENDING ROLL
W/ANGLE BENDING ATTACHMENT

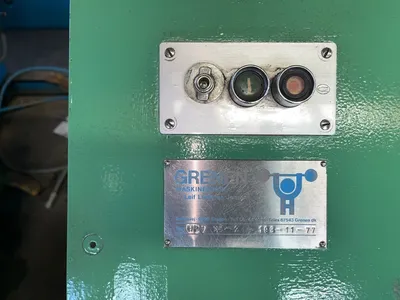

Serial No 193-11-77, Model HPV 24-2

EQUIPPED WITH:

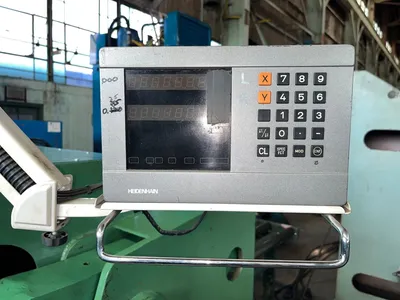

Heidenhan Digital Readouts

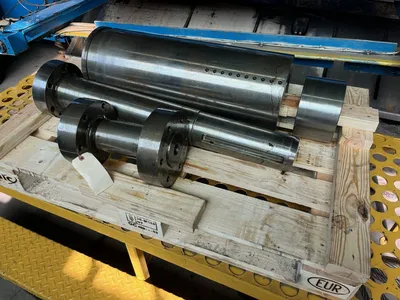

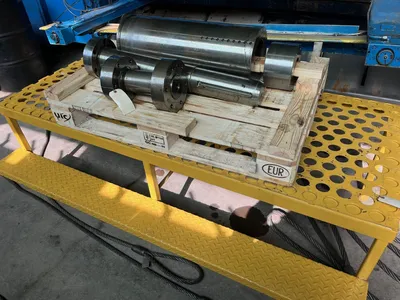

Angle Bending Roll Attachment

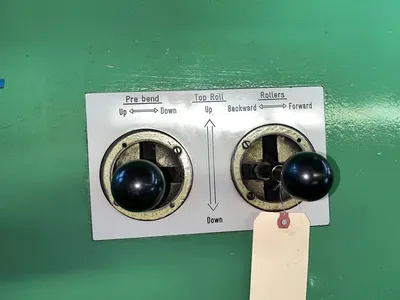

Prebend Up/Down Capabilities
Swing Away Top Roll
Forward & Reversing
Roller Table - Gauging

CATALOG SPECIFICATIONS:
Plate Bending Capacity 78" x 1"
Plate Bending Capacity 2M x 24MM
Length of Rolls Between Housings 84"
Top-Roll Diameter 13-3/4"
Bottom-Rolls Diameter 11"
Rolling Speed, Variable 0 to 23 FPM 0 to 7 MPM
Hydraulic Fluid Capacity 50 GALLONS 190 LITERS
Floor Space Required, L x D 14' x 5'8"
Overall Height 6'

F.O.B. OUR WAREHOUSE
