100 TON ENERPAC "RR1006" VERTICAL HYDRAULIC EXPANDER w/48" DIAMETER TABLE - 6.6" Stroke

100 TON ENERPAC VERTICAL HYDRAULIC EXPANDER
Cylinder Model RR1006, Pump Model PER2045
Pump Product Code No P2896C

EQUIPPED WITH:
Enerpac RR1006 Double-Acting Hydraulic Cylinder
1 HP Enerpac PER2045 Electric Hydraulic Pump w/Pendant
48" Diameter Table - 8" Diameter Wedge-Type Cone

CATALOG SPECIFICATIONS:
Cylinder Tonnage Capacity, Advance 103.2 SHORT TONS
Cylinder Tonnage Capacity, Retract 48 SHORT TONS
Stroke Length 6.63"
Cylinder Bore Diameter 5.13"
Operating Pressure, Maximum 10000 PSI
Pump Flow Rate at 0 PSI 280 CU IN/MIN
Pump Flow Rate at 200 PSI 250 CU IN/MIN
Pump Flow Rate at 5000 PSI 45 CU IN/MIN
Pump Flow Rate at 10000 PSI CU IN/MIN
Hydraulic Pump Motor, Horsepower 1 HP
Electrical System 115/1/60
Overall Dimensions, D x H 48" x 42"

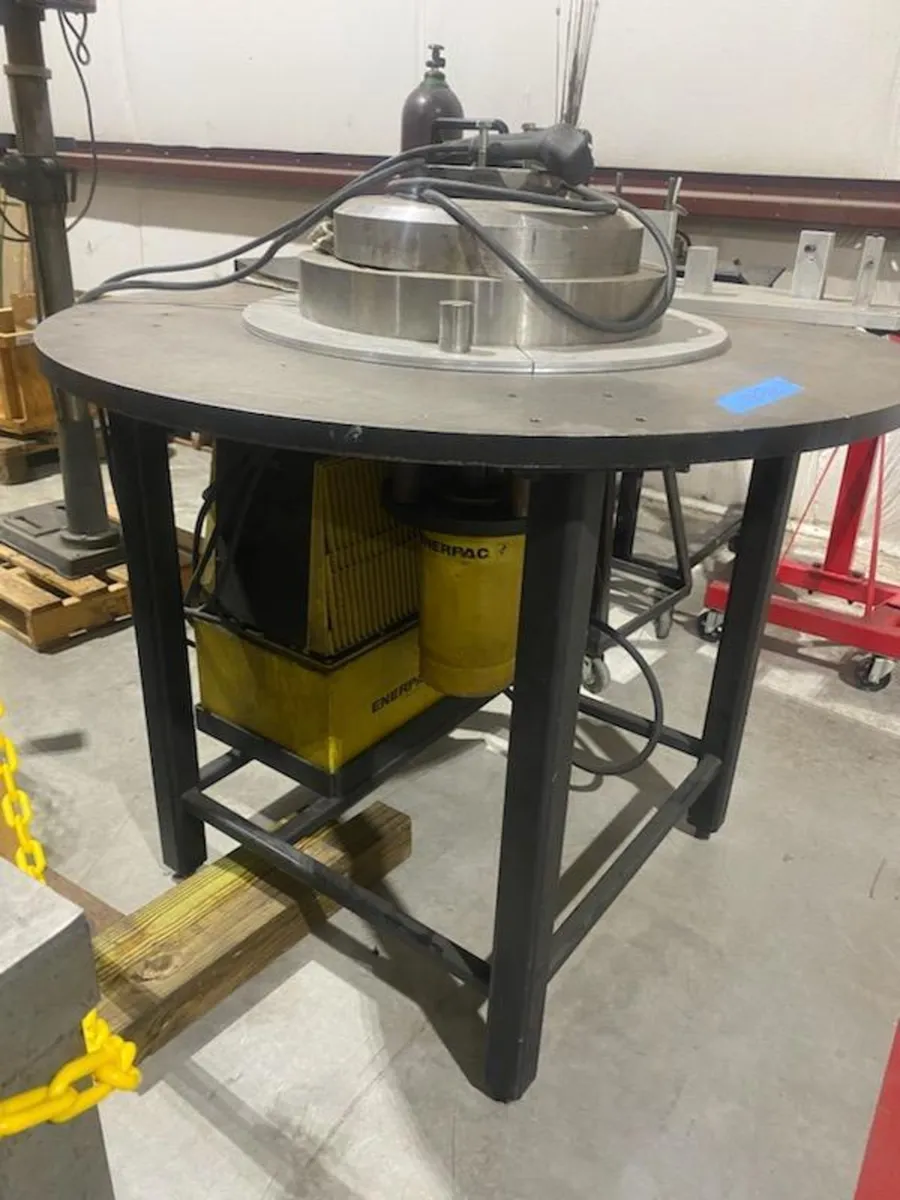

NOTE: The Rings In The Photo Are NOT Included With This Machine.
They Were Considered Proprietary Property.

F.O.B. OUR WAREHOUSE
