12.5" x 20" MONARCH "10EE" TOOLROOM PRECISION ENGINE LATHE w/TAPER ATTACHMENT - TOOLING

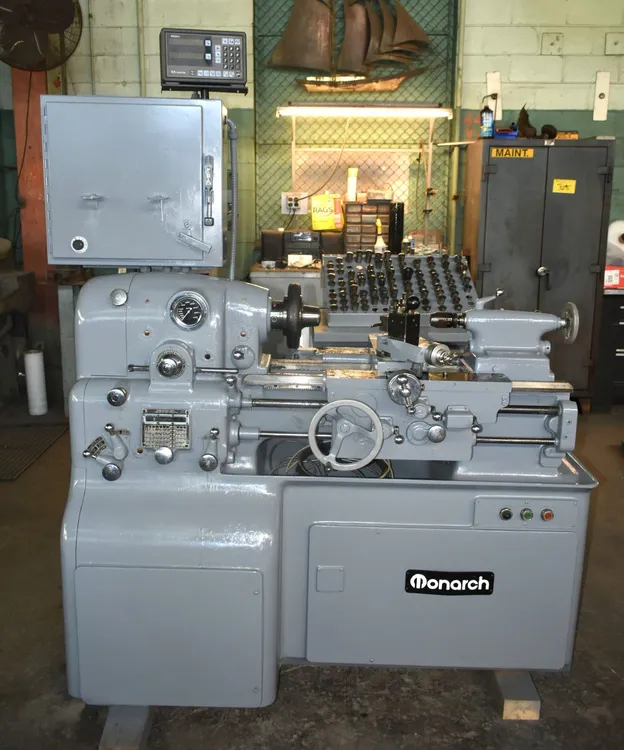

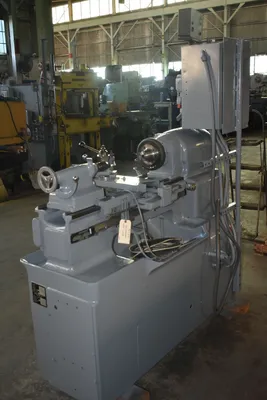

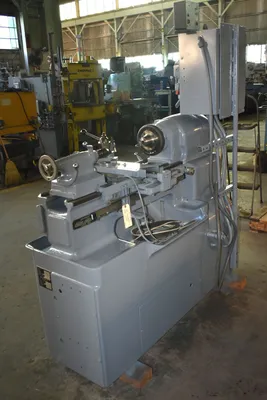

12.5" x 20" MONARCH "TOOLROOM" PRECISION ENGINE LATHE
Serial No 47002, Model 10EE, Series Toolroom

EQUIPPED WITH:
Mitutoyo 2-Axis Digital Readouts
Updated Dura "Pulse" Drive
Taper Attachment - Collet Chucks

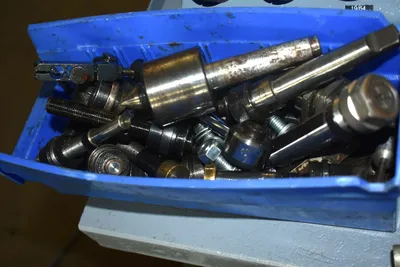

(2) Chucks - Faceplate - Extra Centers

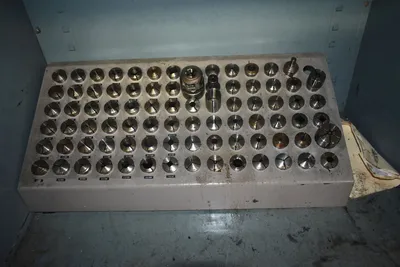

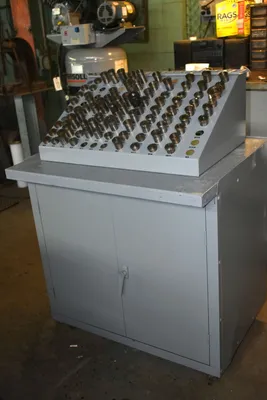

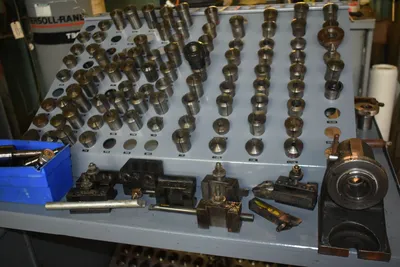

Steady Rest - Large Quantity Of Collets
Flame Hardened & Ground Bed Ways
Coolant System

CATALOG SPECIFICATIONS:
Hole Thru Spindle 1.41"
Swing Over Bed Ways, Rated 12.5"
Swing Over Cross-Slide 7.25"
Distance Between Centers 20"
Tailstock Spindle Diameter 1.25"
Tailstock Spindle Travel 3.5"
Spindle Speeds, Variable Range 0 to 4000 RPM
(50) Carriage Longitudinal Feeds .0005 to .016 IPR
(60) Thread Changes, Range 3 to 184 TPI
Spindle Motor, Horsepower 5 HP
Electrical System 220-440/3/60
Floor Space Required, L x W 5'4" x 2'5"
Weight, Approximately 3450 LBS

F.O.B. OUR WAREHOUSE
