15" CLAUSING "1684" SINGLE SPINDLE BENCH-TYPE DRILL PRESS

15" CLAUSING "1684" SINGLE SPINDLE BENCH-TYPE DRILL PRESS

Have one to sell?
513-771-1952
sales@mohawkmachinery.com
$950.00 USD
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Single-Spindle Drills
Manufacturer:
CLAUSING
Model:
1684
Stock #:
30768
Status:
For Sale

Description

15" CLAUSING "1684" SINGLE SPINDLE BENCH-TYPE DRILL PRESS - 20" x 30" Clausing Bench - Manual Down Feed - 4000 RPM

Swing15"381 mm
Capacity (Mild Steel)0.5"12.7 mm
Capacity (Cast Iron)0.625"15.875 mm
Power0.8 hp0.6 kW
RPM4,000 RPM4,000 RPM

15" CLAUSING SINGLE-SPINDLE BENCH-TYPE DRILL PRESS
Serial No 512707, Model 1684,

EQUIPPED WITH:
Round-Column Design
Manual Down-Feed to Spindle
20" x 30" Clausing Bench

CATALOG SPECIFICATIONS:
Drilling Capacity, Mild Steel 1/2"
Drilling Capacity, Cast Iron 5/8"
Spindle Travel, Manual 4.75"
Swing to Center of Circle, Maximum 15"
Table Working Surface, W x L 24" x 32.5"
Quill Diameter 2"
Spindle Taper 2 MT

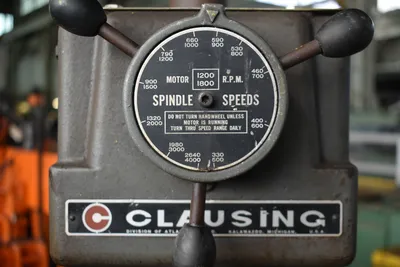

Spindle Speeds, Range 330 to 4000 RPM
Spindle Motor, Horsepower/RPM 0.75 HP/1140 RPM
Electrical System 115-230/1/60

F.O.B. OUR WAREHOUSE
