75 LB PA INDUSTRIES "SRWD2-2LC" DUAL REEL REWIND COIL REEL
Have one to sell?
ConditionUsed
1 available
$2,450.00 USD
75 LB PA INDUSTRIES 'SRWD2-2LC' DUAL REEL REWIND COIL REEL - 3" strip width - 30" spool OD - 0 to 50 RPM - 2021

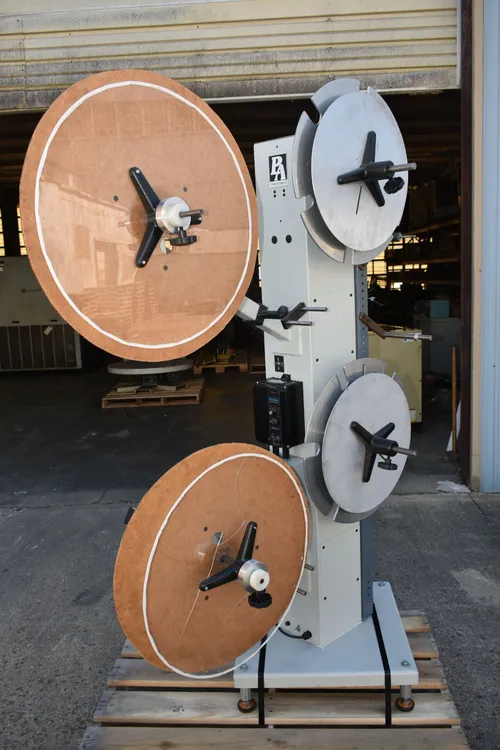

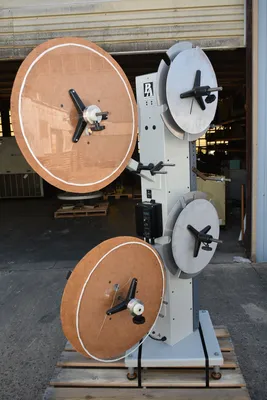

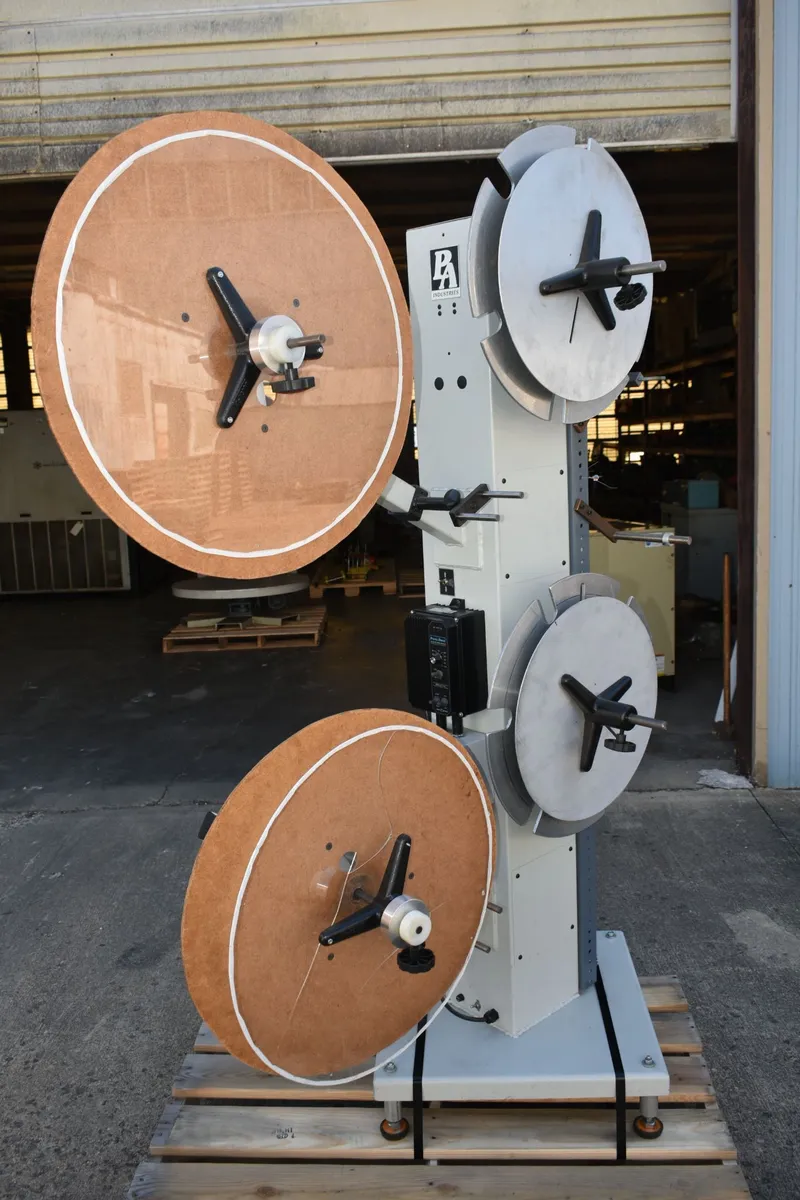

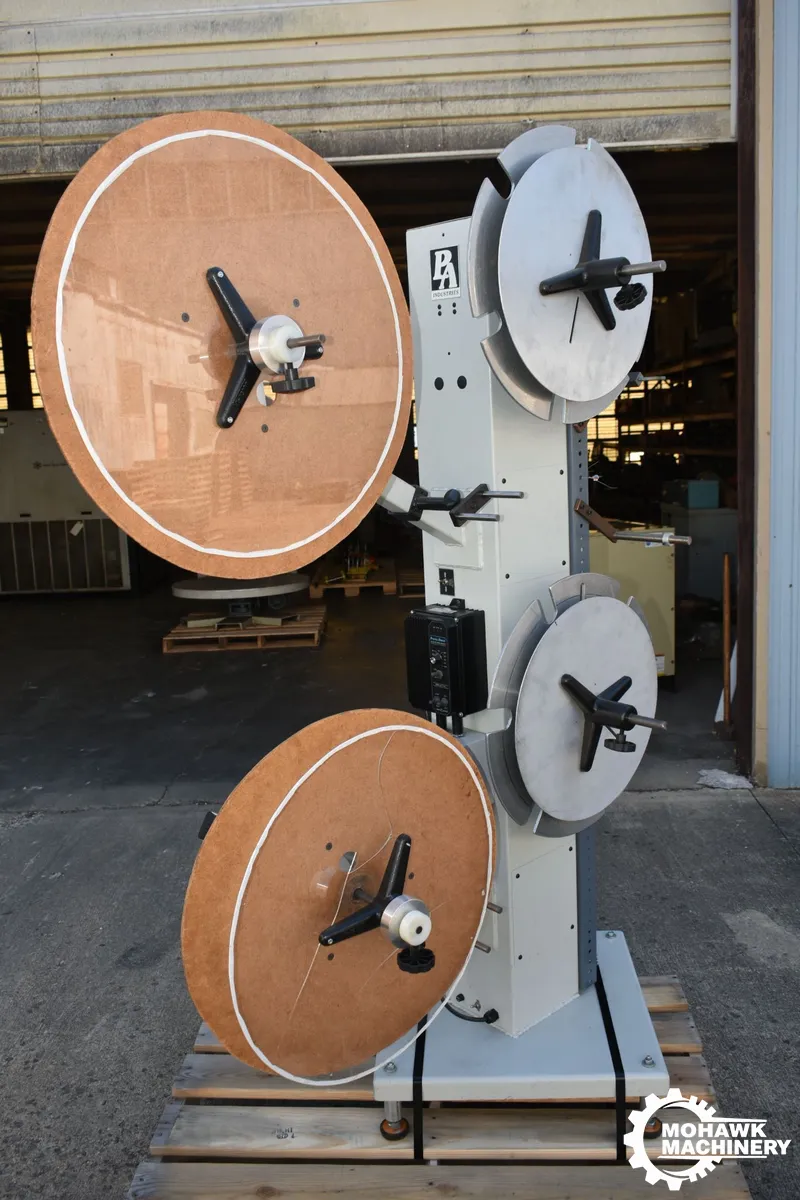

75 LB PA INDUSTRIES DUAL REEL REWIND COIL REEL
New 2021, Serial No 202106-12733, Model SRWD2-LC2
EQUIPPED WITH:
Single Phase Electrics
CATALOG SPECIFICATIONS:
Spool Weight Capacity 75 LBS 34KG
Strip Width, Maximum 3" 76.2MM
Shaft Diameter .75" 19MM
Spool OD, Maximum 30" 762MM
Speed Range 0 to 50 RPM

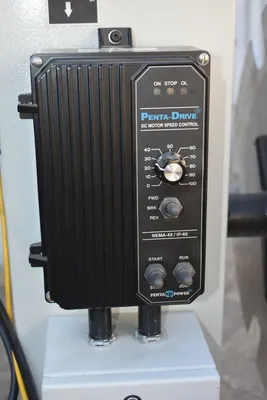

DC Drive Motor 1/8 HP .09KW
Electrical System 120/1/60
Weight Approximately 200 LBS 90.72KG
NOTE: P/A Rewind Reels Were Designed For The Electronics
Industries To Handle Delicate, Prefinished, Or Stamped
Materials Without Stretching, Deforming, Or In Any Way
Damaging The Strip To Be Rewound.
F.O.B. OUR WAREHOUSE
75 LB PA INDUSTRIES 'SRWD2-2LC' DUAL REEL REWIND COIL REEL - 3" strip width - 30" spool OD - 0 to 50 RPM - 2021
Imperial
| Max Weight Capacity | 75 lb |
| Max Width | 3" |
| Max Diameter | 30" |
75 LB PA INDUSTRIES DUAL REEL REWIND COIL REEL
New 2021, Serial No 202106-12733, Model SRWD2-LC2
EQUIPPED WITH:
Single Phase Electrics
CATALOG SPECIFICATIONS:
Spool Weight Capacity 75 LBS 34KG
Strip Width, Maximum 3" 76.2MM
Shaft Diameter .75" 19MM
Spool OD, Maximum 30" 762MM
Speed Range 0 to 50 RPM
DC Drive Motor 1/8 HP .09KW
Electrical System 120/1/60
Weight Approximately 200 LBS 90.72KG
NOTE: P/A Rewind Reels Were Designed For The Electronics
Industries To Handle Delicate, Prefinished, Or Stamped
Materials Without Stretching, Deforming, Or In Any Way
Damaging The Strip To Be Rewound.
F.O.B. OUR WAREHOUSE
