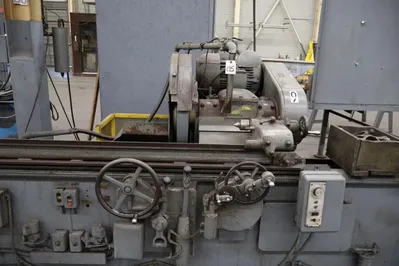

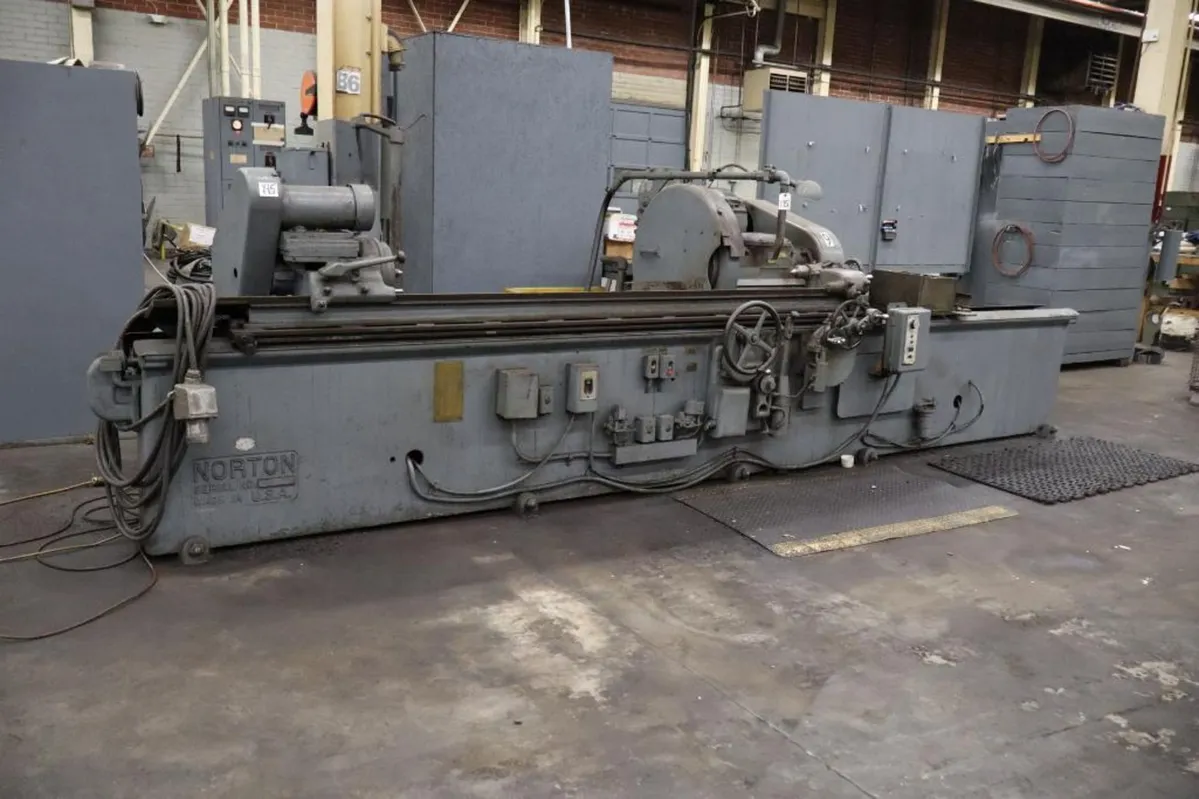

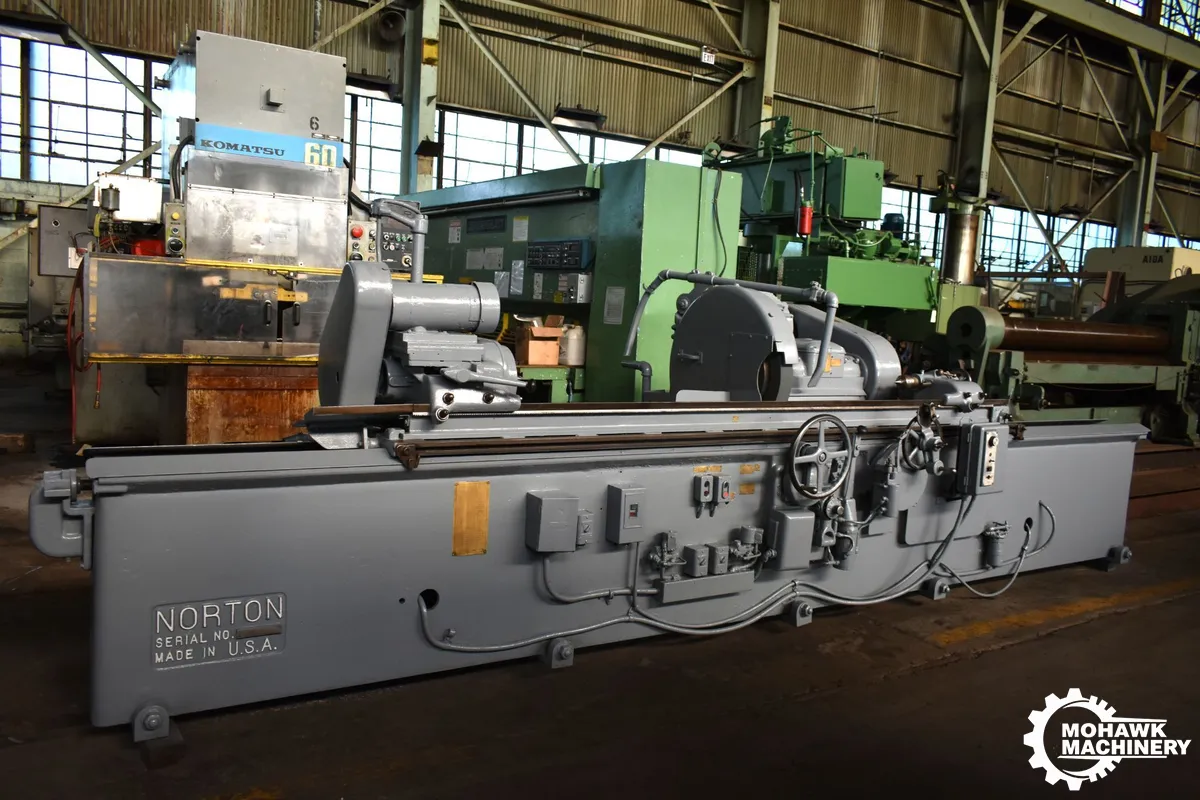

10" x 96" NORTON "C" PLAIN HYDRAULIC CYLINDRICAL GRINDER

10" x 96" NORTON PLAIN HYDRAULIC CYLINDRICAL GRINDER
Serial No C13658, Model C,

EQUIPPED WITH:
Hydraulic Longitudinal Table Feed
Semi-Automatic Pick Type In-Feed Attachment
Workhead W/Reliance Vari-Speed Drive
Tailstock (Lever-Type)
Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 10.5"
Grinding Diameter Over Table, Maximum 10"
Distance Between Centers, Nominal 96"
Grinding Wheel Diameter, Standard 4"
Grinding Wheel Width, Standard 3"
Grinding Wheel Hole Diameter 12"
Grinding Wheel Diameter, Maximum 30"
Grinding Wheel Width, 30" Wheel, Maximum 2.5"
Table Longitudinal Feeds, Range 5 to 360 IPM
Grinding Wheelhead Spindle Motor 15 HP
Electrical System 220-440/3/60
Floor Space Required, L x D 21'3 x 6'5'
Weight, Approximately 15000 LBS

F.O.B. OUR WAREHOUSE
