12' x 3/8" BERTSCH "8" 4-ROLL HYDRAULIC PLATE BENDING ROLL

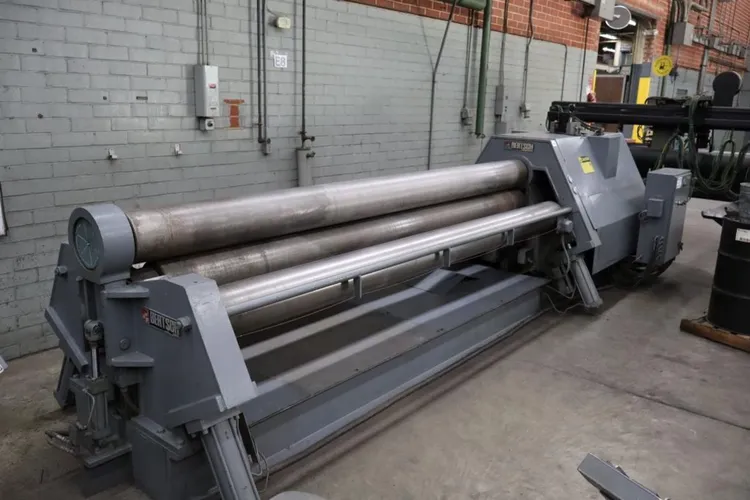

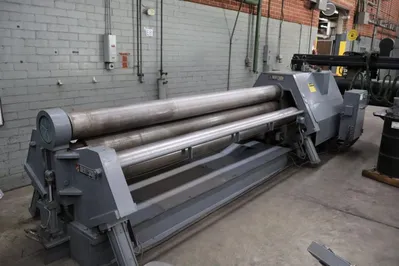

12’ x 3/8” BERTSCH DOUBLE-PINCH 4-ROLL HYDRAULIC PLATE BENDING ROLL
Serial No M-10772, Model 8

EQUIPPED WITH:

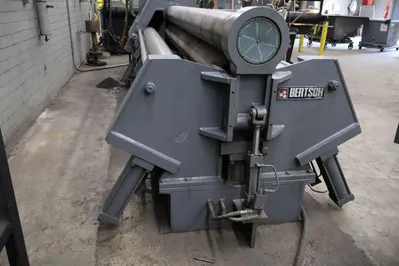

Hydraulic Hinge Drop End

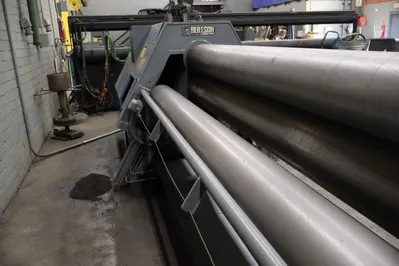

Hydraulically Adjusted Lower Pinch Roll And Two Side Rolls
Leveling System Insuring Parallelism Of Side Rolls And Tilt
Side Roll Adjustment Allowing Pre-Bend At Rated Capacity
From Either Side Of Machine

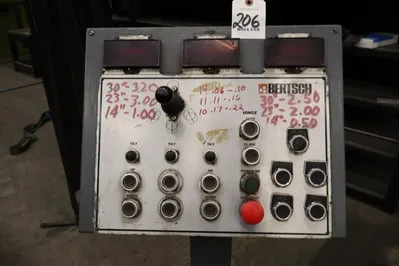

Control Stand w/(3) Digital Readouts - (3) Roll Tilting
Controls Up/Down & Hinge Open/Close

CATALOG SPECIFICATIONS:
Capacity Rating, Boiler Duty 12’ x 3/8”
Capacity Rating, Pipe Duty 12' x 1/4"
Top Roll Diameter 10"
Side Rolls Diameter 10”
Bottom Roll Diameter 11"
Motor Horsepower 10 HP
Overall Dimensions, L x W 224” x 66”
Weight Approximately 34000 LBS

F.O.B. OUR WAREHOUSE
