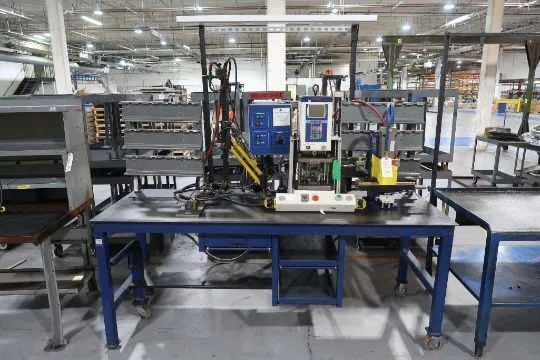

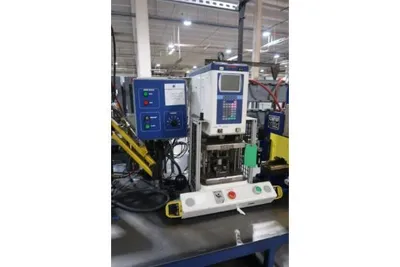

10kN JANOME “JP-104” ELECTRO-PRESS SERVO PRESS & COLUMBIA “SLIDE-A-MARK” PNEUMATIC MARKING PRESS

10kN JANOME STAND ALONE TABLE TYPE
ELECTRO PRESS HIGH-PRECISION SERVO PRESS
& 4 TON COLUMBIA MARKING TOOLS “SLIDE-A MARK”
PNEUMATIC MARKING PRESS
New 2012, Janome No 12-01P0 243, Series 4,
Model JP-104, Columbia Model 451 PR,

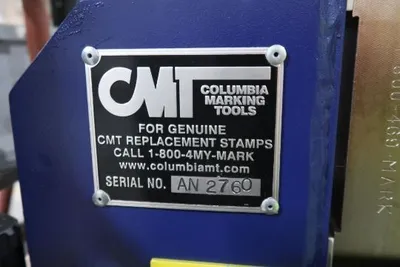

Columbia Serial No AN2760, Columbia Series Slide-A-Mark

EQUIPPED WITH:
Interactive Operation System w/LCD Display
Stand Alone Design
AC Servo Motor Drive w/High Precisison Ball Screw

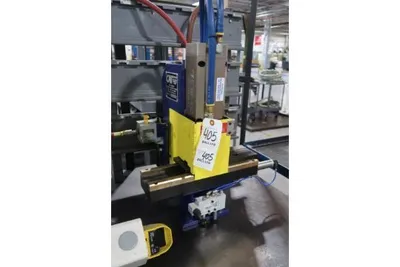

4 Ton Columbia Marking Tools “SLIDE-A-MARK” Pneumatic
Marking Press (Model 451PR S/N AN2760) W/Loading Arm
Work Table

JANOME CATALOG SPECIFICATIONS:
Pressing Capacity, Maximum 10kN
Pressing Capacity, Range 10N to 10kN
Sensing Capacity, Minimum 2N
Ram Stroke, Maximum 80MM
Ram Stroke, Increments 0.001MM
Ram Speed, Pressing 35MM/S
Ram Speed, Approaching 166MM/S
Ram Speed, Returning 166MM/S
Dimensions, W x D x H 520X585x875MM
Weight Approximately 100KG

COLUMBIA MARKING TOOLS AIR IMPACT MARKER PRESS SPECIFICATIONS:
Tonnage Capacity 4 Tons

F.O.B. OUR WAREHOUSE
