| Length of Rolls | 5' | 1.5 m |
| Max Thickness | 14" | 355.6 mm |
| # Rolls | 3 | 3 |
| Hyd/Mech | 'Mech' | 'Mech' |
| Power Rear Roll (Yes/No) | yes | yes |
| Roll Diameter | 6" | 152.4 mm |
| Dimensions | 102” x 40” x 48” | 102” x 40” x 48” |
| Weight | 4650 LBS | 4650 LBS |

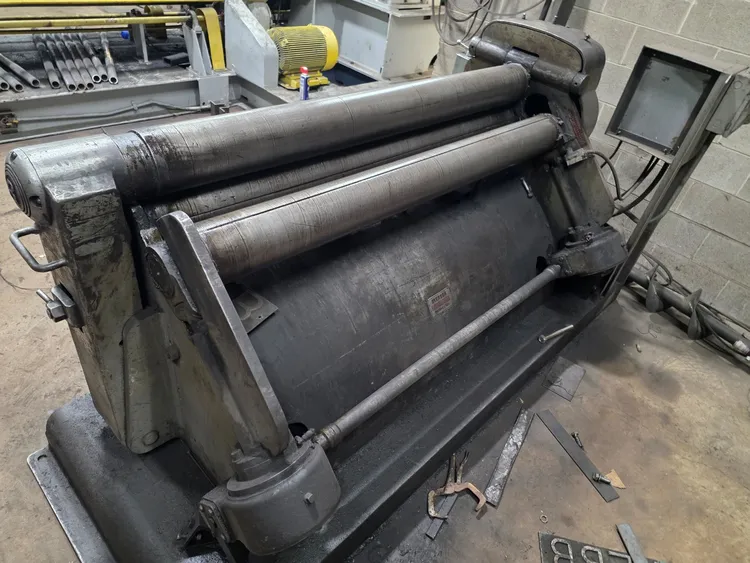

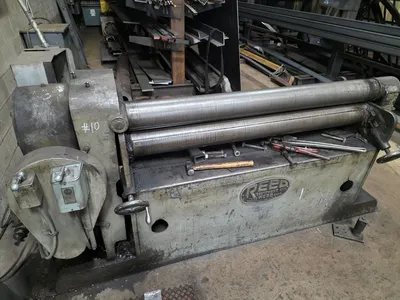

5’ x 1/4” REED WEB “605” INITIAL-TYPE PLATE BENDING ROLL
Model 605
Equipped With:
Manual Drop End
Three Roll Drive Gear System
Lower Roll Squaring Grooves
CATALOG SPECIFICATIONS:
Bending Capacity, Rated 5’ x 1/4”
Length Of Rolls 60”
Roll Diameters 6”
Rolling Speed 21 RPM
Motor Horsepower 1.5 HP
Base Length 102”
Overall Width 40”
Overall Height 48”
Weight Approximately 4650 LBS
F.O.B. OUR WAREHOUSE
