24" X 60" KENT “KGS-615AHD” 3-AXIS TRAVELING COLUMN HORIZONTAL SPINDLE HYDRAULIC SURFACE GRINDER - Walker Electro-Magnetic Chuck - Incremental Power Down Feed - Coolant Filtration System

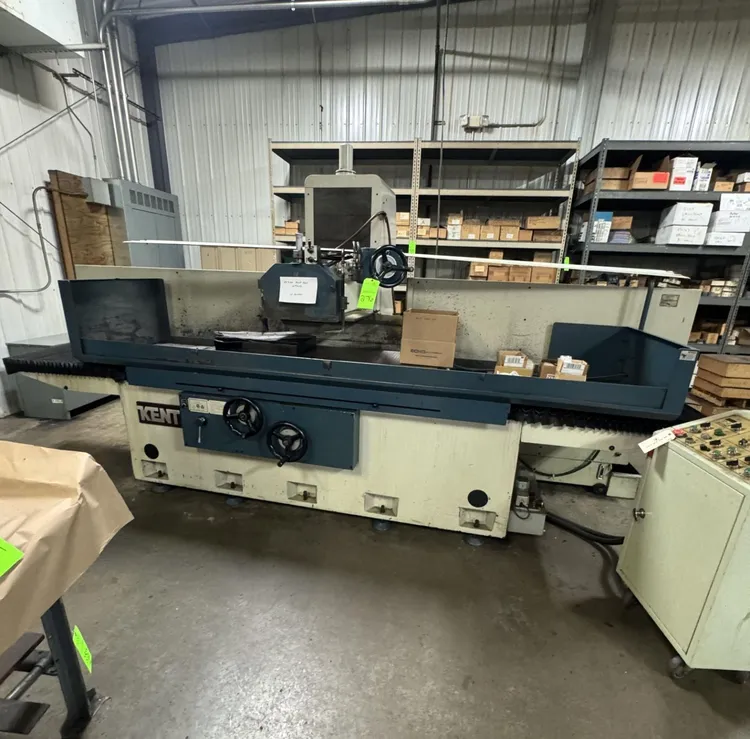

24” x 60” KENT 3-AXIS TRAVELING-COLUMN HORIZONTAL
SPINDLE HYDRAULIC SURFACE GRINDER
Serial No 98038501, Model KGS-615AHD
EQUIPPED WITH

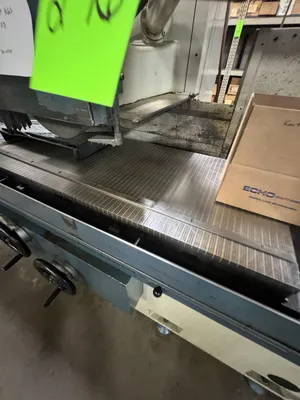

24” x 60” Walker Electro-Magnetic Chuck w/Controls

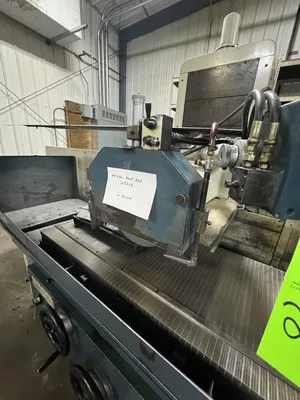

Overhead Hydraulic Wheel Dresser
Incremental Automatic Power Downfeed

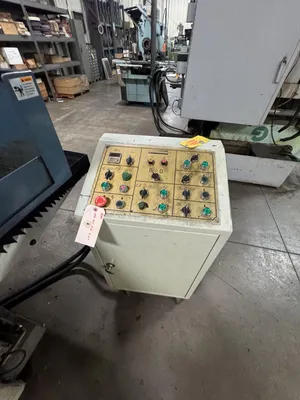

Stand-Alone Control Console - Rapid Elevation
Surface & Plunge Grinding Capabilities

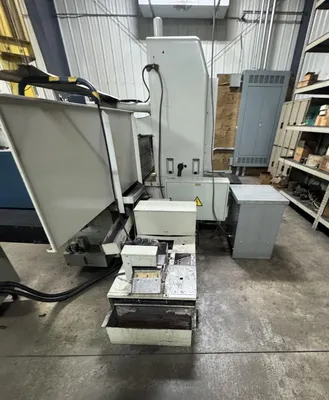

Coolant Filtration System w/Magnetic SEPERATOR
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 24” x 60”
Longitudinal Table Travel 63”
Cross Feed Table Travel 26”
Height Spindle Center to Table, Maximum 23.6”
Grinding WheeL Diameter 14” to 16”
Grinding Wheel Width 2”
Grinding Wheel Hole Diameter 5”
Grinding Spindle Speed 1740 RPM
Spindle Motor Horsepower 10 HP
Floor Space Required, L x W 228” x 96”
Overall Height 94”
Weight Approximately 13,750 LBS
F.O.B. OUR WAREHOUSE
