6.30" AMADA "TOGU-III-US" AUTOMATED TOOL GRINDER FOR TURRET PUNCH PRESS TOOLING
Servo-Controlled Wet Rotary Grinding - 3-Jaw Chuck - Transformer

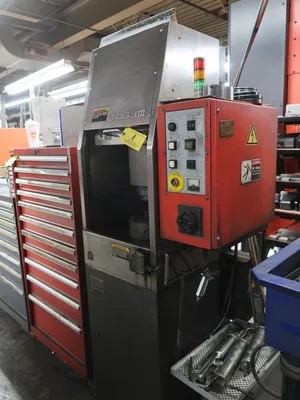

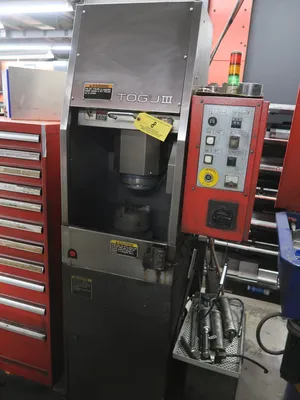

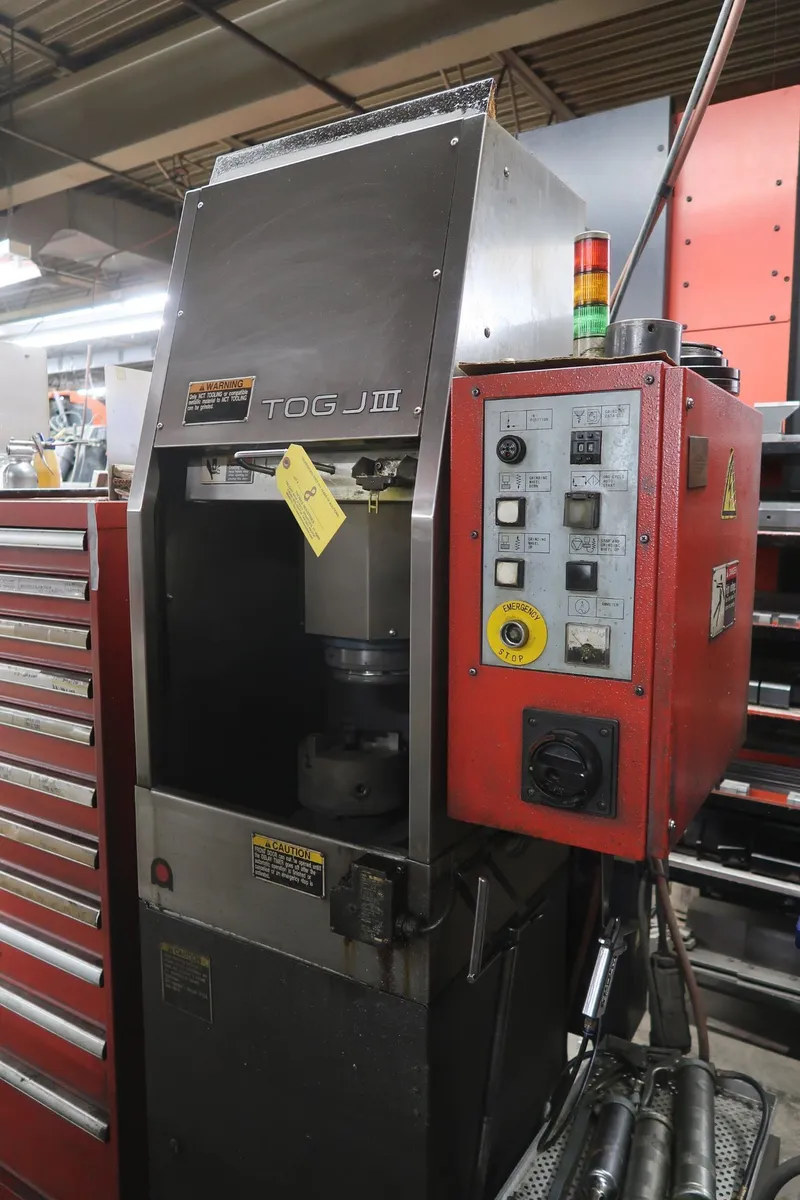

6.30" AMADA "TOGU-III-US" AUTOMATED TOOL GRINDER

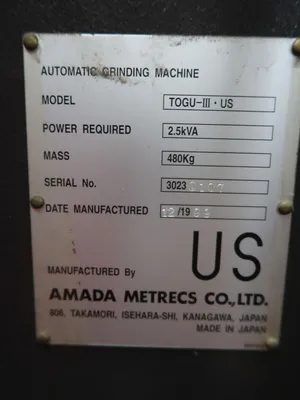

Serial No 302301107, Model TOGU-III-US
EQUIPPED WITH:
Servo-Controlled Wet Rotary Grinding Design

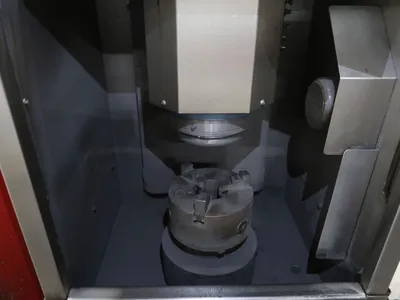

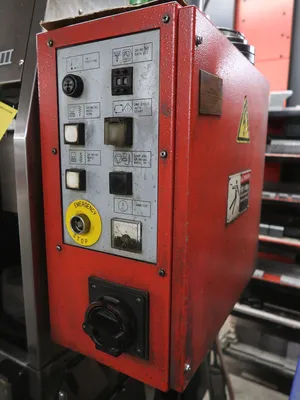

Control Panel - 3-Jaw Chuck
Main Axis DC Servo-Feed Motor
Southern Transformer Co Type AA 3-Phase Transformer
CATALOG SPECIFICATIONS:
Tool Diameter, Maximum 6.30"
Grinding Wheel, CBN 5.31"
Grinding, Maximum 0.039"
Main Axis Rotation Speed 3000 RPM
Main Axis Travel 9.45"
Main Axis Feed Speed-High 23.6 IPM
Main Axis Feed Speed-Middle 2.36 IPM
Main Axis Feed Speed-Low 0.0002 IPM
Table Rotation Speed 72 RPM
Main Axis Motor, Horsepower 2 HP
Main Axis Feed Motor, Horsepower .05 DC
Table Motor, Horsepower 0.134 HP
Weight Approximately 1100 LBS
NOTE: This Automated Tool Grinder Is Designed For High-Precision
Automated Grinding And Efficient Sharpening Of CNC Turret Punch
Press Tooling.
F.O.B. OUR WAREHOUSE
