16" X 32" OKAMOTO “ACC-16.32ST” 3-AXIS SADDLE-TYPE HORIZONTAL-SPINDLE SURFACE GRINDER - Electro-Magnetic Chuck - Incremental Power Down Feed - Coolant Filtration System

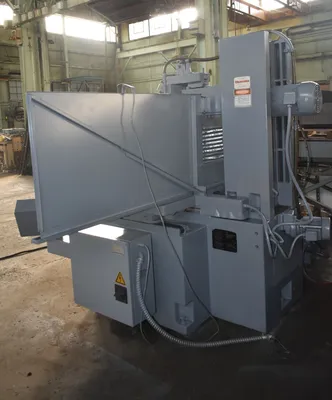

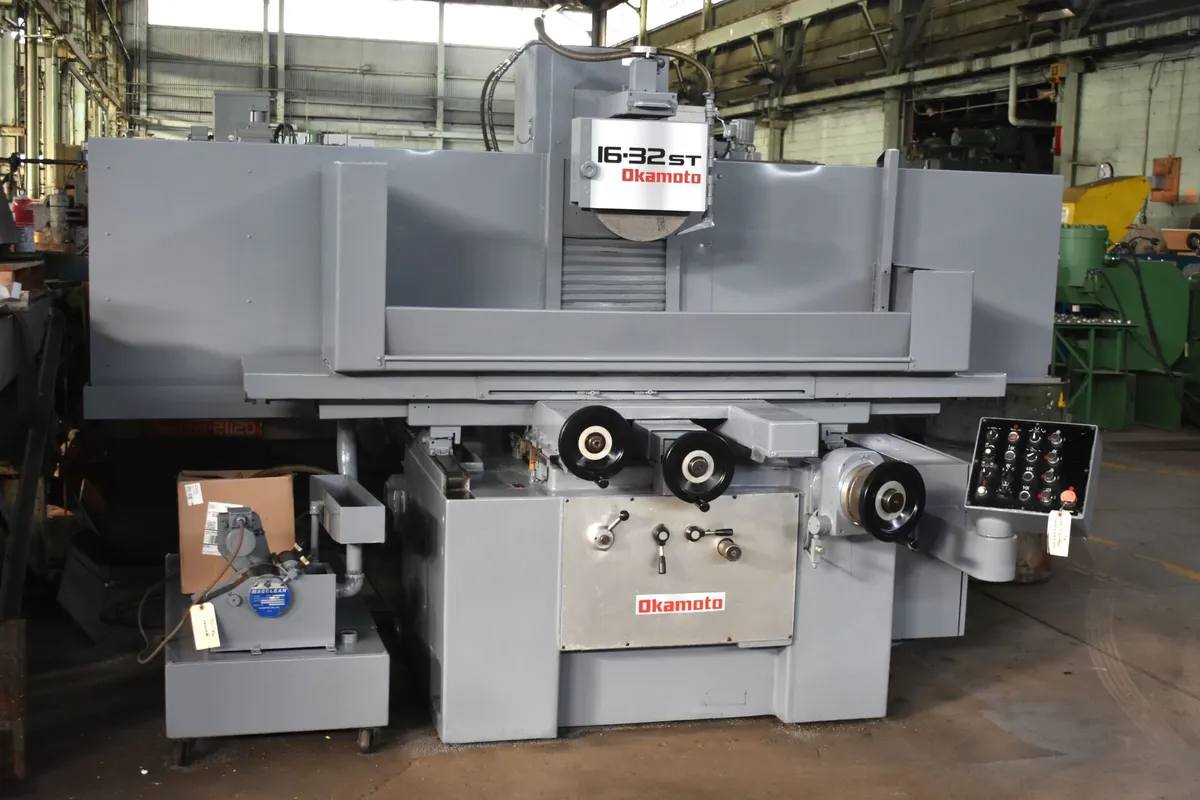

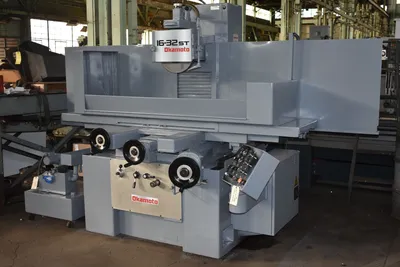

16” x 32” OKAMOTO 3-AXIS SADDLE-TYPE
HORIZONTAL-SPINDLE HYDRAULIC SURFACE GRINDER

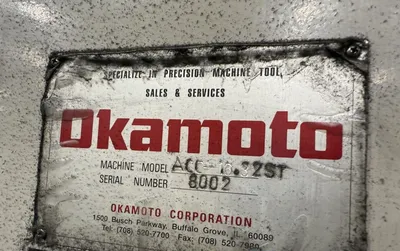

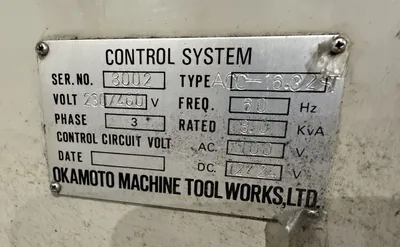

Serial No 8002, Model ACC-16.32ST
EQUIPPED WITH:

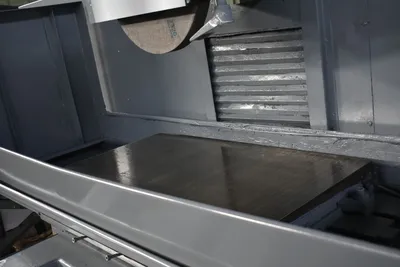

Electro-Magnetic Chuck
Incremental Power Down Feed
Hydraulic Overhead Wheel Dresser

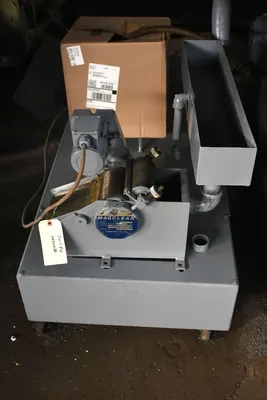

Coolant Filtration System
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 16” x 33.5”
Grinding Width Capacity 16”
Grinding Length Capacity 32”
Table Load Capacity 1540 LBS
Height Grinding Wheel to Table, Maximum 21.6”
Longitudinal Table Travel 37.5”
Cross Table Travel 17.5”
Longitudinal Table Speed, Variable 10 to 82 FPM
Cross Table Feed, Range .02 to 0.8 IPM
Automatic Down Feed, Variable .0002 to .0015 IPM
Grinding Wheel Diameter 12”
Grinding Wheel Width, Maximum 1.5”
Grinding Wheel Hole Diameter 5”
Grinding Wheel Motor, Horsepower 5 HP
Hydraulic System Motor, Horsepower 3 HP
Overall Dimensions, L x W 132” x 87”
Overall Height 82”
Weight Approximately 8800 LBS
F.O.B. OUR WAREHOUSE
