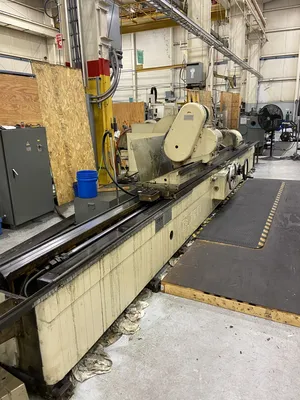

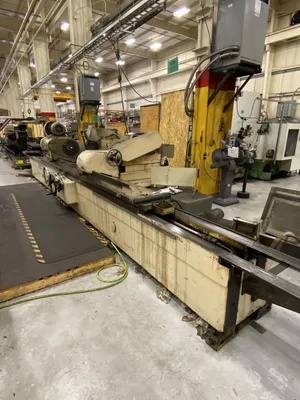

20” x ? SMTW/GREAT WALL PLAIN CYLINDRICAL GRINDER

21” x ? SMTW/GREAT WALL PLAIN CYLINDRICAL GRINDER
Serial No 76/527, Model NS SR

EQUIPPED WITH:
Some Steady Rests

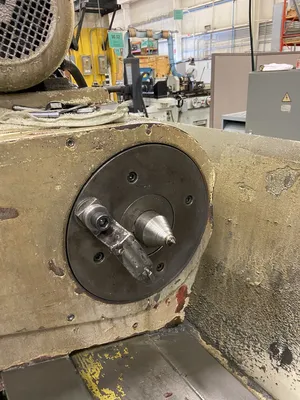

Dead Spindle Workhead

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 21”
Grinding Diameter w/30” Wheel 20”
Distance Between Centers, Maximum ?
Workpiece Weight Capacity, Between Centers 2206 LBS
Grinding Wheel Diameter, Maximum 30”
Grinding Wheel Width, Maximum 3”
Grinding Wheel Hole Diameter 12”
Grinding Wheel Surface Speed, Maximum 6889 SFPM
Grinding Wheel Rapid Approach 3.937”
Workhead Speed, Variable 16 to 160 RPM
Workhead Spindle Taper #6 MT
Tailstock Spindle Taper #6 MT
Tailstock Quill Travel 2.75”
Grinding Wheel Motor Horsepower 20 HP
Workhead Motor Horsepower 7.5 HP

F.O.B. ON WAY IN
