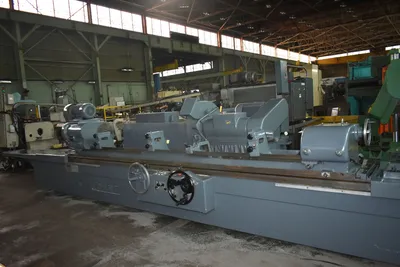

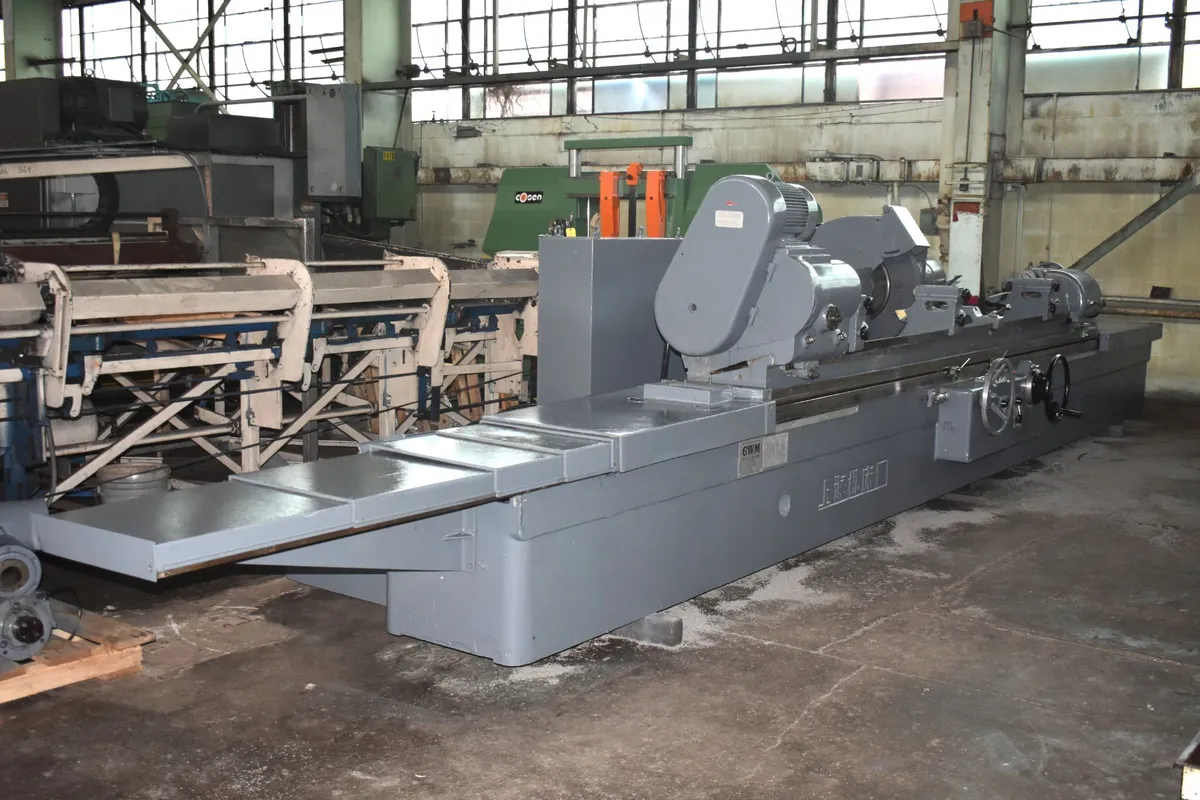

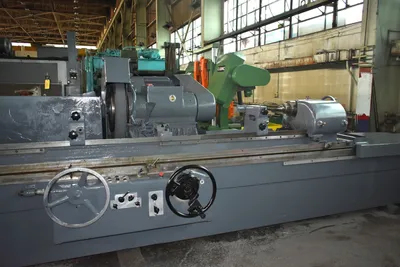

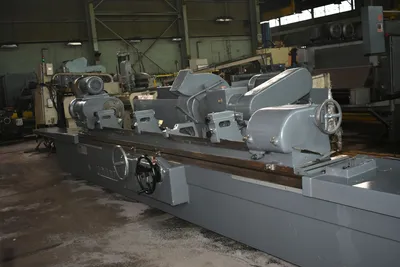

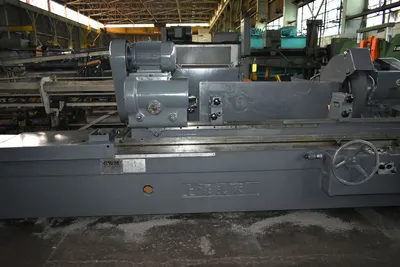

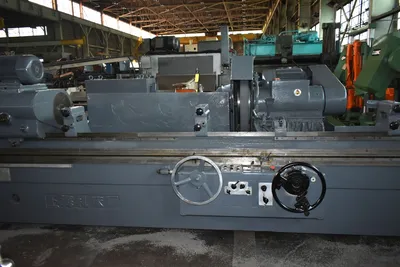

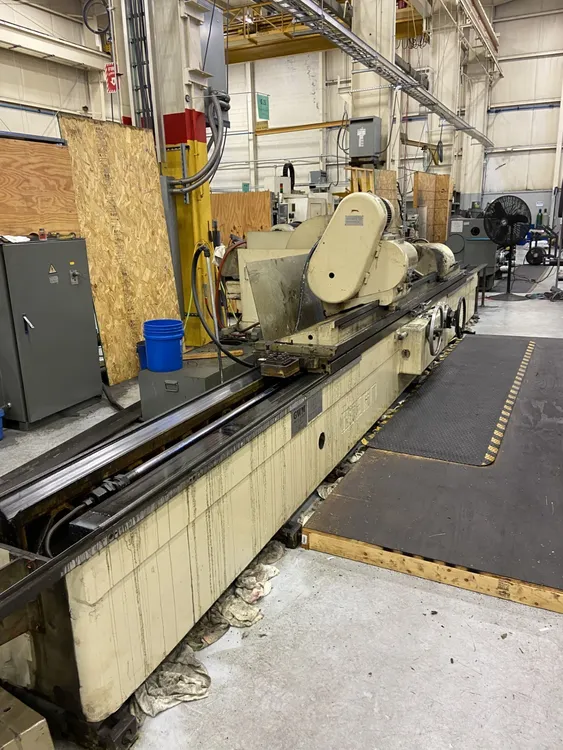

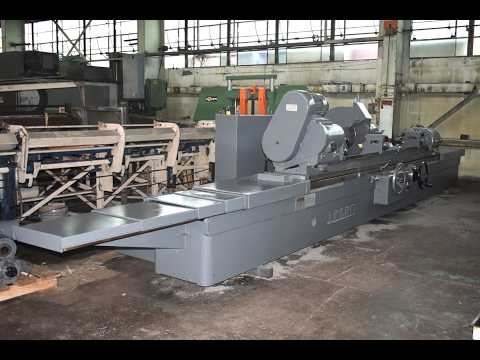

21” x 120" SMTW/GWM "20" PLAIN HYDRAULIC CYLINDRICAL GRINDER

21” x 120" SMTW/GWM PLAIN HYDRAULIC CYLINDRICAL GRINDER
Serial No 761, Model 20

EQUIPPED WITH:
Dead Spindle Workhead
(3) Work Rests - Way Covers - Splash Guards

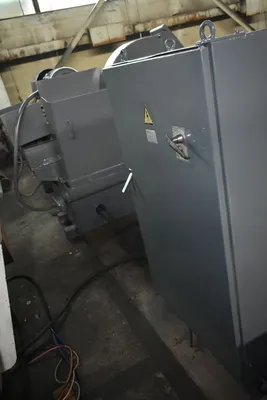

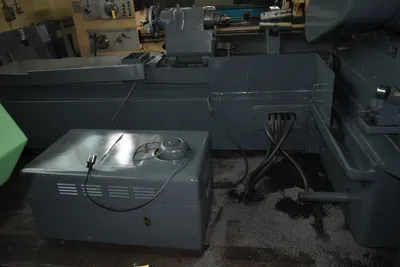

Hydraulic Unit - Gauging

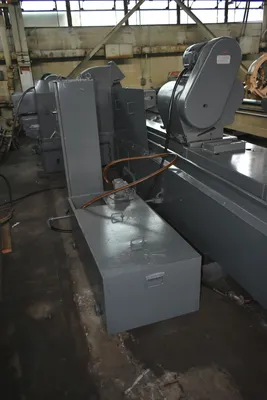

Coolant System (Tank & Pump)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 21”
Grinding Diameter w/30” Wheel 20”
Distance Between Centers, Maximum 120"
Workpiece Weight Capacity, Between Centers 2206 LBS
Grinding Wheel Diameter, Maximum 30”
Grinding Wheel Width, Maximum 3”
Grinding Wheel Hole Diameter 12”
Grinding Wheel Surface Speed, Maximum 6889 SFPM
Grinding Wheel Rapid Approach 3.937”
Workhead Speed, Variable 18 to 140 RPM
Workhead Spindle Taper #6 MT
Tailstock Spindle Taper #6 MT
Tailstock Quill Travel 2.75”
Grinding Wheel Motor Horsepower 20 HP
Workhead Motor Horsepower 2.9/4.8 HP

F.O.B. OUR WAREHOUSE
