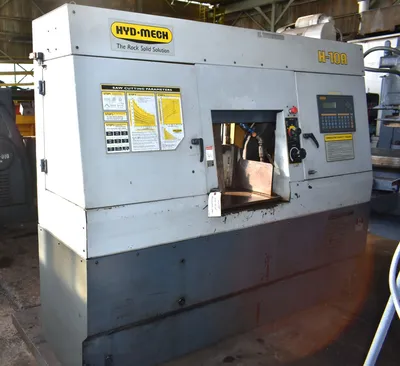

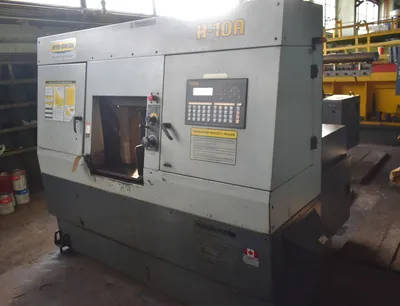

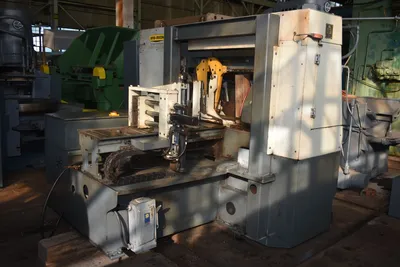

10” x 10” HYDMECH “H10A” AUTOMATIC HORIZONTAL BAND SAW

10” x 10” HYDMECH “H10A” AUTOMATIC HORIZONTAL BAND SAW

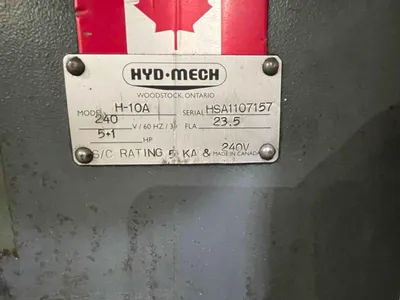

Serial No HSA1107157, Model H10A

EQUIPPED WITH:
Mitsubishi PLC Programmable Control
30” Automatic Shuttle Table
Automotive Multi-Indexing Up to 24” In
A Single Stroke
5 HP Direct Blade Drive
Hydraulic Chip Auger

CATALOG SPECIFICATIONS:
Round Stock Capacity, Maximum 10”
Flat Stock Capacity, Maximum 10” x 10”
Workload, Maximum 7700 LBS
Band Length 12’6”
Band Width 1.25”
Band Carrier Wheels, Diameter 16”
Band Speeds, Variable 50 to 350 SFPM
Shuttle Stroke, Range 0 to 24”
Blade Motor, Horsepower 5 HP
Hydraulic Motor Horsepower 1 HP
Overall Dimensions, L x W 68” x 83”
Overall Height 67”
Weight, Approximately 3500 LBS

F.O.B. OUR WAREHOUSE
