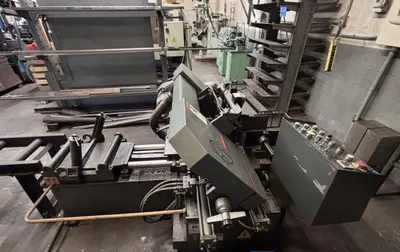

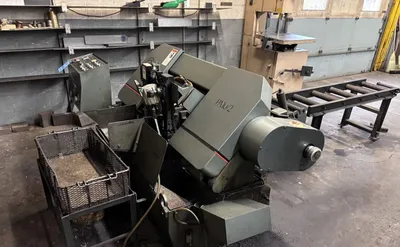

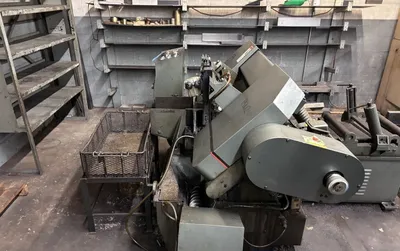

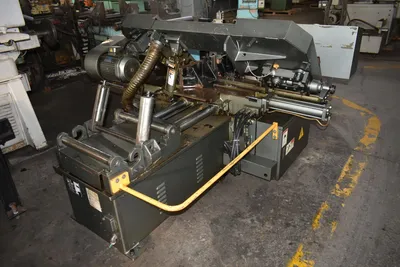

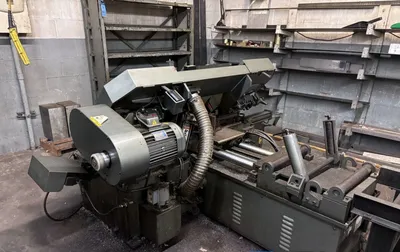

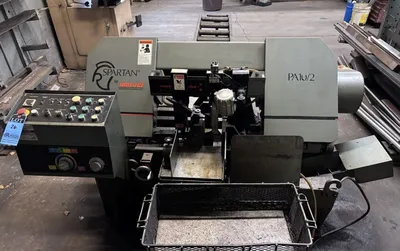

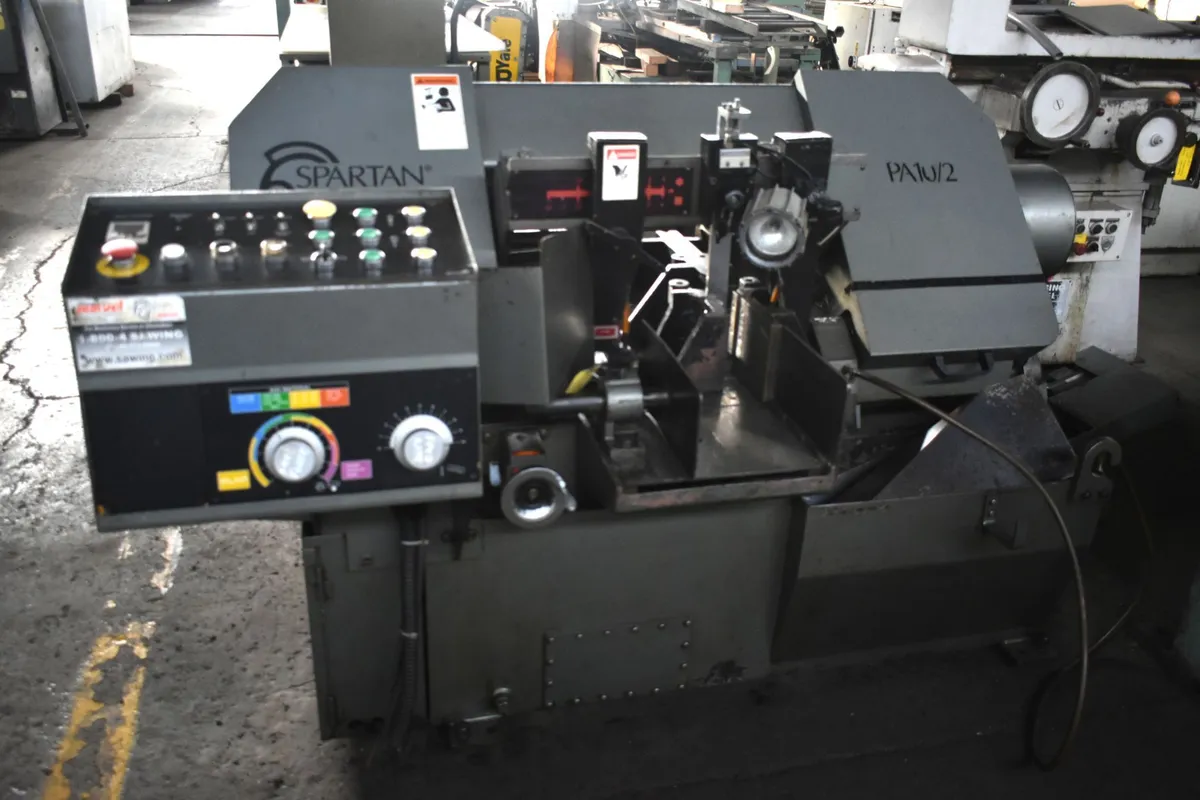

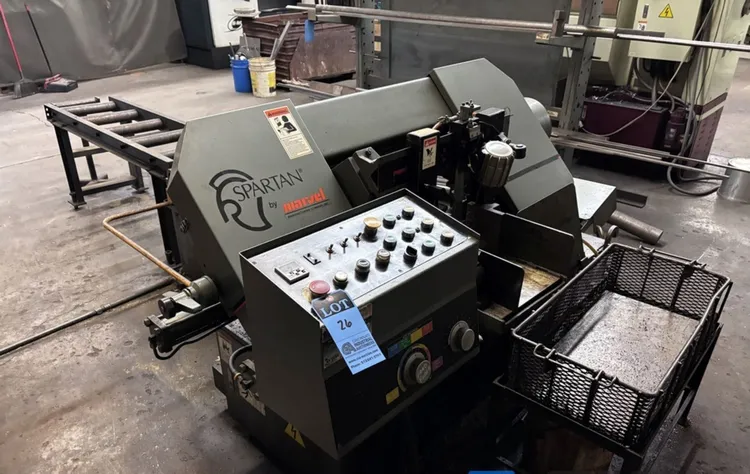

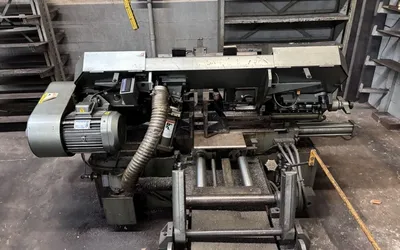

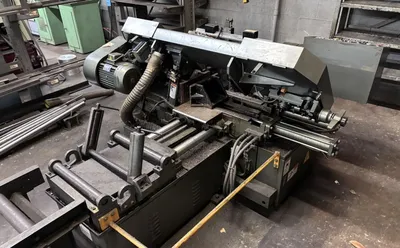

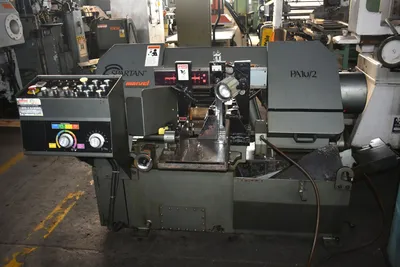

8” x 11.5” MARVEL/SPARTAN “PA10/2” AUTOMATIC HORIZONTAL BAND SAW

8” X 11.5” MARVEL/SPARTAN AUTOMATIC HORIZONTAL BAND SAW

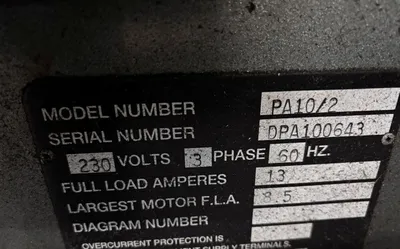

Serial No DPA100643, Model PA10/2

EQUIPPED WITH:

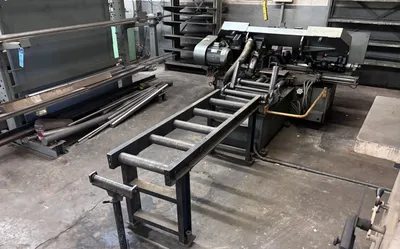

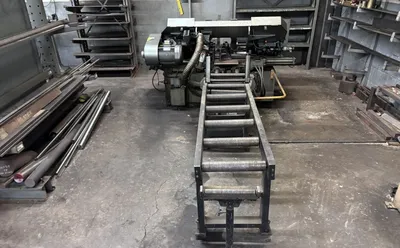

AUTOMATIC Hydraulic-Driven Stock-Feed Table
w/MULTIPLE Indexing

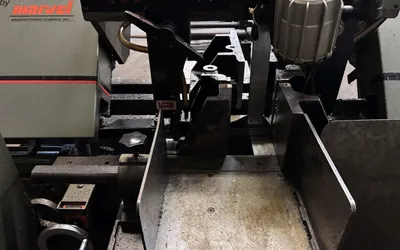

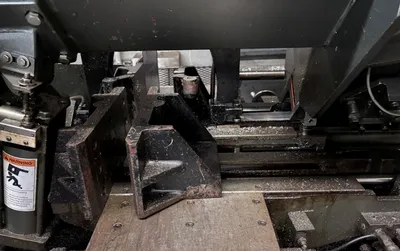

Hydraulic Stock-Feeding and Clamping Vises
Hydraulic Band Saw Up-Feed and Down-Feed
Hydraulic Band Tension

CATALOG SPECIFICATIONS:
Flat Stock Capacity, Maximum 8" x 11.5"
Round Stock Capacity, Maximum 10"
Band Length 11'6"
Band Width 1.25"
Band Thickness .045"
Index Length, Maximum 16"
Band Speeds, Variable 60 to 330 SFPM
Feed Force, Infinitely Variable 0 to 300 LBS
Load Capacity, Maximum 5600 LBS
Blade Motor, Horsepower 5 HP
Hydraulic Motor, Horsepower 1 HP
Overall Dimensions, W x D 77" x 75"
Weight, Approximately 3400 LBS
F.O.B. ON WAY IN
