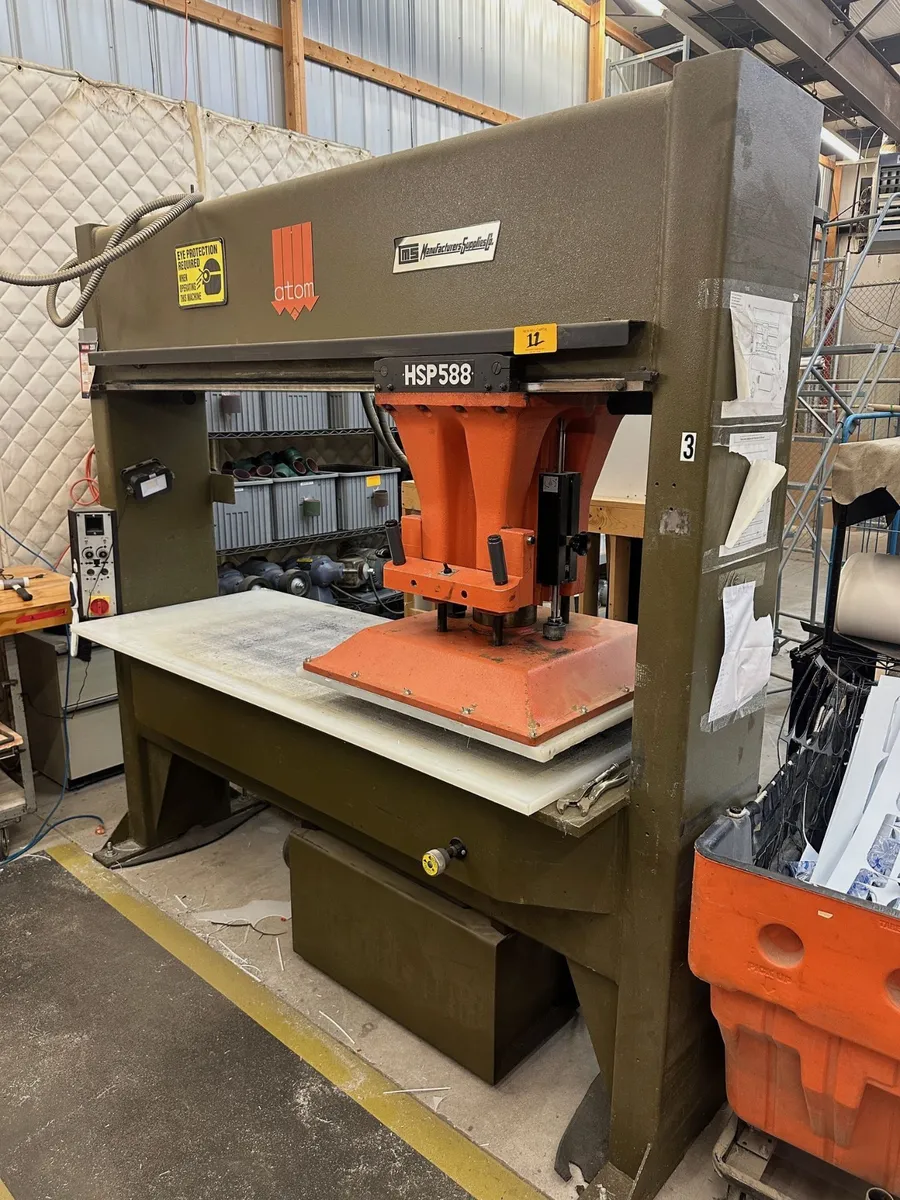

30 TON ATOM MANUFACTURES SUPPLIES "HSP588/10” TRAVELING -HEAD HYDRAULIC DIE CUTTING CLICKER PRESS

30 TON ATOM MANUFACTURERS SUPPLIES TRAVELING-HEAD
HYDRAULIC DIE-CUTTING/CLICKER PRESS

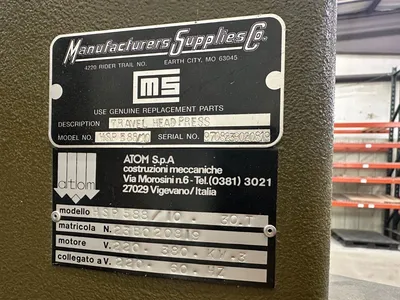

Manufacturers Supplies Serial No 9708239020219,
Atom SPA Serial No 23B020819
Model No HSP588/10

EQUIPPED WITH:
Synchronized Controls
Dynamic Head Breaking System
Removeable Polyurethane Cutting Table

CATALOG SPECIFICATIONS:
Cutting Pressure, Maximum 30 TONS 294 kN
Cutting Head Size, L x W 29.5” x 29.5"
Cutting Head Size, L x W 750 MM x 750 MM
Cutting Working Surface, L x W 78.75" x 29.5"
Cutting Working Surface, L x W 2000 MM x 750 MM
Cutting Stroke, Variable to 6” 150 MM
Daylight Opening 7" 178 MM
Overall Dimensions, L x W 98.4" x 65.3"
Overall Dimensions, L x W 2500 MM x 1660 MM
Overall Height 92.9"
Overall Heihjt 2360 MM
Weight Approximately .......... 4994 LBS 2270 KG

NOTE: This Machine Was Designed To Cut Leather, Textiles,
Plastic, Cardboard, Rubber, ETC..

F.O.B. OUR WAREHOUSE
