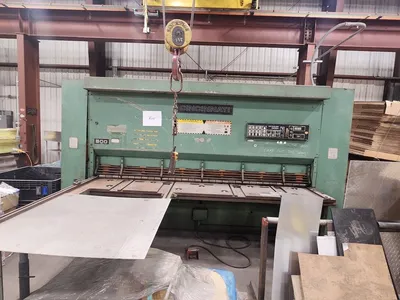

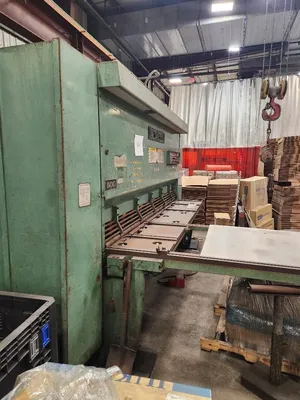

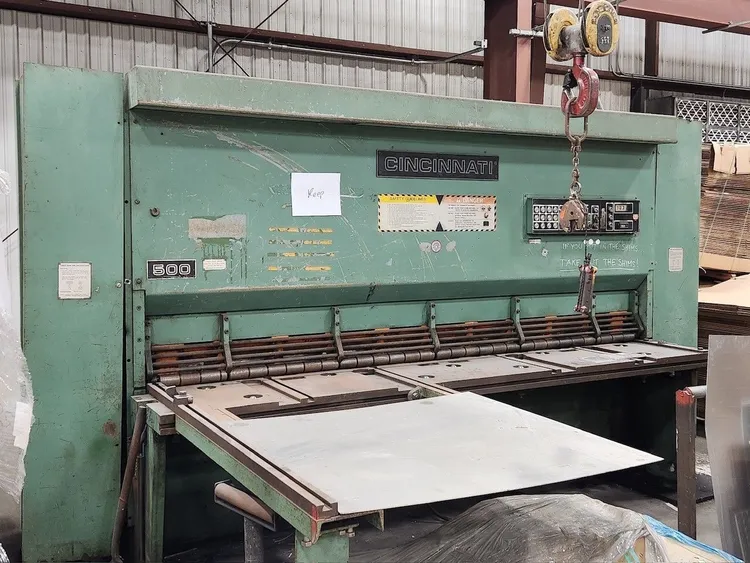

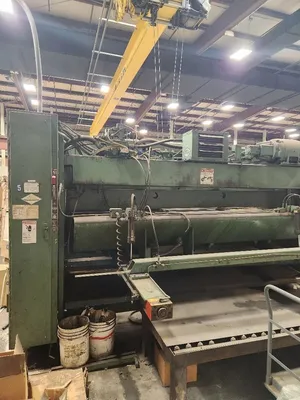

10' X 1/2" CINCINNATI-INC "500X10FT" HYDRAULiC POWER SQUARING SHEAR

10' x 1/2" CINCINNATI-INC HYDRAULIC POWER
SQUARING SHEAR
Serial No 45078, Model 500 x 10 FT

EQUIPPED WITH:

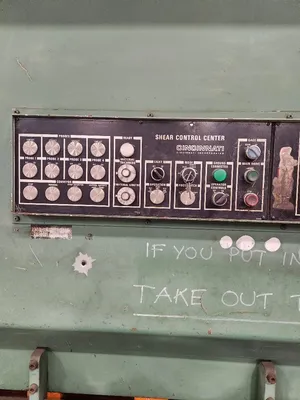

Cincinnati Shear Control Center

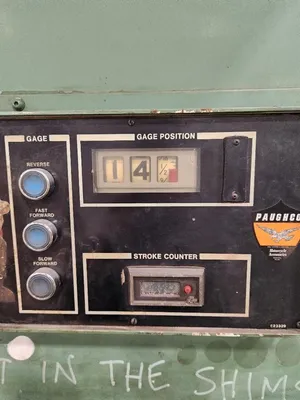

48" Front Operated Hydraulic Swing-Up Back Gauge
(13) Hydraulic Hold-Downs
Squaring Arm - Front Support
Ball Transfers in Table

CATALOG SPECIFICATIONS:
Shearing Capacity, Mild Steel 10' X 1/2"
Material Thickness, Minimum 22 GA
Knife Size 1” x 4” x 124”
Maximum Rake, In/Ft .500 IPF
Total Hold-Down Pressure 20.6 TONS
Distance Under Hold-Down 1"
Strokes Per Minute, Maximum 45 SPM
Strokes Per Minute, Minimum 11 SPM
Ram Speed Up, IN/MIN 219 IPM
Ram Speed Down, Full Load 126 IPM
Back Gauge Speed 60 IPM
Main Motor, Horsepower 25 HP
Electrical System 230-460/3/60
Overall Dimensions, W x D 174" x 106.5"
Overall Height 99"
Weight, Approximately 25,600 LBS
F.O.B. ON WAY IN
