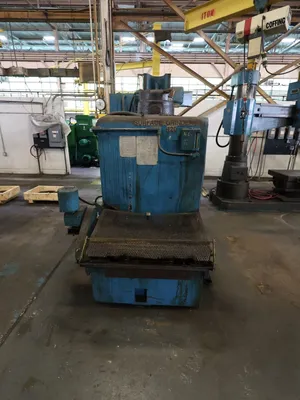

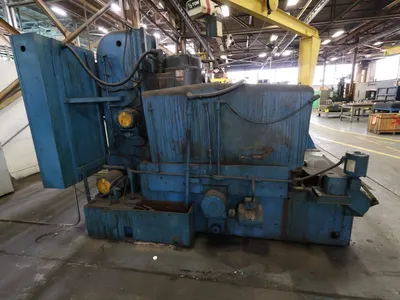

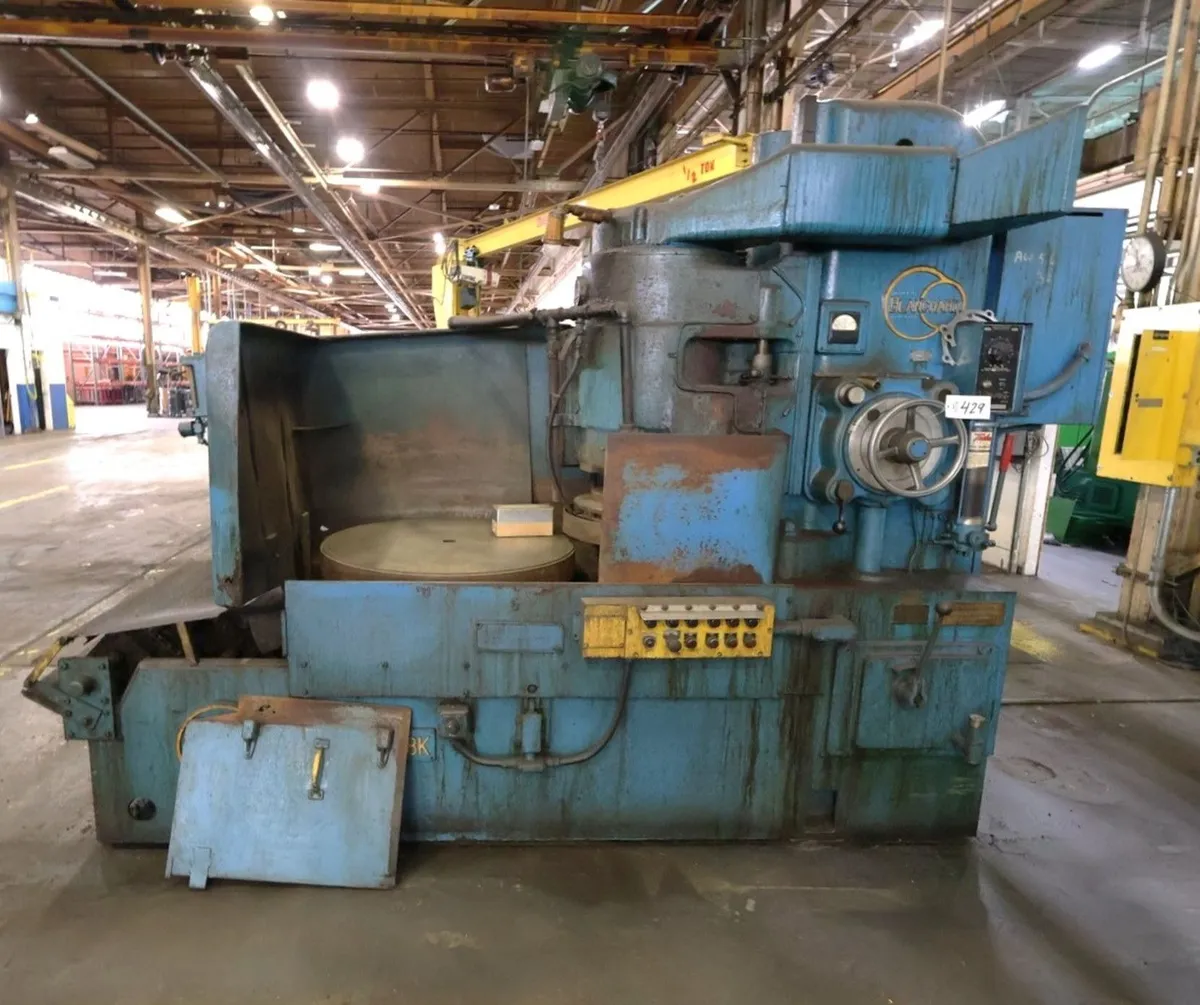

36" BLANCHARD "18K-36" EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER

36" BLANCHARD EXTRA-HIGH VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 11343, Model 18K-36

EQUIPPED WITH:
Vertical-Spindle Machine Design

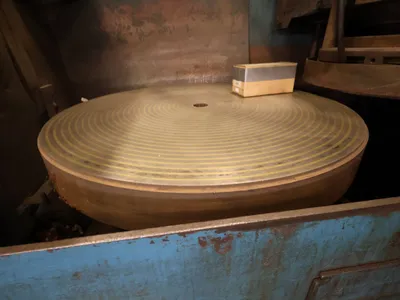

36" Diameter Electro-Magnetic Chuck w/Neutrofier
18” Vertical Range - Percentage Load Meter
Cylindrical Grinding Wheel - Trabon Lube System
Coolant System w/Automatic Conveyor Base For Sludge Removal

CATALOGUE SPECIFICATIONS:
Magnetic Chuck, Diameter 36"
Magnetic Chuck Work Load Capacity 3000 LBS
Grinding Wheel Vertical Range, Maximum 18"
Grinding Wheel Diameter, Maximum 18"
Grinding Wheel Speeds, Range 720 RPM
(6) Chuck Speeds, Range 6 to 33 RPM
Power Down Feeds, Range .004 to .080 IPM
Spindle Motor, Horsepower 40 HP

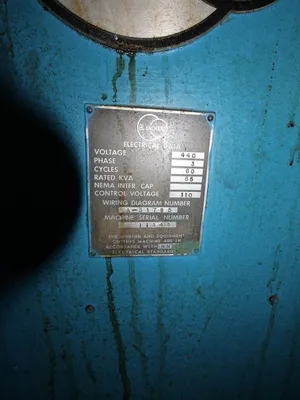

Electrical System 220-440/3/60
Overall Dimensions, W x D 9'4" x 5'5"
Weight, Approximately 12900 LBS

F.O.B. OUR WAREHOUSE
