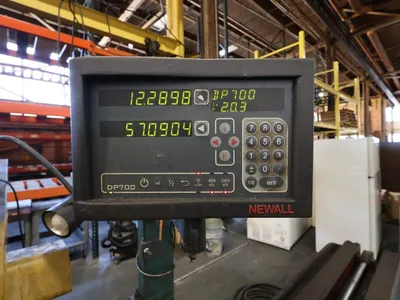

14" X 96" NORTON "LCTU" PLAIN HYDRAULIC CYLINDRICAL GRINDER - Shoulder Grinding Arrangement - Updated U.S. Drives Phoenix Vector Drive Workhead - Newall DP-700 Digital Readouts - Coolant System w/Dynapure Mist Collector

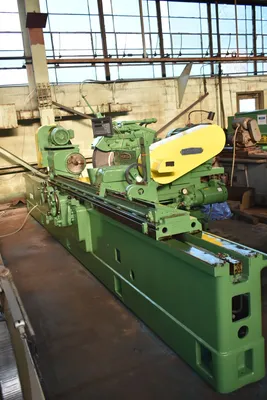

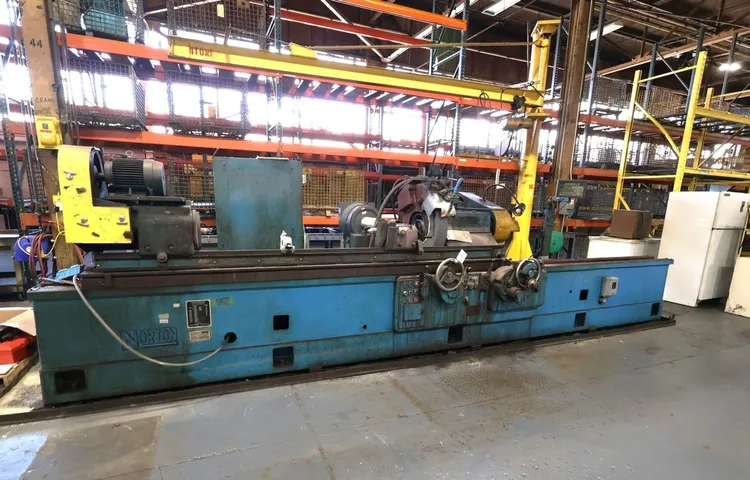

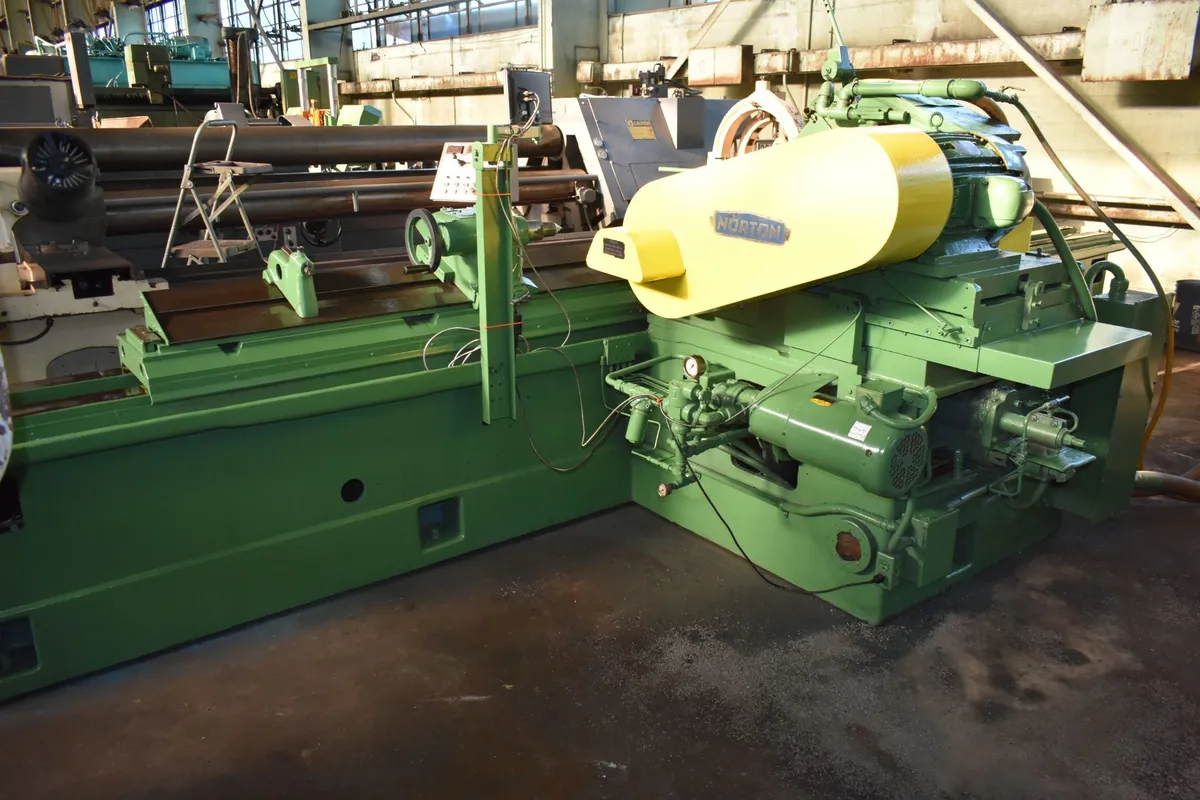

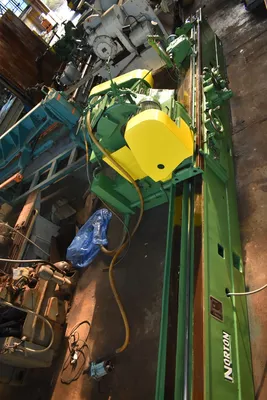

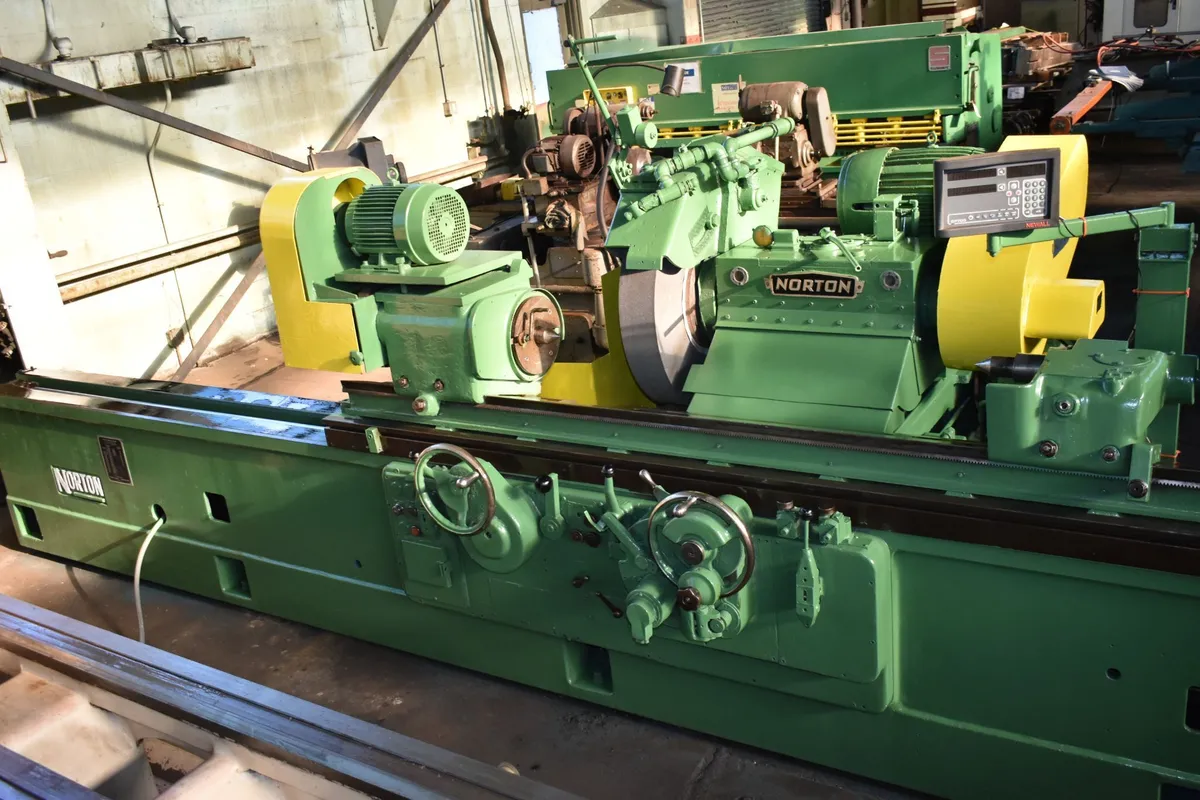

14" x 96" NORTON PLAIN HYDRAULIC CYLINDRICAL GRINDER
Serial No 27529, Model LCTU,
EQUIPPED WITH:

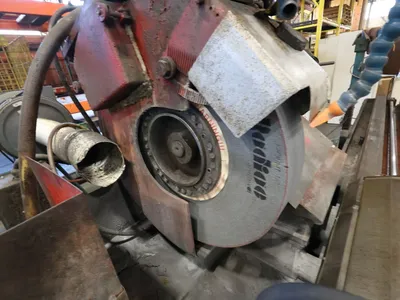

Shoulder Grinding Arrangement
Hydraulic Longitudinal Table Feed

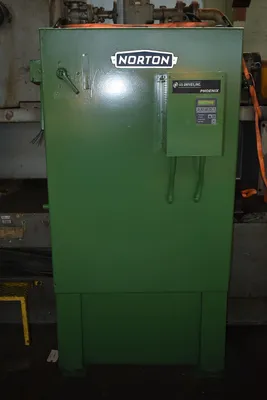

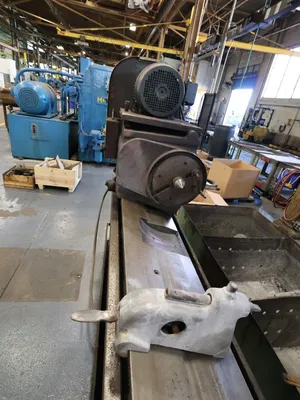

Updated U.S. Drives Phoenix Vector Drive Workhead
Table Mounted Wheel Dresser - Tailstock

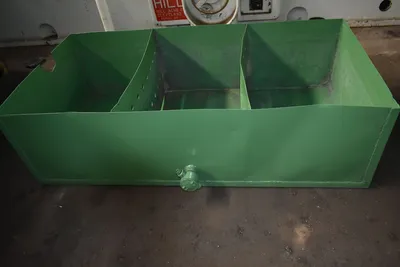

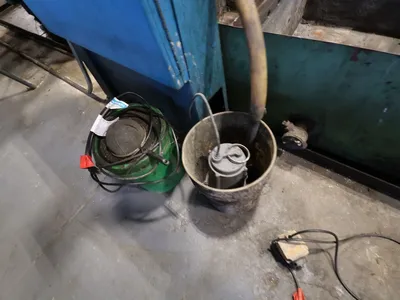

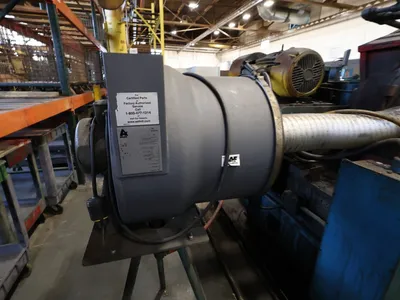

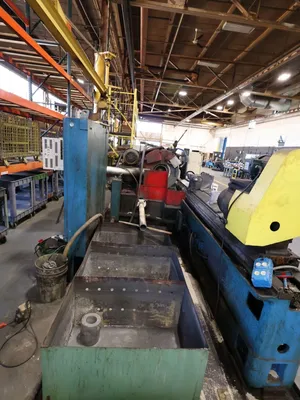

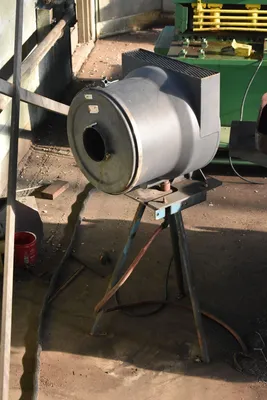

Coolant System w/Dynapure Mist Collector
CATALOGUE SPECIFICATIONS:
Swing Over Table, Maximum 14.5"
Grinding Diameter w/24" Wheel, Maximum 14"
Grinding Diameter w/30" Wheel, Maximum 10"
Distance Between Centers, Nominal 96"
Grinding Wheel Diameter, Standard 30"
Grinding Wheel Width, Standard 3"
Grinding Wheel Hole Diameter 12"
Table Swivel Taper Maximum, Inches 1.25" TPF
Table Swivel Taper Maximum, Degrees 3-DEGREES
Table Longitudinal Feeds, Range 2 to 240 IPM
Headstock Spindle Diameter 4.125"
Headstock Spindle Taper #14 JARNO
Tailstock Spindle Diameter 2.75"
Tailstock Spindle Taper #14 JARNO
Grinding Wheelhead Spindle Motor HP
Workhead Motor, Horsepower HP
Hydraulic Feed Motor, Horsepower HP
Electrical System 220-440/3/60
Floor Space Required, L x D 246" x 124"
Weight, Approximately 17000 LBS
F.O.B. ON WAY IN
