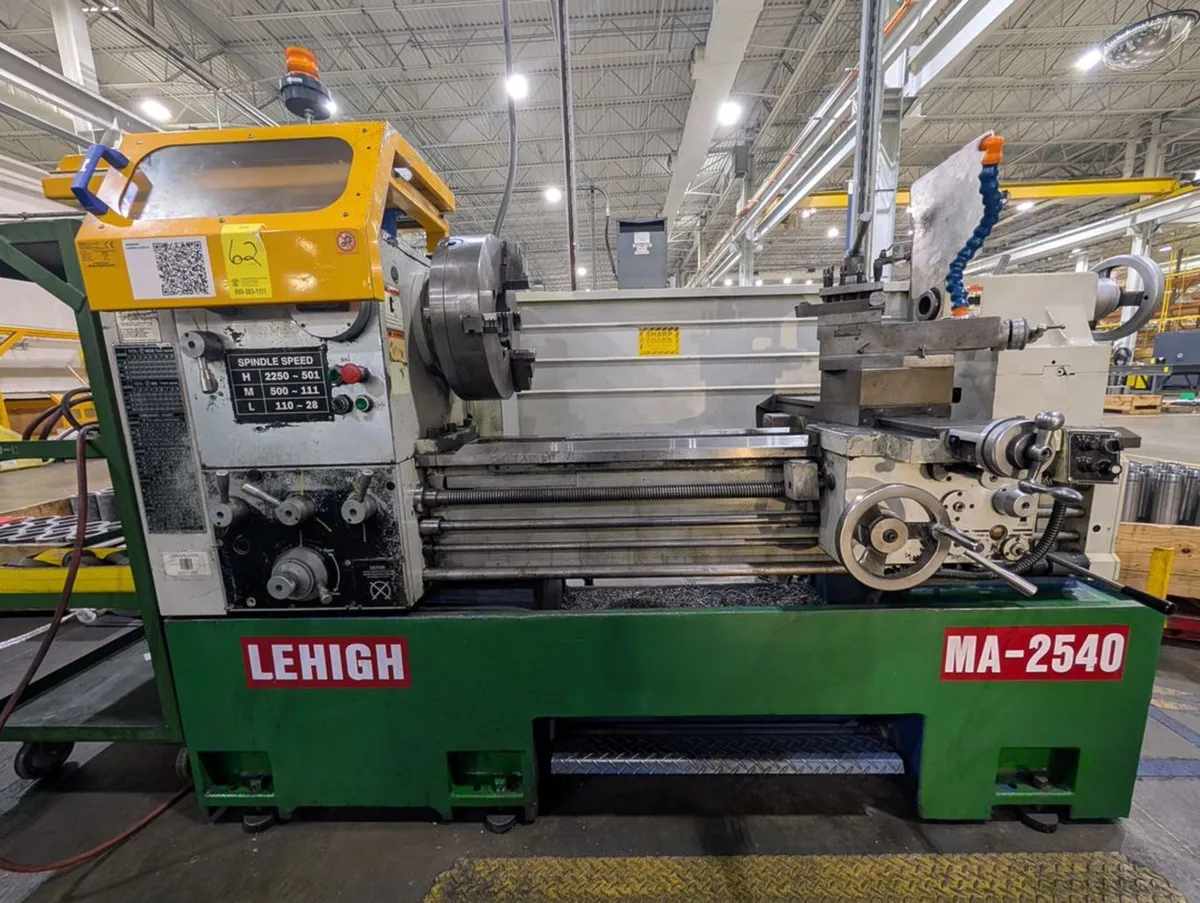

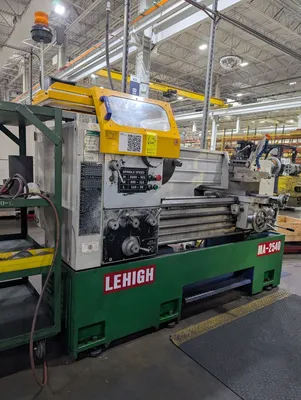

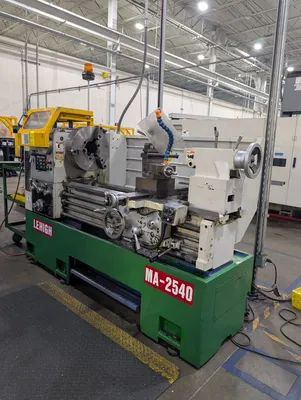

25/32" x 40" LEHIGH "MA-2540" GAP-TYPE ENGINE LATHE

25/32" x 40" LEHIGH GAP-TYPE ENGINE LATHE

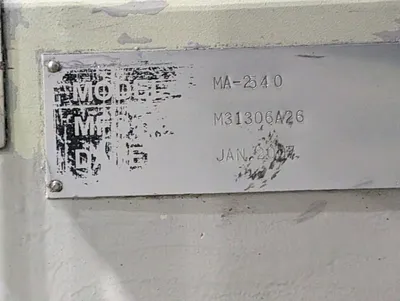

New 2007, Serial No M31306A26, Model MA2540,

EQUIPPED WITH:
Inch-Metric Threading Capabilities
Threading Dial

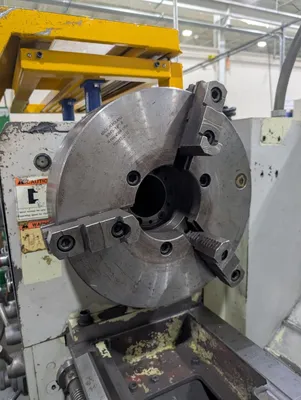

16" 3-Jaw Chuck w/Jaws

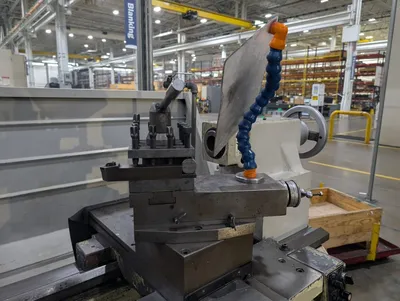

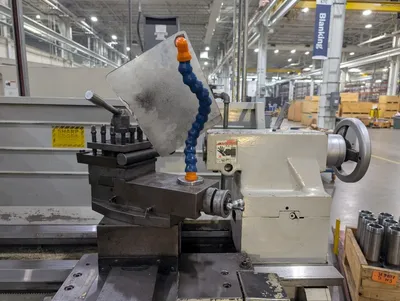

4-Way Toolpost - Hardened & Ground Bed Ways
D1-8 Camlock Spindle Nose

CATALOG SPECIFICATIONS:
Hole Thru Spindle 3-3/8"
Swing Over Bed Ways, Rated 25"
Swing Over Bed Ways, Actual 25"
Swing Thru Gap 32"
Swing Over Carriage 16"
Distance Between Centers 40"
Cross-Slide Cross Travel 12"
Compound Travel 6"

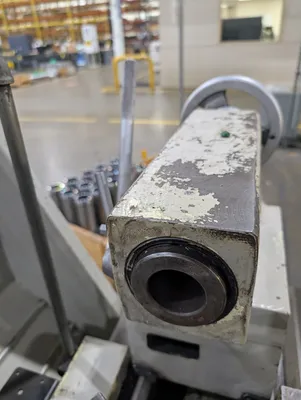

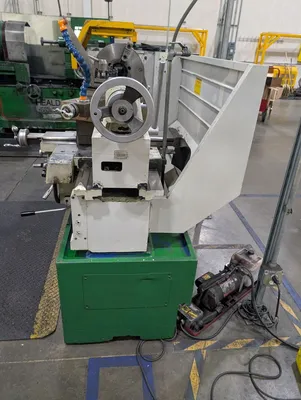

Tailstock, Quill Diameter 2.68"
Tailstock, Quill Travel 6-5/8"
Tailstock, Spindle Taper #5 MT

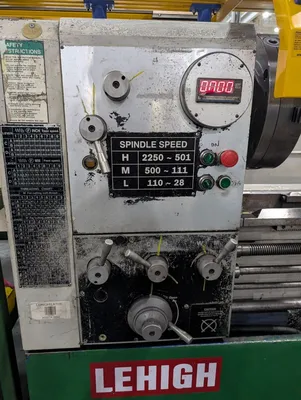

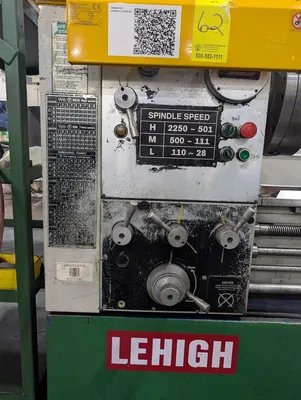

Spindle Speeds, Range 28 to 2250 RPM
(36) Thread Changes, Range 4 to 56 TPI
(65) Metric Thread Changes, Range .5 to 7 MM
(22) Modular Threads, Range .25 to 3.5 MM
(35) Longitudinal Feeds, Range .0024 to .035 IPR
(35) Cross Feeds, Range .0012 to .018 IPR
(36) Diametral Threads, Range 8 to 112 DP
Motor Horsepower 10 HP
Overall Dimensions, L x W 8'4" x 4'6"
Overall Height 5'2"
Weight Approximately 5300 LBS

F.O.B. OUR WAREHOUSE
