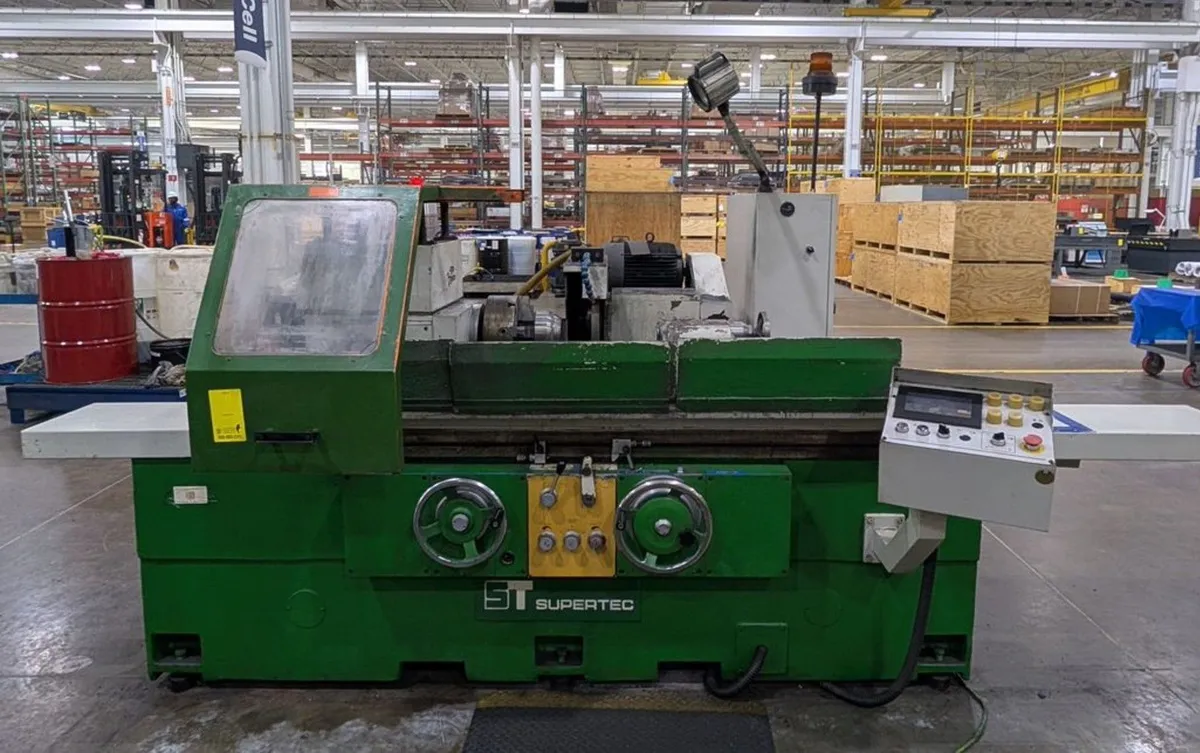

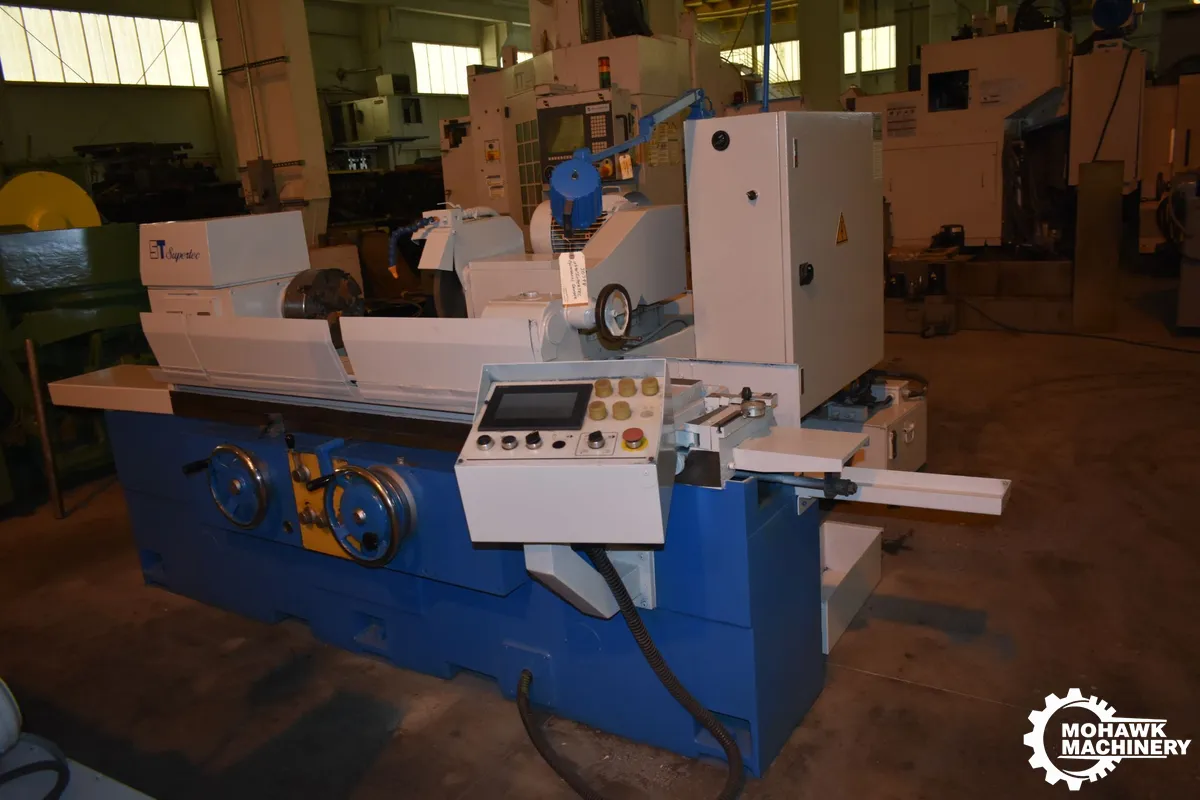

12" x 40" SUPERTEC "G32-100CII" UNIVERSAL CYLINDRICAL GRINDER

12.6" X 40" SUPERTEC UNIVERSAL CYLINDRICAL GRINDER
Serial No. CD06010, Model G32P-100CII

EQUIPPED WITH:
Programmable Automatic Infeed Capabilities
Plunge Grinding
Automatic Incremental Wheelhead Infeed
Combination Live/Dead Spindle Vari-Speed Workhead
Heavy-Ribbed Box-Type Mehanite Caste Base
Automatic Lubrication System
Coolant Filtration System (Tank & Pump)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum: 12.6"
Grinding Diameter, Maximum: 12"
Grinding Length, Maximum: 40"
Distance Between Centers: 40"
Weight Capacity Between Centers: 330 LBS
Wheelhead Infeed Travel: 9.6"
Wheelhead Top-Slide Travel: 7"
Wheelhead Grinding Wheel Travel 7.87"
Grinding Wheel, Standard Diameter: 16"
Grinding Wheel, Width: 2"
Grinding Wheel, Hole Diameter: 5"
Grinding Wheel Speeds: 1650 RPM
Workhead Spindle Speeds: 30 to 350 RPM
Longitudinal Table Feeds, Infinite: 1.2 to 275 IPM
Wheelhead Incremental Feed, Range: 0001 to .0999"
Plunge Grinding Feed Rate, Range .0001 to .04 IPM
Wheelhead Swivel Angle, Range: +/- 30-DEGREES
Wheelhead Rapid Infeed And Retract 1.77"
Table Swivel Angle Range: +/- 7-DEGREES
Workhead Swivel Angle, Range: 90-DEGREES
Wheelhead Motor, Horsepower 7.5 HP
Workhead Motor, Horsepower 2 HP
Workhead & Tailstock Centers 4 MT
Tailstock Quill Travel 1"
Hydraulic Motor, Horsepower 2 HP
Electrical System: 230/3/60
Overall Height: 79"
Weight, Approximately: 10360 LBS

F.O.B. OUR WAREHOUSE
